Renewable 100W 200W 300W BIPV Solar Panel Battery Energy Storage Power System For Home Carport

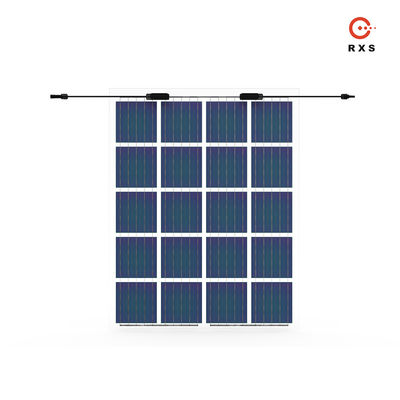

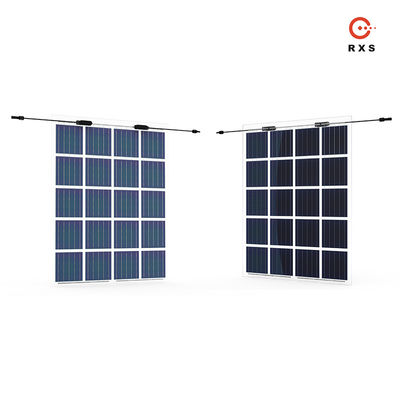

BIPV RXJJ--105A Bifacial PV Components
Monocrystalline Laminated Glass Module RXJJ--105A
Performance Parameters
| Model | RXJJ--105A |
| Maximum power at STC (Pm/Wp) | 105 |
| Maximum power voltage (Vmp/V) | 11.0 |
| Maximum power current (lmp/V) | 9.55 |
| Open circuit voltage (Voc/V) | 13.0 |
| Short circuit current (Isc/A) | 10.51 |
| Transparent (%) | 25.5 |
| Working temperature (℃) | -40~ +85 |
| Fault structure (mm) | 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass |
| Cable | 4m㎡/300mm |
| Dimension (mm) | 930mm*730mm |
| Weight (kg) | 12.5kg |
| Wind loads resistance | 2.4KN/㎡ |
| Cells No. | 20 (5*4) |
|
*STC (AM1.5,1000w/㎡,cell temperature 25℃)
30-year linear power warranty |
|
Application :Commercial, Home, Solar Home System, Solar System Solar Street Light, solar panel system
Junction box :IP65 Rated, IP67 TUV/UL certificated, MC4 Connector, IP 67, IP65 Waterproof
solar cell :Mono 156*156 Cell, 5BB Mono156*156, Mono 156.75*156.75mm, Monocrystalline/Polycrystalline, Mono Crystalline
Material :Monocrystalline Silicon
