Roof Or Ground BIPV Solar Panel High Efficiency 330 Watt
10000watt
MOQ
negotiation
Price
Roof Or Ground BIPV Solar Panel High Efficiency 330 Watt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE\IEC\TUV\ISO14001
Model Number: MBG330
High Light:

Ground BIPV Solar Panel

,

330W BIPV Solar Panel

,

1500DC Bipv Solar Modules

Payment & Shipping Terms
Packaging Details: In pallet
Delivery Time: 7-10 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5GW/YEAR
Specifications
Type: Photovoltaic Solar Cell Panels,Portable Roof Mounted PV Module Solar Panels For Home System Use
Name: 340W Poly Crystalline Solar Panel
Installation Site: Roof Or Ground Solar Panels,Open Ground And Flat Roof
Module Efficient(%): 17
Module Dimension (L*W*H)(mm): 2015*996*35
Cable: 4mm2 Negetive300mm, Positive300mm
Module Working Temperature Range (℃): -40~+85
Maximum System Voltage(V): 1500DC
System Maximum Protection Current(A): 15
Maximum Wind Pressure/maximum Snow Pressure (Pa): 2400/5400
Product Description

Rixin Hot sale BIPV Solar Panel 330Watt Solar Plate High Efficiency Solar Panels China Factory Supplier Price



Characteristics solar panel

1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)

2. High efficiency crystalline silicon solar cells

3. High transmission Iow iron tempered glass, strong mechanical resistance

4. Anti-ageing EVA and excellent anti-climate back sheet

5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.

6. Standard waterproof junction box

7. High endurance to different weather

8. Good and friendly package with less transportation and storage space.

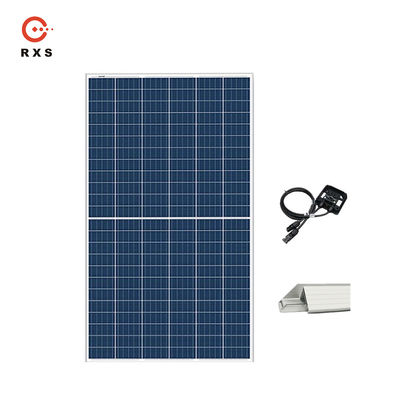

Roof Or Ground BIPV Solar Panel High Efficiency 330 Watt 0

Roof Or Ground BIPV Solar Panel High Efficiency 330 Watt 1Roof Or Ground BIPV Solar Panel High Efficiency 330 Watt 2

MBG330~340
Electrical performance parameters
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type MDG330 MDG335 MDG340
Maximum power(Pm/Wp) 330 335 340
Maximum power voltage(Vmp/V) 37.0 37.1 37.2
Maximum power current(lmp/V) 8.90 9.03 9.14
Open circuit voltage(Voc/V) 45.0 45.1 45.2
Short circuit current(Isc/A) 9.98 10.08 10.18
Module efficient(%) 16.5 16.7 17
NOCT(℃) 45±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 2015*996*35
Module weight (kg) 28
Cable 4mm2 negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell size (mm) Poly half cell 144(6*12*2)
Packing 30pcs/pallet
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 15
Maximum wind pressure/maximum snow pressure (Pa) 2400/5400






RFQ

Q1 : What about delivery time?

A : Goods : 10-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

      30-year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.





Self-branded

Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.
