Solar Home System Monocrystalline PV Module 315w Aluminium Frame
Solar Home System Monocrystalline PV Module 315w Aluminium Frame
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE TUV
Model Number: DDP315(K)
High Light:

Monocrystalline PV Module 315w


Aluminium Frame Monocrystalline PV Module


Oem Monocrystalline Pv Cells

Payment & Shipping Terms
Packaging Details: cartons in pallets
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3GW/YEAR
Product Name: Mono Solar Panels
Warranty: 25 Years Output Power Guarantee
Junction Box: IP65 Waterproof
Connector: MC4 Compatible Connector
Frame: Anodized Aluminium Alloy/Black
Max. Power: 315W
Oem Order: Acceptable
Installation Site: Roof Or Ground Solar Panels
Color: Black Solar Panels
Application: Home,Commercial,Industrial,Solar Home System,Solar System Or Solar Pant
Material: Monocrystalline Silicon
Solar Cell: Mono 166*166mm
Number Of Cells: 108(9*12)pcs
Power Tolerance: 0~+5W
Glass: 3.2mm Tempered Low Iron
Oem: Acceptable,Customers' Label
Cable: 4mm2
Product Description

Rixin All Black Monocrystalline PV Module 315w Aluminium Frame Solar Home System Solar Pant

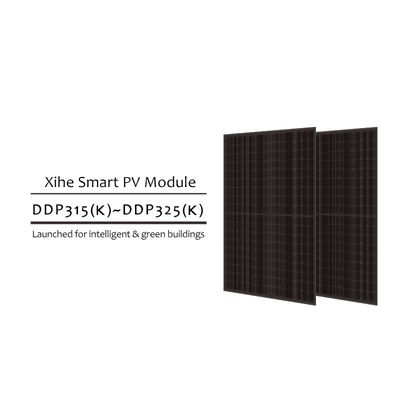

BIPV Mono Bifacial Double Glass Module DDP315~325(K)
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type DDP315(K) DDP320(K) DDP325(K)
Maximum power(Pm/Wp) 315 320 325
Maximum power voltage(Vmp/V) 29.3 29.4 29.5
Maximum power current(lmp/V) 10.75 10.88 11.00
Open circuit voltage(Voc/V) 35.9 36 36.1
Short circuit current(Isc/A) 11.54 11.60 11.66
Module efficient(%) 18.8 19.1 19.4
Module working temperature range (℃) 45±2℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 1606*1042*30
Module weight (kg) 20
Cable 4m㎡ negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell Nos & array Mono 108pcs(6*9*2)
Packing 30pcs/pallet
Quality parameters
NOCT(℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 20
Front/rear static loads(Pa) 2400/3600
BIPV Mono Bifacial Double Glass Module DDP315~325

Solar Home System Monocrystalline PV Module 315w Aluminium Frame 0

Solar Home System Monocrystalline PV Module 315w Aluminium Frame 1

Solar Home System Monocrystalline PV Module 315w Aluminium Frame 2


Solar Home System Monocrystalline PV Module 315w Aluminium Frame 3
Solar Home System Monocrystalline PV Module 315w Aluminium Frame 4
Solar Home System Monocrystalline PV Module 315w Aluminium Frame 5

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.

Formed in 2001, the company is headquartered in Wuhan, China and has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.

With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.

We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe, America and other Asian countries with safety certificates.

With many years development as a trustworthy manufacturer, Rixin Technology’s products enjoy high reputation in the world market.We have attended many exibitions each year.

Our value is coordination, innovation, sincerty, service. We will make unremitting efforts to be your best partner on your path of the photovoltaic weath.

Solar Home System Monocrystalline PV Module 315w Aluminium Frame 6




Q1 : What about delivery time?

A : Goods : 10-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

     30-year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
