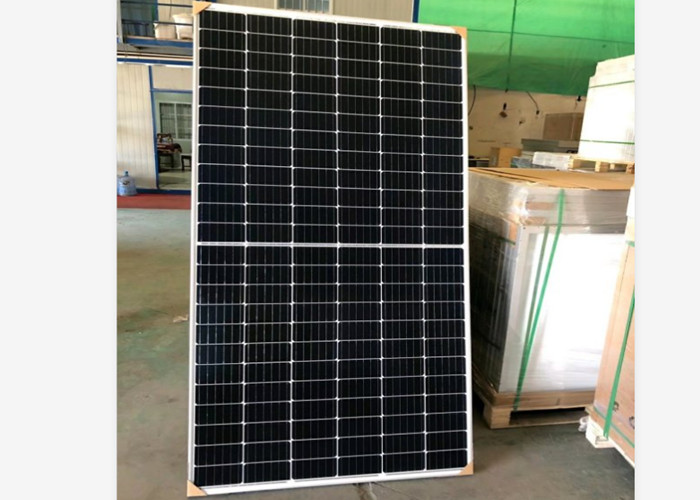

450W Crystalline PV Modules
620pcs/HQ
MOQ
Negotiable
Price
450W Crystalline PV Modules
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: LR4-72HBD
High Light:

450W Crystalline PV Modules

,

20.7% Crystalline PV Modules

,

450W multi crystalline solar panels

Payment & Shipping Terms
Packaging Details: 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 3GW/YEAR
Specifications
Power: 450 Watts
Dimension: 2094*1038*35mm
Efficiency: 20.7%
Color: Black
Name: 450 Watts Double Glassl Crystalline PV Modules
Material: Glass + Cells
Product Description



 450 Watts Double Glassl Crystalline PV Modules







FEATURES Of 450 Watts Double Glassl Crystalline PV Modules :



144 half-cells (158.75mm) connected in series Positive power tolerance of 0~3% improves system performance Industry-leading module efficiency: maximum efficiency of 20.1% Tested up to 5400Pa for maximum load resistance Verified resistance against PID effects Progressive Power Warranty guarantees 80.7% of rated power at 25 years Manufactured globally with world-class quality standards Strict salt spray and ammonia corrosion test by TUVsud.



Advantage of 450 Watts Double Glassl Crystalline PV Modules:



1, Long Life time: Solar Power has a 25 year warranty

2,Sustainable Energy: The sun is an infinite nature soure of energy. Unlike fossile fuels it will never run out.

3,Save your money: After the initial investment has been recovered, the energy from the sun is practically free.

4,Environment friendly: solar energy is clean,renewable(unlike gas,oil and coat), sustainable and slow/stop global warming helping to protect the environment







Electrical performance parameters of 450 Watts Double Glassl Crystalline PV Modules

445Watts Half-cut Bifacial Monocrystalline Modules
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model LR4-72HBD
Maximum power (Pm/Wp) 450
Maximum power voltage (Vmp/V) 41.2
Maximum power current (Imp/A) 12.96
Open circuit voltage (Voc/V) 49.6
Short circuit current (Isc/A) 11.58
Module efficiency (%) 20.7



General performance parameters

Mechanical performance parameters
Cell Nos & array 144(6*24)
Diode Nos 3
Cells dimension(mm) 158.75*158.75 mono
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 23
Module dimension (L*W*H) (mm) 2094*1038*35mm
Packing 30pcs/carton, 150pcs/20GP, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.284%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.35%/℃



Drawing(mm) of 450 Watts Double Glassl Crystalline PV Modules





450W Crystalline PV Modules 0



Quality Warranty of 450 Watts Double Glassl Crystalline PV Modules

10-year materials&workmanship warranty

30-year linear power warranty



450W Crystalline PV Modules 1
