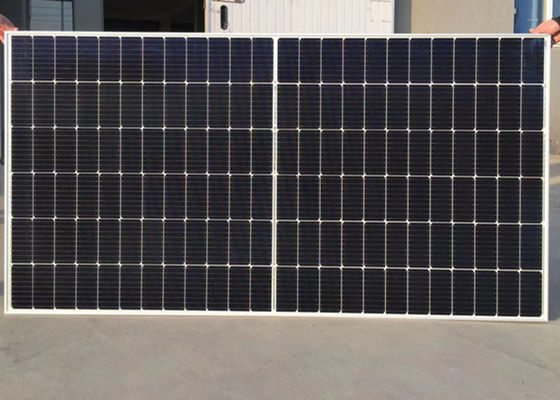

Transparent BIPV Solar panel 440W 445W 450W 455W Double Glass Bifacial Solar Panel Plate for Agricultural Greenhouse
Construction & Transparency for BIPV:
Module Type: Glass+PVB+Solar Cell+PVB+Glass
Transmittance: 5%, 10% , 20%, 25%, 30%,35%,40%,50%
Performance parameters
| High Transparent 240W Photovaltic Solar Panels Bifacial High Capacity | ||
| Model | DDY445 | |
|
Electrical parameters |
maximum power Pm (Wp) * | 445 |
| power tolerance (%) | ± 5 | |
| maximum power voltage Vmp (V) * | 41.2 | |
| maximum power current Imp (A) * | 10.8 | |
| open circuit voltage Voc (V) * | 49.4 | |
| short circuit current Isc (A) * | 11.52 | |
| maximum system voltage (V) | 1500 | |
| Efficiency(%) | 20.2 | |
| working temperature (℃) | -40~85℃ | |
| temperature coefficient of Pm Tk (Pm) | -0.350%/K | |
| temperature coefficient of Voc Tk (Voc) | -0.284%/K | |
| temperature coefficient of Isc Tk (Isc) | +0.05%/K | |
|
Mechanical parameters |
fault structure (mm) | 2mm tempered glass + 0.76PVB + mono bifacial cells + 0.76PVB + 2mm tempered glass+ Anodized Alluminum Alloy Frame |
| cable | 4mm²/300mm | |
| product dimension | 2094mm*1038*35mm | |
| product weight | 27.5kg | |
| wind loads resistance | 2.4KN/m² | |
| Cells No. | 144(6*24) | |
BIPV is a highly customized product , and can be used at any site with any size and shape, so how to select the BIPV you need , please check the information below :
|
1. The size of BIPV
|
Based on your installation site, so please check
|
|
2. The thickness of BIPV
|
The glass thickness 3.2/4/5/6/8/10mm
|
|
3. The Transmittance of BIPV
|
Need more sunlight--high transmittance / Less sunlight--low transmittance
|
1)Performance: High output and efficiency even under low light conditions
2)Versatility: Salt misr corrosion tested, perfect for harsh climatic conditions
3)Reliability: stringent quality control testing and strict selection of materials
4) Innovation: constantly working to provide the next breakthroughin solar technology
Applications:
Building fence, building shelter, rooftop, greenhouse, curtin wall and so on.
