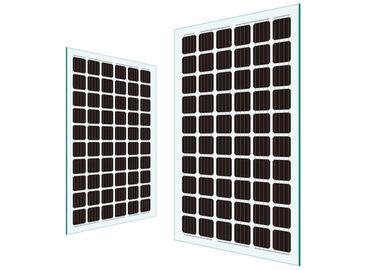

High Efficiency BIPV Solar Panels 72 Cells For Off Grid Solar System
What's BIPV?
Acronym of BIPV(Building Integrated Photovoltaics) refers to photovoltaic systems integrated with an object's building phase. It means that they are built/constructed along with an object. They are also planned together with the object. Yet, they could be built later on. Due to specific task , cooperation of many different experts, such as architects, civil engineers and PV system designers, is necessary. According to how and where such systems are built, whether into the facade or in the roof, the following BIPV systems are recognized:
Facade or roof systems-added after the building was built
Facade intergrated photovoltaic systems - built along with an object
Roof- Integrated photovoltaic systems -built along with an object
"Shadow voltaic" -PV systems also used as shadowing systems, built along with an object or added later.

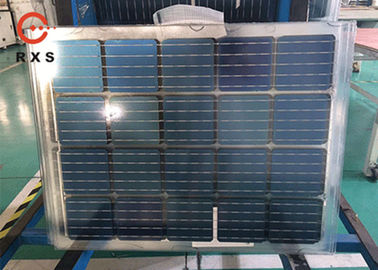

Module Type: Glass+PVB+Solar Cell+PVB+Glass
Transmittance: 5%, 10% , 20%, 25%, 30%,35%,40%,50%
BIPV is a highly customized product , and can be used at any site with any size and shape, so how to select the BIPV you need , please check the information below :
1. The size of BIPV
|
Based on your installation site, so please check
|
2. The thickness of BIPV
|
The glass thickness 3.2/4/5/6/8/10mm
|
3. The Transmittance of BIPV
|
Need more sunlight--high transmittance / Less sunlight--low transmittance
|
Application and Advantages:
> Architectural aesthetics
Through design, junction boxes, cable hidden in the curtain wall structure, does not affect the exterior of the building , to achieve the purpose of building the perfect combination.
> Architectural lighting
By adjusting the arrangement of cells to reach a specific transmission tare, to comply with the requirements of architectural glazing
> Safety performance
Made of two or more sheets of tempered glass and photovoltaic PVB , with a excellent impact resistance , durability , light transmittance and security .
> Convenient installation
BIPV is double glass components and glass curtain wall closely integrated . Installation techniques and methods are the same as the ordinary glass curtain wall, it can fully meet the convenient installation requirements .
