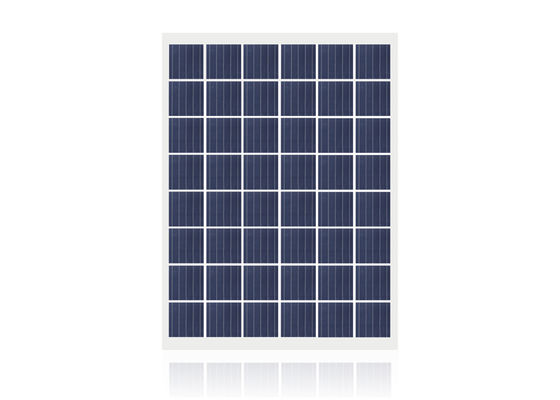

polycrystalline laminated glass solar panel / BIPV / 200W
The main characteristics are high strengthen and strike resistance, suitable for most buildings, such as flat rooftop, pitched rooftop, curtain wall, ceiling. Have a better light transmittance effect when used for curtain wall and ceiling, and could greatly improve the indoor lighting.
1. Solar power generation, supply clean energy for buildings.
2. Completely according with national standard for building materials.
3. Higher strength, wind resistance, strike resistance, safer.
4. Sound insulation, heat insulation, effectively resist outside environment intrusion.
5. Intelligentized & humanized, regulating light, comfortable and convenient.
6. Provide a new aesthetics decoration effect for modern construction.
7. Integrating multiple functions, energy conservation and cost reduction.
|polycrystalline laminated glass solar panel / BIPV / 200W|
|Model||RXJJI - MBN200|
|maximum power Pm (Wp) *||200|
|power tolerance (%)||± 5|
|maximum power voltage Vmp (V) *||24.78|
|maximum power current Imp (A) *||8.07|
|open circuit voltage Voc (V) *||30.48|
|short circuit current Isc (A) *||8.72|
|maximum system voltage (V)||1000|
|working temperature (℃)||-40~85℃|
|temperature coefficient of Pm Tk (Pm)||-0.31%/K|
|temperature coefficient of Voc Tk (Voc)||-0.41%/K|
|temperature coefficient of Isc Tk (Isc)||+0.05%/K|
|fault structure (mm)||5mm tempered glass + 0.76PVB + poly cells + 0.76PVB + 5mm tempered glass|
|wind loads resistance||2.4KN/m²|
30-year power output guarantee
50-year operation lifetime
