340W 24V SOLAR CELL MODULE , ANTI REFLECTING MONOCRYSTALLINE PHOTOVOLTAIC MODULE
858PCS/HQ
MOQ
Negotiable
Price
340W 24V SOLAR CELL MODULE , ANTI REFLECTING MONOCRYSTALLINE PHOTOVOLTAIC MODULE
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DBG340
High Light:

monocrystalline photovoltaic module

,

solar cell module

Payment & Shipping Terms
Packaging Details: 25pcs/carton, 22cartons/40HQ,550pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3GW/year
Specifications
Power: 340W
Dimension: 1956*992*40mm
Efficiency: 17.40%
Life Span: 25 Years
Product Description

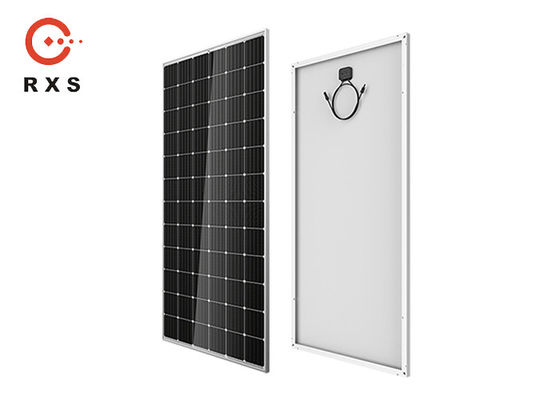

            monocrystalline framed solar panel / 340W / 72cells / 24V


Monocrystalline Solar Panel



solar panel is in high efficiency per space and can withstanding heavy snow and strong wind loads.

Compared with traditional non-flexible plates, the size is smaller and the weight is lighter,

Monocrystalline silicon technology in high performance.

It is waterproof and portable.

It can provides exceptional panel rigidity at reasonable price. .



Use for:

Prevent loss of electricity and solve the problem that the battery cannot be ignited

Lasting life increase mileage

Powering vehicle appliances

Home solar power system

RV electricity (induction cookers, water heaters, rice cookers, air conditioners)

Other high-tech industries





Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.


Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBG340
Maximum power (Pm/Wp) 340
Maximum power voltage (Vmp/V) 38.37
Maximum power current (Imp/A) 8.86
Open circuit voltage (Voc/V) 46.80
Short circuit current (Isc/A) 9.58
Module efficiency (%) 17.4
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1956*992*40/45
Cell dimension(mm) 156.75*156.75 mono
Module weight (kg) 23
Cable cable section-4mm2 length-900mm
Cell Nos & array 72(6*12)
Packing 25/23pcs/pallet, 22pallets/40HQ, 550/506pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free



Our Services
1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.



Drawing(mm)
340W 24V SOLAR CELL MODULE , ANTI REFLECTING MONOCRYSTALLINE PHOTOVOLTAIC MODULE 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

340W 24V SOLAR CELL MODULE , ANTI REFLECTING MONOCRYSTALLINE PHOTOVOLTAIC MODULE 1340W 24V SOLAR CELL MODULE , ANTI REFLECTING MONOCRYSTALLINE PHOTOVOLTAIC MODULE 2
