High Efficiency High Power Solar Panels Solar System Residential Solar Power Panel

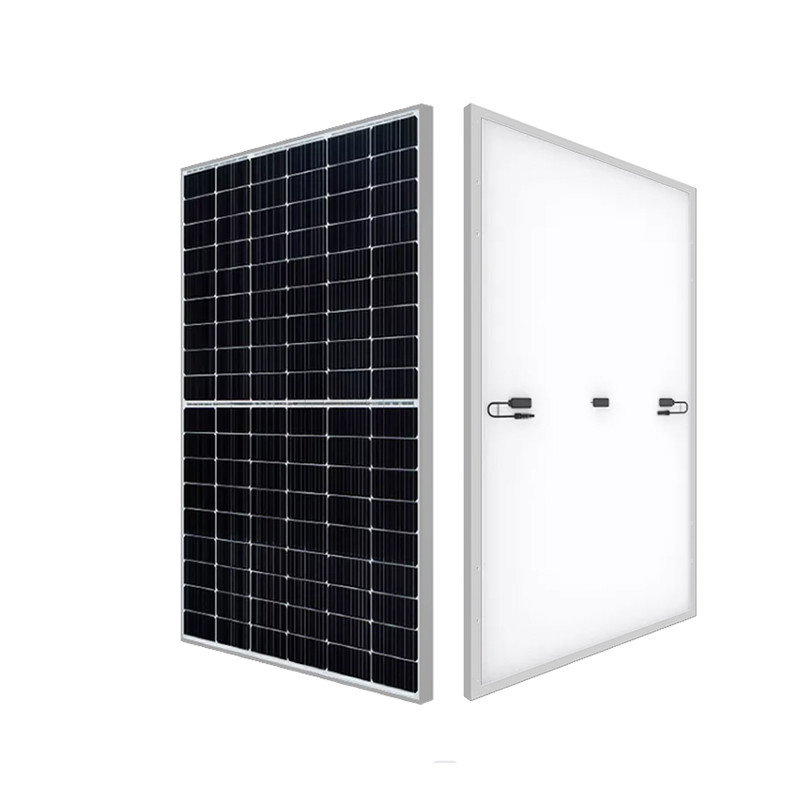

Mono solar Module DBP400
|Maximum power voltage(Vmp/V)||31.3||31.54||31.78||32.02|
|Maximum power current(lmp/V)||12.78||12.84||12.9||12.96|
|Open circuit voltage(Voc/V)||37.54||37.79||38.03||38.27|
|Short circuit current(Isc/A)||13.52||13.58||13.64||13.7|
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
|Cell Nos & array||Mono half-cut cells 108 pcs|
|Cell size (mm)||182*91|
|Glass thickness (mm)||3.2|
|Frame||Anodized alaminum alloy|
|Cable||4m㎡ negetive300mm, positive300mm|
|Module weight (kg)||24|
|Module dimension (L*W*H)(mm)||1722*1134*35mm|
|Module working temperature range (℃)||-40~ +85|
|Maximum system voltage(V)||DC1500|
|System maximum protection current(A)||25|
|Front/rear static loads(Pa)||2400 / 5400|
|Junction box/Connector||Ip68,split / MC4 compatible|
|Temperature coefficient of Voc||-0.275%/℃|
|Temperature coefficient of Isc||+0.05%/℃|
|Temperature coefficient of Pm||-0.35%/℃|
|Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5|
Q1 : What about delivery time?
A : Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
30-year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 21 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

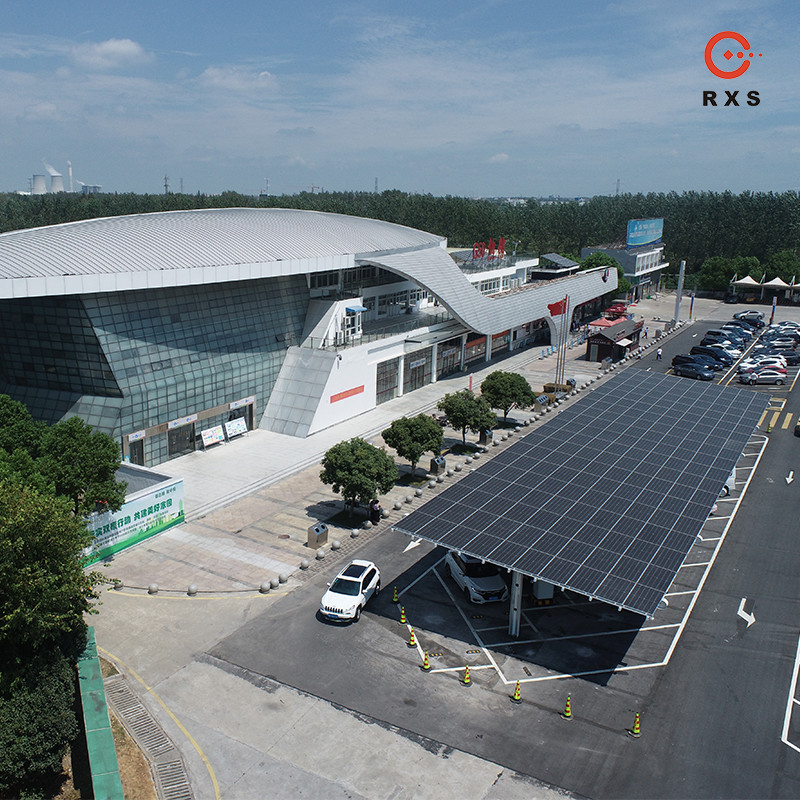

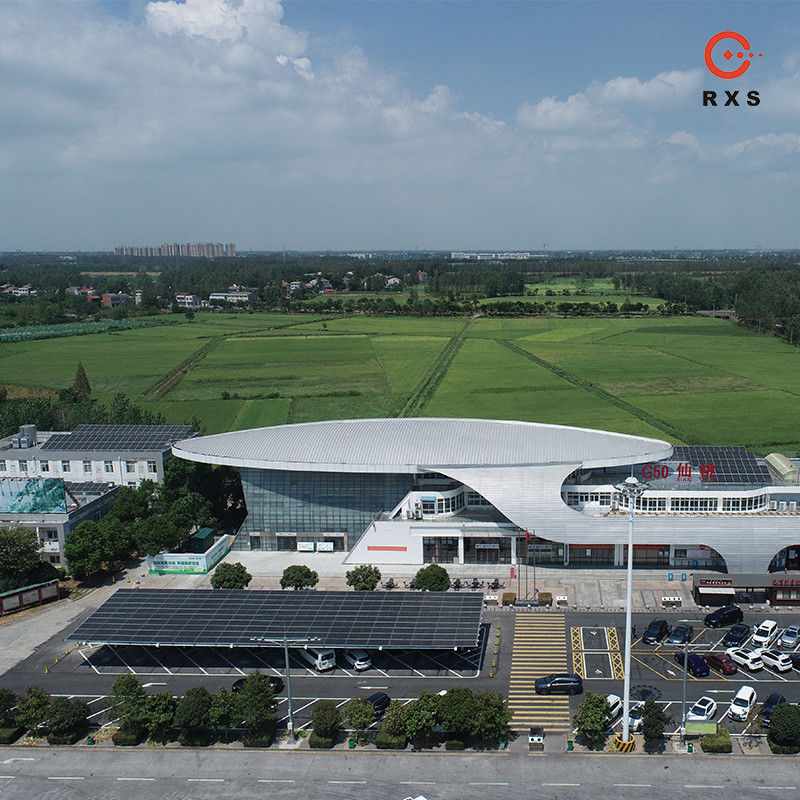

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.
