High Efficiency High Power Solar Panels Residential
High Efficiency High Power Solar Panels Residential
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE
Model Number: PV Module DBP400
High Light:

Residential High Power Solar Panels


10kw High Power Solar Panels

Payment & Shipping Terms
Packaging Details: In cartons
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 5GW / year
Module No.: DBP400 Solar Panel
Solar Power (w): 10kw Solar System,on Grid Solar System 5000w
Application: Home,Commercial,Industrial,Residential/Commercial,Residential
Load Power (w): 10kw,on Grid Solar System 10000w
Type: On Grid,Grid Tie System,Home Solar Power System,solar Panels System
Specification: Normal
Cell Nos & Array: Mono Half-cut Cells 108 Pcs
Cell Size (mm): 182*91
Glass Thickness (mm): 3.2
Frame: Anodized Alaminum Alloy
Cable: 4m㎡ Negetive300mm, Positive300mm
Module Dimension (L*W*H)(mm): 1722*1134*35mm
Packing: 31pcs/pallet
Product Description

High Efficiency High Power Solar Panels Solar System Residential Solar Power Panel

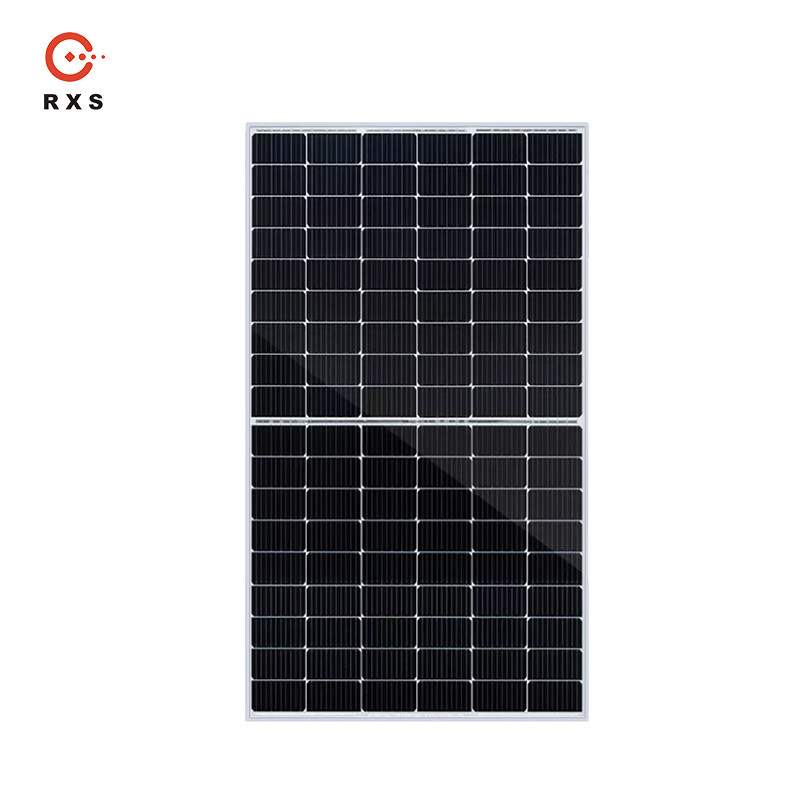

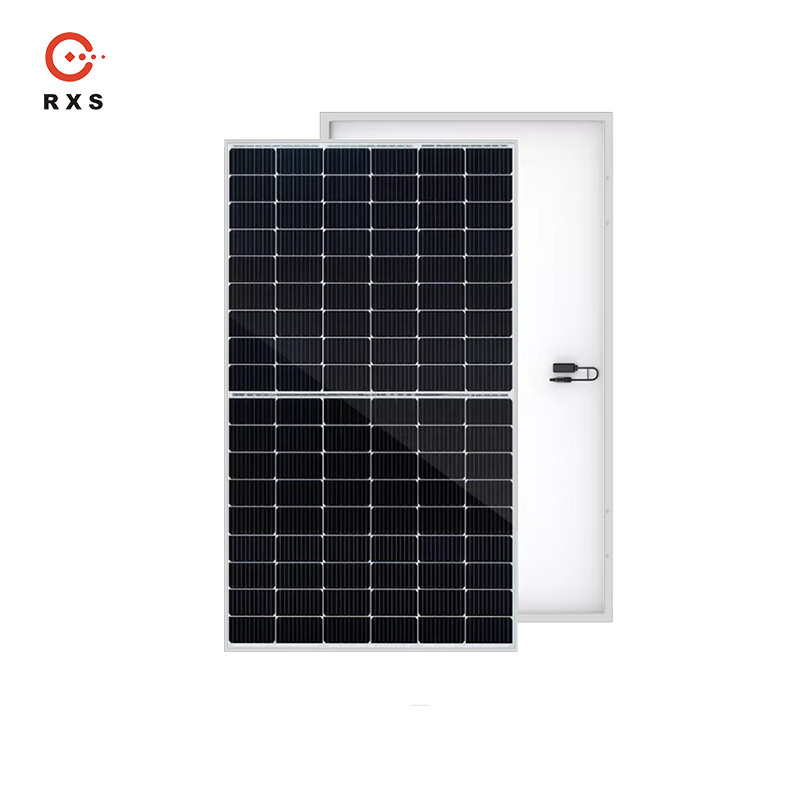

Mono solar Module DBP400

Model DBP400 DBP405 DBP410 DBP415
Maximum power(Pm/Wp) 400 405 410 415
Maximum power voltage(Vmp/V) 31.3 31.54 31.78 32.02
Maximum power current(lmp/V) 12.78 12.84 12.9 12.96
Open circuit voltage(Voc/V) 37.54 37.79 38.03 38.27
Short circuit current(Isc/A) 13.52 13.58 13.64 13.7
Module efficient(%) 20.50 20.74 21 21.25

Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5


Mechanical performance parameters

Cell Nos & array Mono half-cut cells 108 pcs
Cell size (mm) 182*91
Glass thickness (mm) 3.2
Frame Anodized alaminum alloy
Cable 4m㎡ negetive300mm, positive300mm
Module weight (kg) 24
Module dimension (L*W*H)(mm) 1722*1134*35mm
Packing 31pcs/pallet


Quality parameters

Module working temperature range (℃) -40~ +85
Power tolerance(W) 0~+5
Maximum system voltage(V) DC1500
System maximum protection current(A) 25
NOCT(℃) 45±2
Front/rear static loads(Pa) 2400 / 5400
Junction box/Connector Ip68,split / MC4 compatible



Temperature coefficient of Voc -0.275%/℃
Temperature coefficient of Isc +0.05%/℃
Temperature coefficient of Pm -0.35%/℃
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

High Efficiency High Power Solar Panels Residential 0High Efficiency High Power Solar Panels Residential 1

High Efficiency High Power Solar Panels Residential 2


Q1 : What about delivery time?

A : Goods : 7-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

      30-year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 21 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.



Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.

High Efficiency High Power Solar Panels Residential 3High Efficiency High Power Solar Panels Residential 4High Efficiency High Power Solar Panels Residential 5
