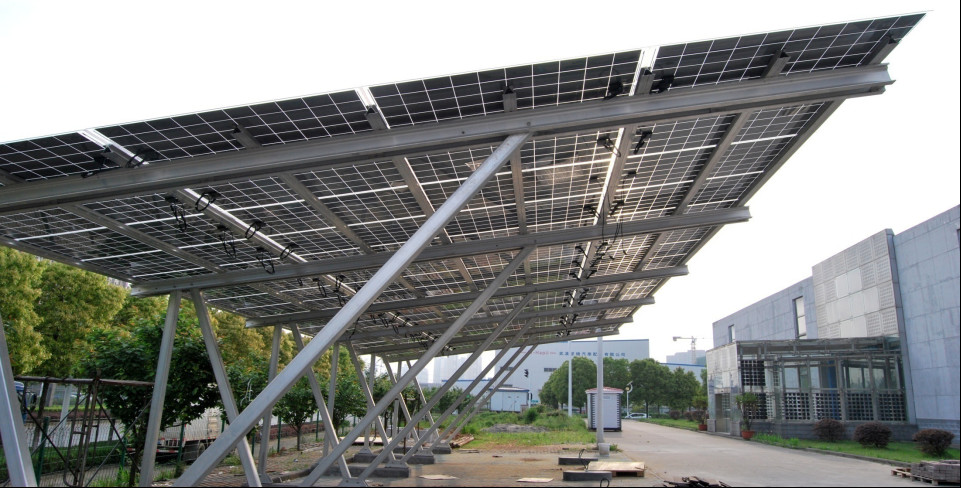

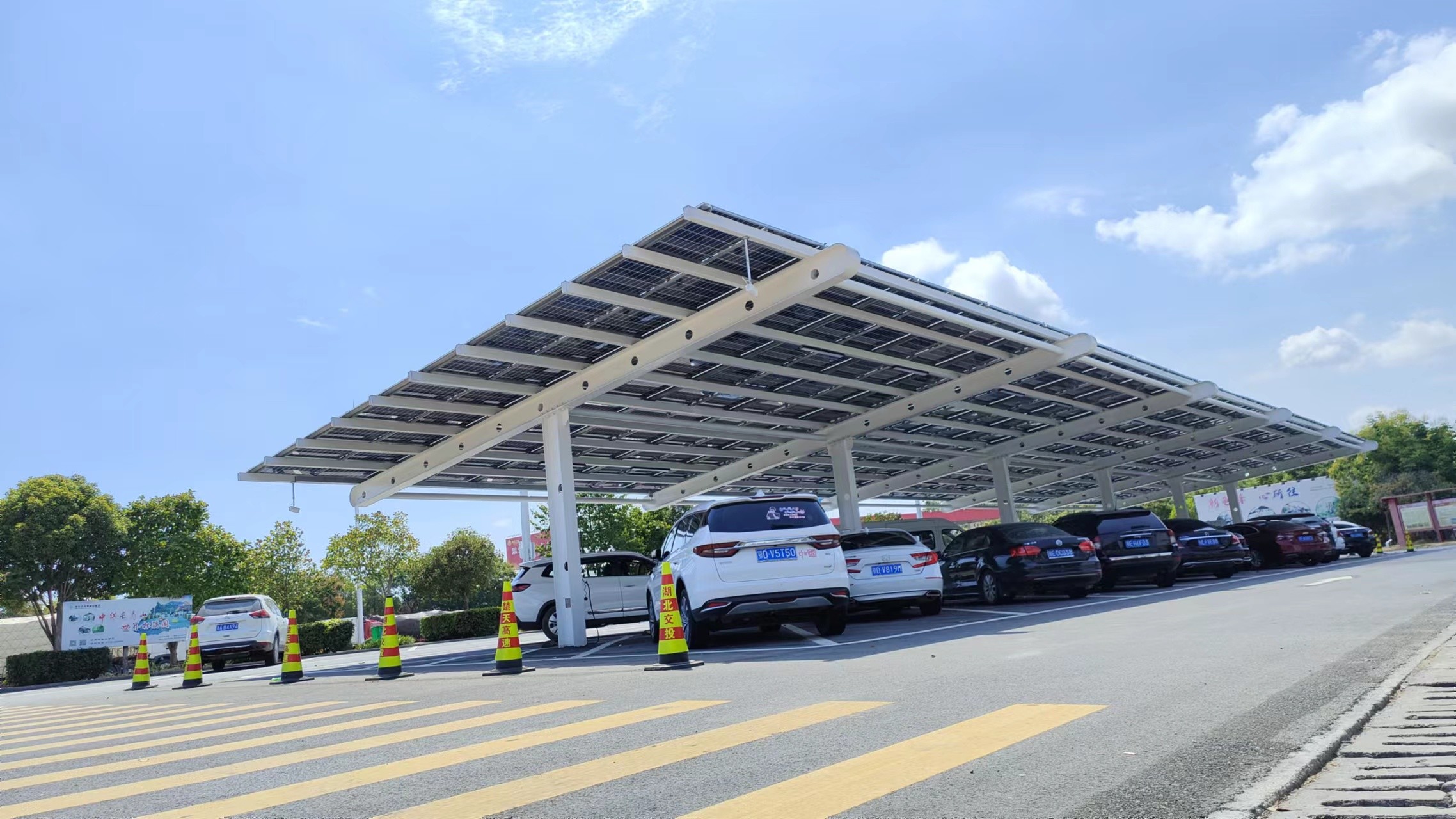

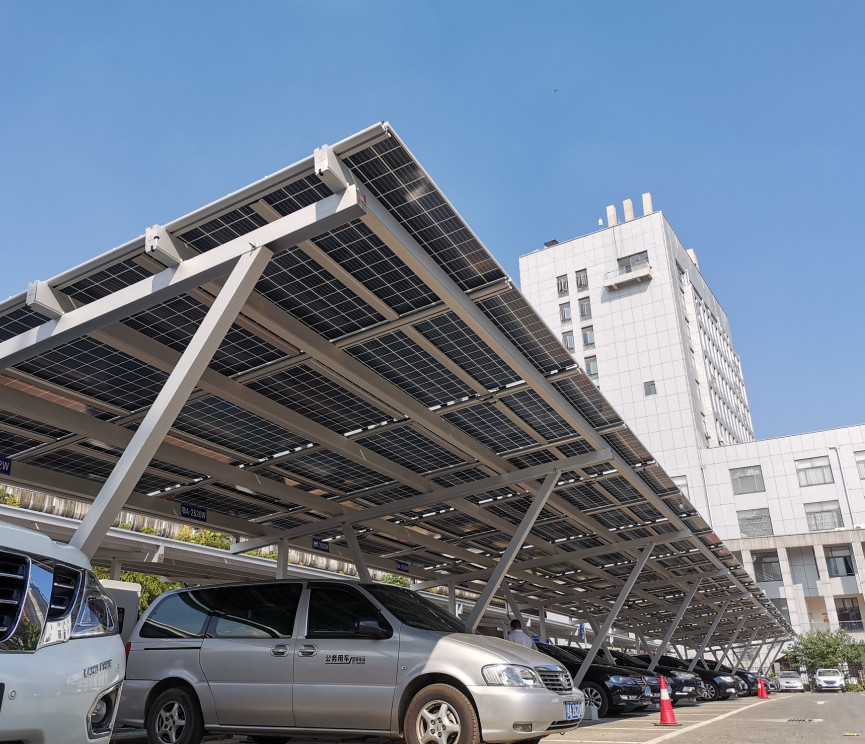

Rixin High Power Carport Monocrystalline PV Module Half Cut 108Cells Solar Panels
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan, China and has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.
With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 3GW.
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe,
Mono solar Module DBP400
|Maximum power voltage(Vmp/V)||31.3||31.54||31.78||32.02|
|Maximum power current(lmp/V)||12.78||12.84||12.9||12.96|
|Open circuit voltage(Voc/V)||37.54||37.79||38.03||38.27|
|Short circuit current(Isc/A)||13.52||13.58||13.64||13.7|
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
|Cell Nos & array||Mono half-cut cells 108 pcs|
|Cell size (mm)||182*91|
|Glass thickness (mm)||3.2|
|Frame||Anodized alaminum alloy|
|Cable||4m㎡ negetive300mm, positive300mm|
|Module weight (kg)||24|
|Module dimension (L*W*H)(mm)||1722*1134*35mm|
|Module working temperature range (℃)||-40~ +85|
|Maximum system voltage(V)||DC1500|
|System maximum protection current(A)||25|
|Front/rear static loads(Pa)||2400 / 5400|
|Junction box/Connector||Ip68,split / MC4 compatible|
|Temperature coefficient of Voc||-0.275%/℃|
|Temperature coefficient of Isc||+0.05%/℃|
|Temperature coefficient of Pm||-0.35%/℃|
|Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5|
12-year material & workmanship warranty
25-year linear power warranty
Q1 : What about delivery time?
A : Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
25-year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 21 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
