Custom Mono BIPV Solar Panels Laminated Glass Rooftop Carport Solar System
Custom Mono BIPV Solar Panels Laminated Glass Rooftop Carport Solar System
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE/TUV/IEC/ISO9001
Model Number: RXJJ-105B
High Light:

Custom Mono BIPV Solar Panels


Laminated Glass BIPV Solar Panels


Carport Solar System BIPV Panels

Payment & Shipping Terms
Packaging Details: In Pallet or wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3GW/YEAR
Model: BIPV Solar Panels
Maximum Power At STC (Pm/Wp): 105W
Maximum Power Voltage (Vmp/V): 11.0
Maximum Power Current (lmp/V): 9.55
Transparent (%): 22.5%
Fault Structure (mm): 3.2mm Tempered Glass+0.5EVA+bifacial Mono Cells+0.5EVA+3.2mm Tempered Glass
Cells No.: 158.75mm 20pcs (5*4)
Junction Box: IP67 Rated
Type: Customized Solar Panel,Monocrystalline Solar Panel
Solar Cell: A Grade Mono 156.75*156.75mm Cell
Application: Building,Solar Panel System For Home,Industrial,Home Commercial Solar System,commercial
Product Description

Custom Mono BIPV Solar Panels Laminated Glass Rooftop Carport Solar System


1. High cell efficiency with quality silicon materials for long term output stability;
2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;
4. Both Poly-crystalline and Mono-crystalline;
5. Excellent performance in harsh weather;
6. Outstanding electrical performance under high temperature and low irradiance;
7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
8. The size and shape can be customized;
9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.

Custom Mono BIPV Solar Panels Laminated Glass Rooftop Carport Solar System 0Custom Mono BIPV Solar Panels Laminated Glass Rooftop Carport Solar System 1

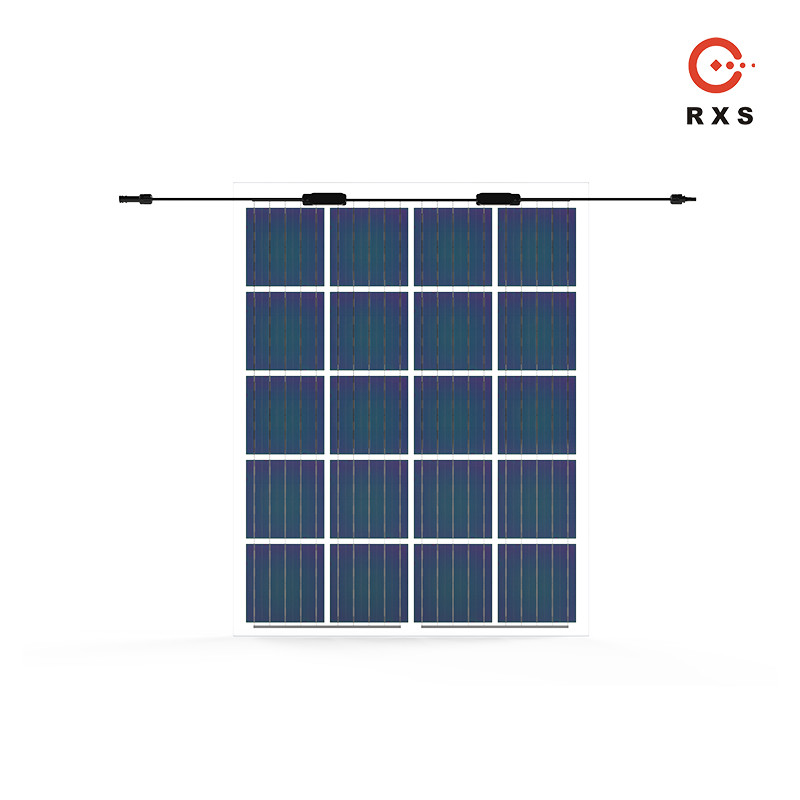

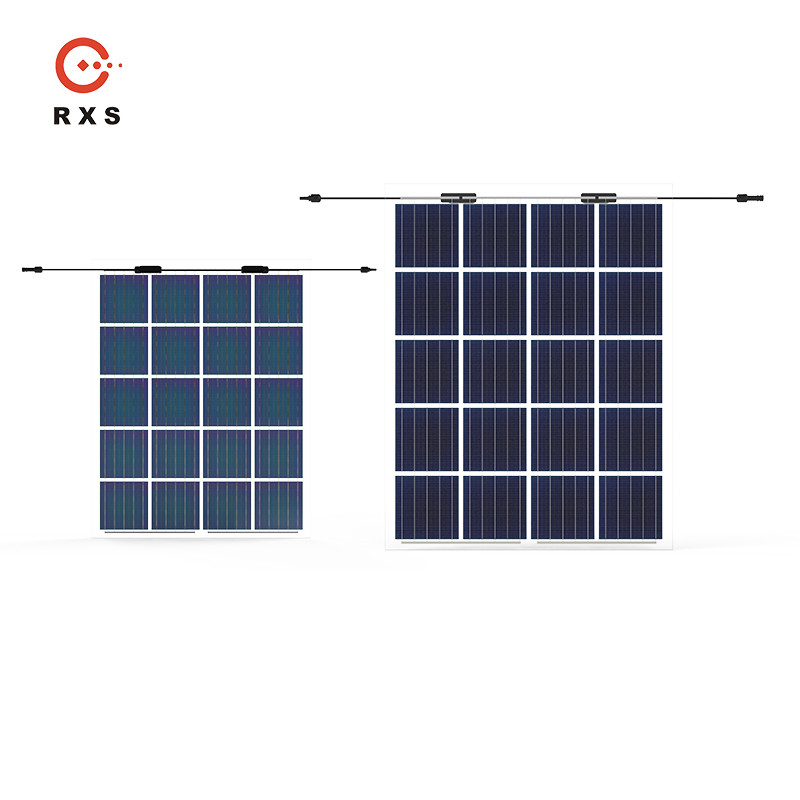

BIPV RXJJ-105B Bifacial PV Components

Monocrystalline Laminated Glass Module RXJJ-105B

Performance Parameters

Model RXJJ--105B
Maximum power at STC (Pm/Wp) 105
Maximum power voltage (Vmp/V) 11.0
Maximum power current (lmp/V) 9.55
Open circuit voltage (Voc/V) 13.0
Short circuit current (Isc/A) 10.51
Transparent (%) 22.5%
Working temperature (℃) -40~ +85
Fault structure (mm) 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
Cable 4m㎡/300mm
Dimension (mm) 910mm*715mm*7mm
Weight (kg) 11.5kg
Wind loads resistance 2.4KN/㎡
Cells No. 158.75mm 20pcs (5*4)

*STC (AM1.5,1000w/㎡,cell temperature 25℃)

  10-year material & workmanship warranty

30-year linear power warranty


Application :Commercial, Home, Solar Home System, Solar System Solar Street Light, solar panel system

Junction box :IP65 Rated, IP67 TUV/UL certificated, MC4 Connector, IP 67, IP65 Waterproof



Q1 : What about delivery time?

A : Goods : 7-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

      30-year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 21 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.



Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.


Certificate standard

Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
