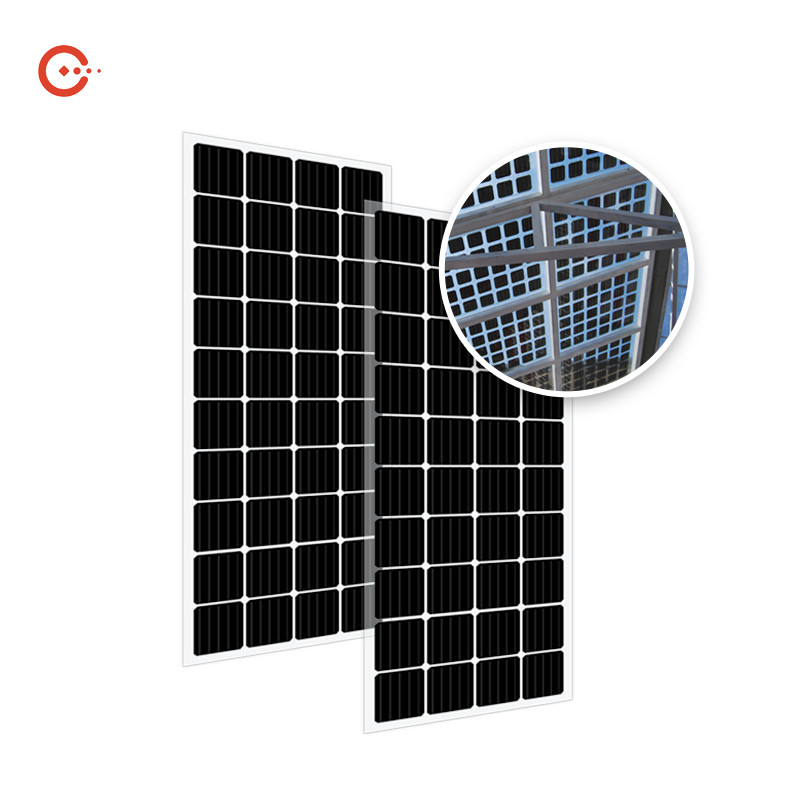

100W 200W 300W BIPV Module Solar System
100pcs
MOQ
Negotiable
Price
100W 200W 300W BIPV Module Solar System
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: RXJJ-205
High Light:

300W BIPV Module Solar System

,

200W BIPV Module

,

BIPV Mono Bifacial Glass Panel

Payment & Shipping Terms
Packaging Details: cartons/wooden cases
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 500MW/Month
Specifications
Power: 200W 215W
Grid Mode: ON-grid Solar System
Certificated: TUV, CE, ISO9001, ISO14001, OHSAS18000
Transparent (%): 18.5
Fault Structure (mm): 3.2mm Tempered Glass+0.5EVA+bifacial Mono Cells+0.5EVA+3.2mm Tempered Glass
Cable: 4m㎡/300mm
Dimension (mm): 1730mm*715mm
Weight (kg): 21.8kg
Wind Loads Resistance: 2.4KN/㎡
Cells No.: 40 (10*4) Mono Solar Cell
Product Description

100W 200W 300W BIPV Module Solar System Mono Bifacial Glass Glass Paneles Solares



Characteristics solar panel

1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)

2. High efficiency crystalline silicon solar cells

3. High transmission Iow iron tempered glass, strong mechanical resistance

4. Anti-ageing EVA and excellent anti-climate back sheet

5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.

6. Standard waterproof junction box

7. High endurance to different weather

8. Good and friendly package with less transportation and storage space.

4. Our solar panel Life&Warranty

1. 10 years limited manufacturing warranty

2. 12 years for 90% of warranted minimum power

3. 25 years for 80% of warranted minimum power100W 200W 300W BIPV Module Solar System 0

100W 200W 300W BIPV Module Solar System 1

Monocrystalline Laminated Glass Module DDM-215C



Performance Parameters

Model DDM-215C
Maximum power at STC (Pm/Wp) 215
Maximum power voltage (Vmp/V) 21.0
Maximum power current (lmp/V) 10.24
Open circuit voltage (Voc/V) 26.0
Short circuit current (Isc/A) 11.27
Transparent (%) 18.5
Working temperature (℃) -40~ +85
Fault structure (mm) 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
Cable 4m㎡/300mm
Dimension (mm) 1730mm*715mm
Weight (kg) 21.8kg
Wind loads resistance 2.4KN/㎡
Cells No. 40 (10*4)

*STC (AM1.5,1000w/㎡,cell temperature 25℃)

15-year material & workmanship warranty

30-year linear power warranty

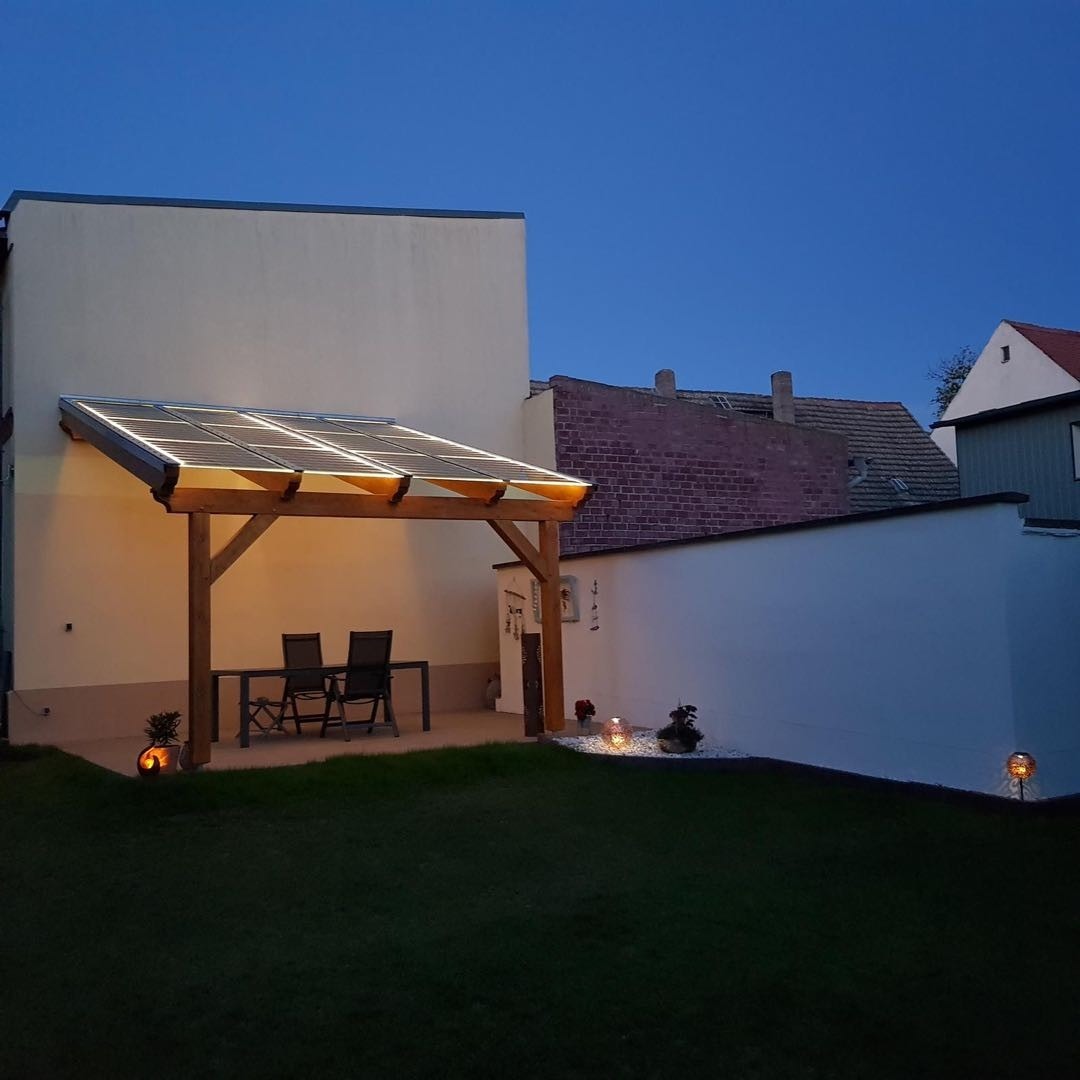

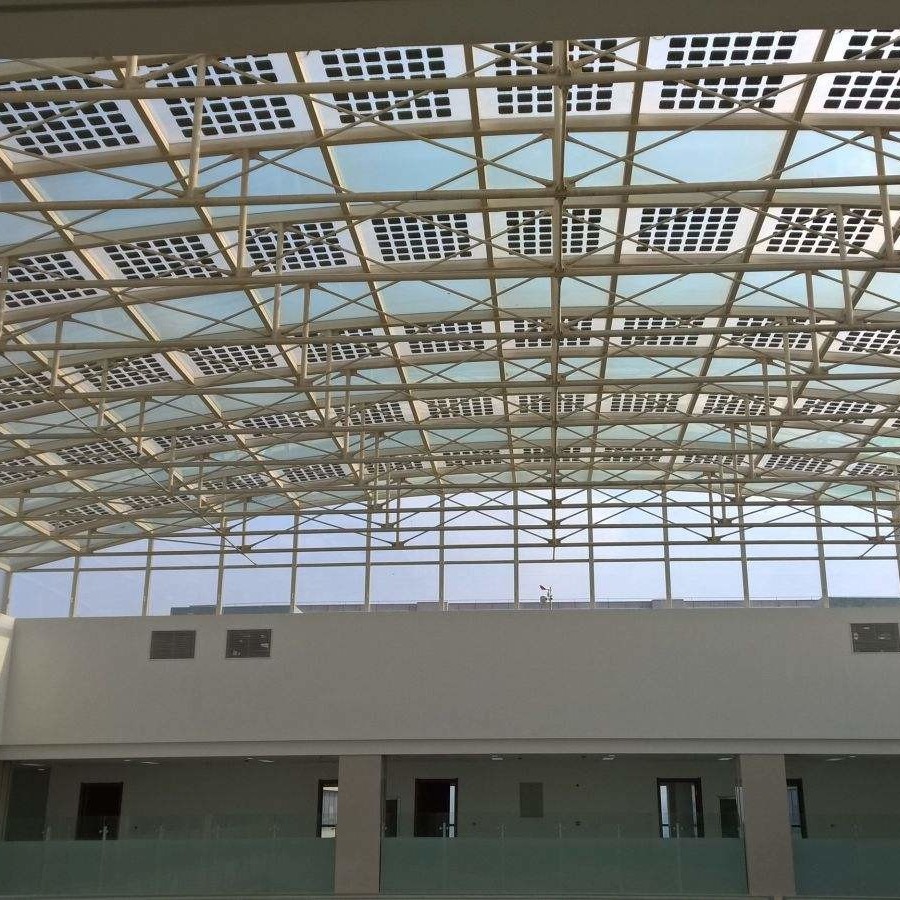

Application :Commercial, Home, Solar Home System, Solar System Solar Street Light, solar panel system



100W 200W 300W BIPV Module Solar System 2100W 200W 300W BIPV Module Solar System 3



Self-branded

Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.
