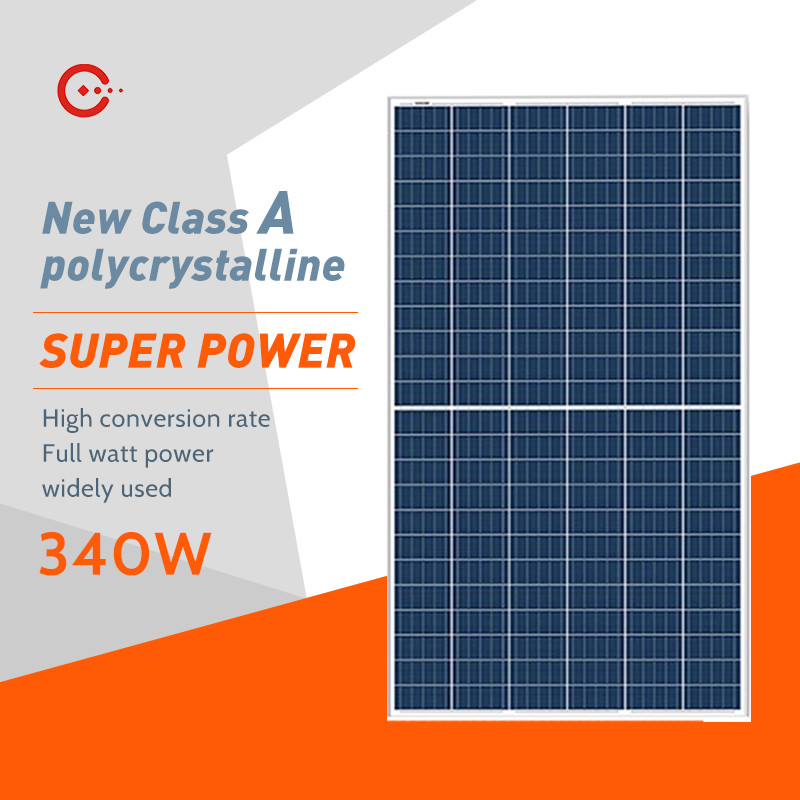

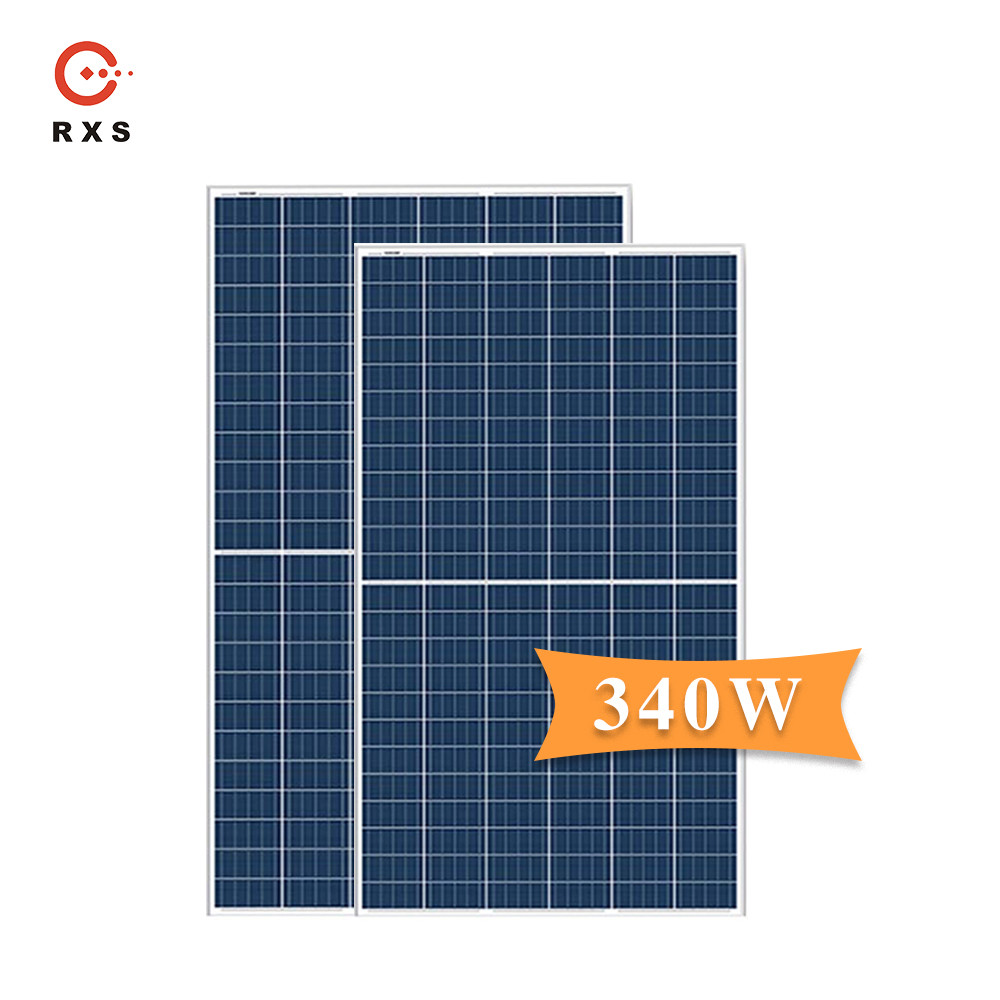

Poly Solar PV Module 340w For Home
Poly Solar PV Module 340w For Home
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE\IEC\TUV\ISO14001
Model Number: MBG330~340
High Light:

Poly Solar PV Module 340w


IEC Home Solar PV Module


Polycrystalline Solar Panels 1000w

Payment & Shipping Terms
Packaging Details: In pallet
Delivery Time: 7-10 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3GW/YEAR
Junction Box: IP 67 Or IP 68 Rated
Connector: MC4 Compatible Connector
Material: High Quality Solar Panels For Home Use
Solar Cell: Poly 156.75*156.75 Mm
Product Name: Photovoltaic Solar Cell Panels,Portable Roof Mounted PV Module Solar Panels For Home System Use
Name: 340W Poly Crystalline Solar Panel
Cable: 4mm2
Installation Site: Roof Or Ground Solar Panels,Open Ground And Flat Roof
Product Description

Rixin Poly Solar PV Module 340w Polycrystalline Solar Panels Cost 1000w Price For Home


A PV module is a packaged, connected assembly of solar cells. Solar panels can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications. Each module is rated by its DC output power under standard test conditions (STC), and typically ranges from 100 to 320 watts. The efficiency of a module determines the area of a module given the same rated output - an 8% efficient 230 watt module will have twice the area of a 16% efficient 230 watt module. There are a few solar panels available that are exceeding 19% efficiency.

Poly Solar PV Module 340w For Home 0

Electrical performance parameters
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type MDG330 MDG335 MDG340
Maximum power(Pm/Wp) 330 335 340
Maximum power voltage(Vmp/V) 37.0 37.1 37.2
Maximum power current(lmp/V) 8.90 9.03 9.14
Open circuit voltage(Voc/V) 45.0 45.1 45.2
Short circuit current(Isc/A) 9.98 10.08 10.18
Module efficient(%) 16.5 16.7 17
NOCT(℃) 45±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 2015*996*35
Module weight (kg) 28
Cable 4mm2 negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell size (mm) Poly half cell 144(6*12*2)
Packing 30pcs/pallet
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 15
Maximum wind pressure/maximum snow pressure (Pa) 2400/5400
Poly Solar PV Module 340w For Home 1

Main Features

1. High power output

30 year linear performance warranty, more than 30% additional power gain.


2. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.


3. Fire safety performance

Higher fire safety class to minimize fire risks.


4. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.


5. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.
