Roof Custom Solar Panels 550W
10000watt
MOQ
negotiation
Price
Roof Custom Solar Panels 550W
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: RIXIN
Certification: CE
Model Number: DDG(P)540(K)
High Light:

Roof Custom Solar Panels

,

550W Custom Solar Panels

,

Commercial Roof Solar Pv Modules

Payment & Shipping Terms
Packaging Details: In pallet
Delivery Time: 7-10 DAYS
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 100MW/MONTH
Specifications
Module Type: Custom Solar Panels
Application: Home,Commercial,Industrial,Solar Home System,Solar System Or Solar Pant
Efficiency: 21.22%
Glass Thickness (mm): 2.0mm
Module Weight (kg): 32.1kg
Packing Way: 31pcs/pallet
Maximum System Voltage(V): DC1500
Junction Box/Connector: Ip68,split / MC4 Compatible
Module Dimension (L*W*H)(mm): 2285*1134*35mm
Size: Customized
Material: MONO Solar Cell
Solar Cell: Mono 182*182mm Cell
Product Description

Highest Effiency Custom Solar Panels 550 watt solar shingle panel commercial solar roof pv modules

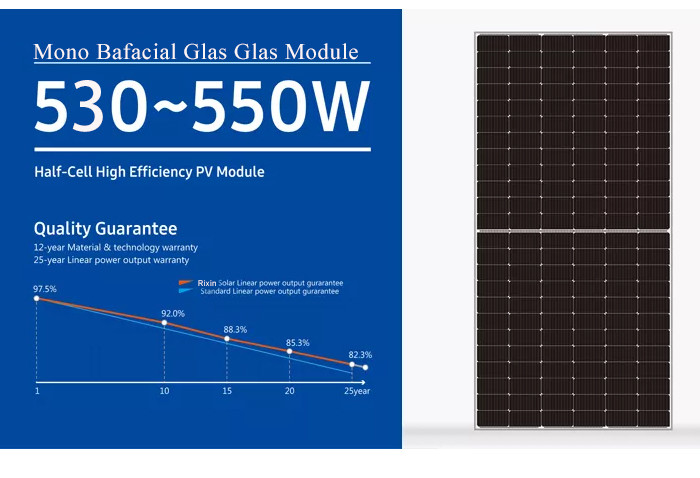

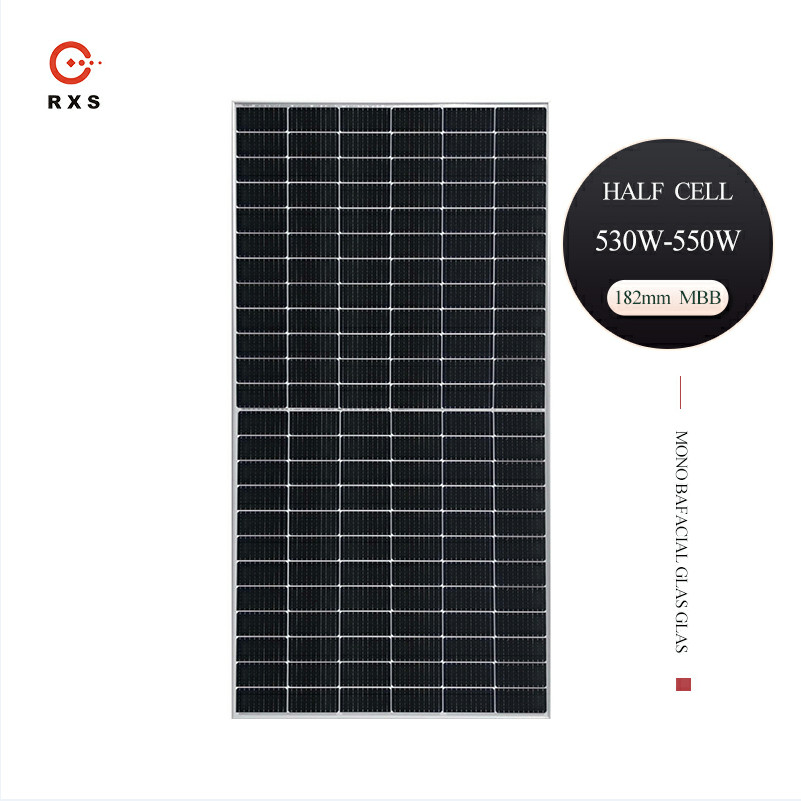

Mono Bifacial Double Glass Module DDG(P)530-550(k)

Model DDG(P)530(k) DDG(P)535(k) DDG(P)540(k) DDG(P)545(k) DDG(P)550(k)
Maximum power(Pm/Wp) 530 535 540 545 550
Maximum power voltage(Vmp/V) 41.64 41.87 42.09 42.32 42.54
Maximum power current(lmp/V) 12.73 12.78 12.83 12.88 12.93
Open circuit voltage(Voc/V) 49.65 49.78 49.91 50.12 50.34
Short circuit current(Isc/A) 13.48 13.53 13.58 13.63 13.68
Module efficient(%) 20.45 20.64 20.83 21.03 21.22

Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5



Mechanical performance parameters

Cell Nos & array Mono half-cut cells 144 pcs
Cell size (mm) 182*91
Glass thickness (mm) 2.0
Frame Anodized alaminum alloy
Cable 4m㎡ negetive300mm, positive300mm
Module weight (kg) 32.1
Module dimension (L*W*H)(mm) 2285*1134*35mm
Packing 31pcs/pallet

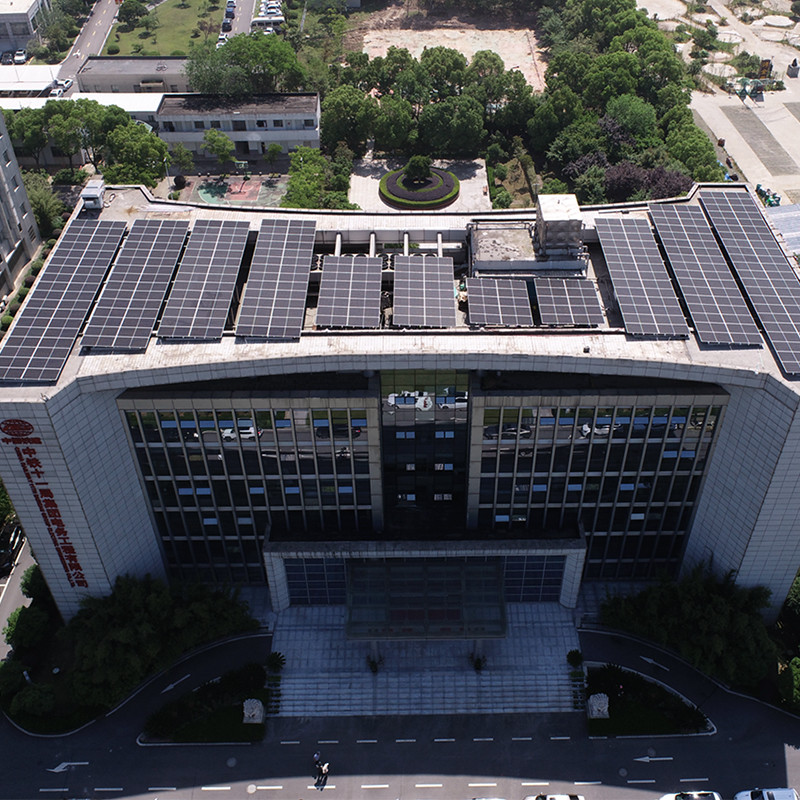

Roof Custom Solar Panels 550W 0Roof Custom Solar Panels 550W 1

Roof Custom Solar Panels 550W 2

Roof Custom Solar Panels 550W 3





Advantage of Solar Panel:



1, Long Life time: Solar Power has a 25 year warranty

2,Sustainable Energy: The sun is an infinite nature soure of energy. Unlike fossile fuels it will never run out.

3,Save your money: After the initial investment has been recovered, the energy from the sun is practically free.

4,Environment friendly: solar energy is clean,renewable(unlike gas,oil and coat), sustainable and slow/stop global warming helping to protect the environment



Features :



1). High Conversion Efficiency Solar Panels’ Cells are laminated with TPT and EVA and encapsulated with Low-iron tempered glass ensuring longer life and maximum performance

2). Anti-aging EVA, high resistant TPT to laminate and stronger anodized aluminum alloy frame

3). Strong aluminum frame withstand heavier snow load and higher wind-pressure by passing mechanical load test 2400Pa ~5400Pa ,

4). Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load ;

5). Ip65 Junction box with Built-in diodes prevents reverse charging and keep excellent protection ;

6). Rigorous quality control meet the highest international standards and classification of modules

7). Advanced photovoltaic technologies is resistant to atmospheric exposure and effects of delaminating;

8). The exterior design and electrical performance of each every module are fully tested to guarantee superior quality of 25years lifespan .

· Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies

Features

· High Performance Solar Panel

· Monocrystalline Cells

· Low Reflection of Sunlight

· High Light Absorption

· Functions perfectly under low light or panel being partly shaded

Roof Custom Solar Panels 550W 4

Tempered Glass

• Tempered glass with anti-reflective treatment to increase the module efficiency up to 2% • Light transmittance improvement above 3% • Self-cleaning function • Service life is as long as 25 years

Solar Cells

• High Efficiency PV Cells • Appearance Consistency • Color sorting ensure consistent appearance on each module • Anti-PID

Aluminum Frame

• Strong mechanical load resistance up to 5400 Pa,Serrated-clip design tensile strength • Anodic oxidation layer resistant chemical corrosion • Boost bearing capability and prolong service life • Silver and black color optional

BackSheet⇒

• Excellent electric insulation for high system voltage up to 1500V • Low moisture permeability against snail trail defect • Outstanding weatherproof performance

EVA Film

• UV resistance against ageing • Light transmittance more than 92% • Small trail prevention treatment

Junction Box⇒

• Heat dissipation for long service life• High quality diodes for electric safety • 1000V system voltage available • Conventional standalone edition and engineering custom edition
