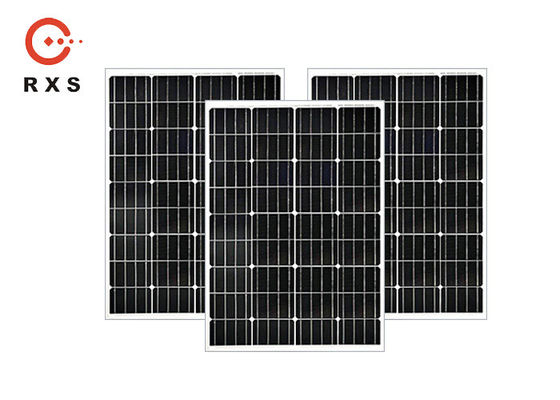

monocrystalline framed solar panel / 115W / 36cells / 12V
High-efficiency monocrystalline framed solar panel using silicon nitride coated monocrystalline silicon cells.
Solar cell: High efficiency crystalline solar cell. Even if under the weak light, the solar module
can produce maximum power output. Tempered glass: Anti-reflecting coating and high
transmission rate glass increases the power output and mechanical strength of solar module.
Main Features
1. Over 25-year lifespan.
2. Available for charging 12V/24V battery.
3. Module dimension could be customized.
4. Suitable for solar street light, solar garden light, solar pump etc., on-grid or off-grid system.
Performance parameters
| Model | DBF115 |
| Dimension (L*W*H) mm | 1010*670*35 |
| Weight (kg) | 7.51 |
| Cell dimension (mm) | 156*104 |
| Cell Nos | 36 (4*9) |
| Glass | 3.2mm low-iron tempered glass |
| Frame | Anodized aluminum alloy |
| Mounting holes | customized |
| Junction box protection level | IP65 |
| Cable length | customized |
| Connector | customized, MC4 compatible |
| Power tolerance | ±5% |
| Maximum power (Pm/Wp) | 115 |
| Maximum power voltage (Vmp/V) | 18.5 |
| Maximum power current (Imp/A) | 6.22 |
| Open circuit voltage (Voc/V) | 22.0 |
| Short circuit current (Isc/A) | 6.61 |
Drawing-sample(mm)
Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
