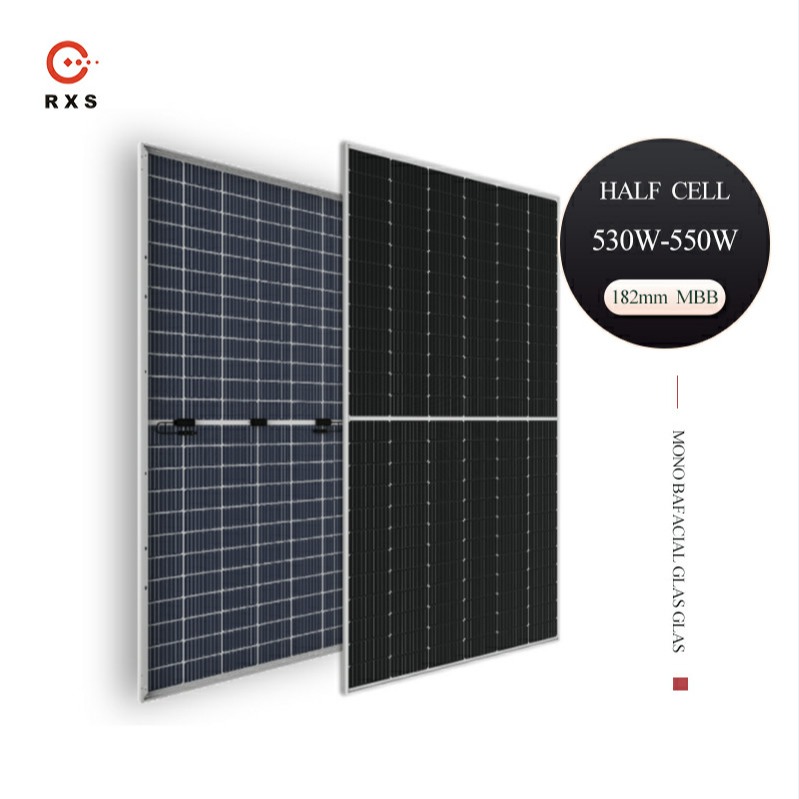

Mono Bifacial Double Glass Module DDG(P)530-550(k)
| Model | DDG(P)530(k) | DDG(P)535(k) | DDG(P)540(k) | DDG(P)545(k) | DDG(P)550(k) |
| Maximum power(Pm/Wp) | 530 | 535 | 540 | 545 | 550 |
| Maximum power voltage(Vmp/V) | 41.64 | 41.87 | 42.09 | 42.32 | 42.54 |
| Maximum power current(lmp/V) | 12.73 | 12.78 | 12.83 | 12.88 | 12.93 |
| Open circuit voltage(Voc/V) | 49.65 | 49.78 | 49.91 | 50.12 | 50.34 |
| Short circuit current(Isc/A) | 13.48 | 13.53 | 13.58 | 13.63 | 13.68 |
| Module efficient(%) | 20.45 | 20.64 | 20.83 | 21.03 | 21.22 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 144 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 2.0 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 32.1 |
| Module dimension (L*W*H)(mm) | 2285*1134*35mm |
| Packing | 31pcs/pallet |
Payment Term |
T/T |
EXW |
30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CNF |
30% T/T in advance, paid the balance against copy of B/L |
||
| CIF | |||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||
| West Union | Amount lower than 5000usd | ||
| Delivery Time | 7~10 days after receiving payment for one container | ||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection.
100% on-time shipment protection.
100% payment protection for your covered amount.
Advantage of Solar Panel:
1, Long Life time: Solar Power has a 25 year warranty
2,Sustainable Energy: The sun is an infinite nature soure of energy. Unlike fossile fuels it will never run out.
3,Save your money: After the initial investment has been recovered, the energy from the sun is practically free.
4,Environment friendly: solar energy is clean,renewable(unlike gas,oil and coat), sustainable and slow/stop global warming helping to protect the environment
Details
Solar Cell
* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Color sorting ensure consistent appearance on each module
Glass
* Anti-reflective glass
* Self-cleaning function
* Module efficiency is increased by 2%
* Service life is as long as 25 years (30 years optional)
Junction box
* Heat dissipation
* Long service life
* IP67 protection level
* Quality diode ensures module running safety
* Conventional standalone edition and engineering custom edition
Frame
* Conventional frame
* Seal-lip design glue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
* Boost bearing capability and prolong service life
