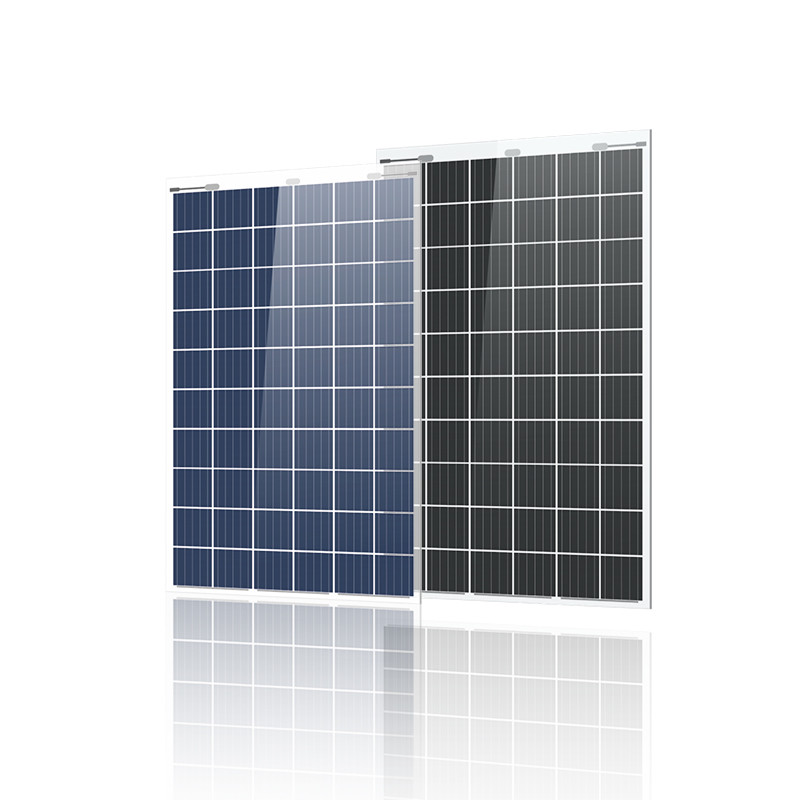

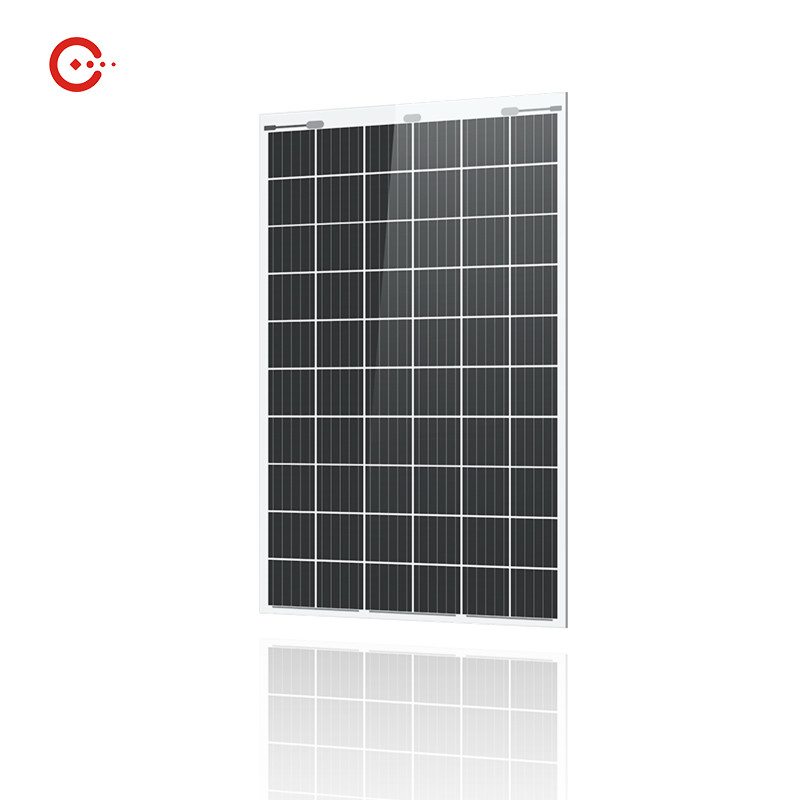

Rixin 200watt Monocrystalline PV Module 310w Bificial Glass Glass Home Roof Solar Panel
Characteristics solar panel
1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)
2. High efficiency crystalline silicon solar cells
3. High transmission Iow iron tempered glass, strong mechanical resistance
4. Anti-ageing EVA and excellent anti-climate back sheet
5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6. Standard waterproof junction box
7. High endurance to different weather
8. Good and friendly package with less transportation and storage space.
4. Our solar panel Life&Warranty
1. 10 years limited manufacturing warranty
2. 12 years for 90% of warranted minimum power
3. 25 years for 80% of warranted minimum power
Outstanding module performance
High hot-spot resistance
Double semi-tempered glasses strengthen cracking resistance
Improve heat dissipation
Ensure fire safety performance
Replace polymer back plate with tempered glass, to improve fire safety perormance
Passed fire safety test grade A
System cost reduction makes more efficiency
Maximum system voltage enhanced to 1500V
Compared with 1000V system, system overall cost reduced greatly
30-year linear power warranty, only 0.5% annual linear degradation
Harsh environment adaptation
High transmittance,anti reflection, self-cleaning coated glass
No aluminum alloy frame, no grounding
Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance
Passsed positive snow loads(5400pa) and wind loads(2400pa) certification tests.
|Product name||Monocrystalline double-sided laminated glass Module|
|Electrical parameters||Maximum power (Pm/Wp)*||310|
|Power tolerance (%)||±5|
|Maximum power voltage (Vmp/V)*||32.1|
|Maximum power voltage ( Imp/A)*||9.65|
|Open circuit voltage (Voc/V)*||38.2|
|Short circuit current (Isc/A)*||10.4|
|Module efficiency ηc(%)*||16.5|
|Maximum system voltage(V)||1500|
|Temperature coefficient of Pm||-0.38%/℃|
|Temperature coefficient of Voc||-0.30%/℃|
|Temperature coefficient of Isc||+0.048%/℃|
|Mechanical parameters||Fault structure(mm)||5 Low iron tempered glass+0.76PVB+single crystal double-sided cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced)|
|Module dimension (L*W*H)(mm)||1775mm*1060mm*11mm|
|Module Weight (kg)||56kg|
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan, China and has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.
With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe, America and other Asian countries with safety certificates.
With many years development as a trustworthy manufacturer, Rixin Technology’s products enjoy high reputation in the world market.We have attended many exibitions each year.
Our value is coordination, innovation, sincerty, service. We will make unremitting efforts to be your best partner on your path of the photovoltaic weath.
Q1 : What about delivery time?
A : Goods : 10-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
30-year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
