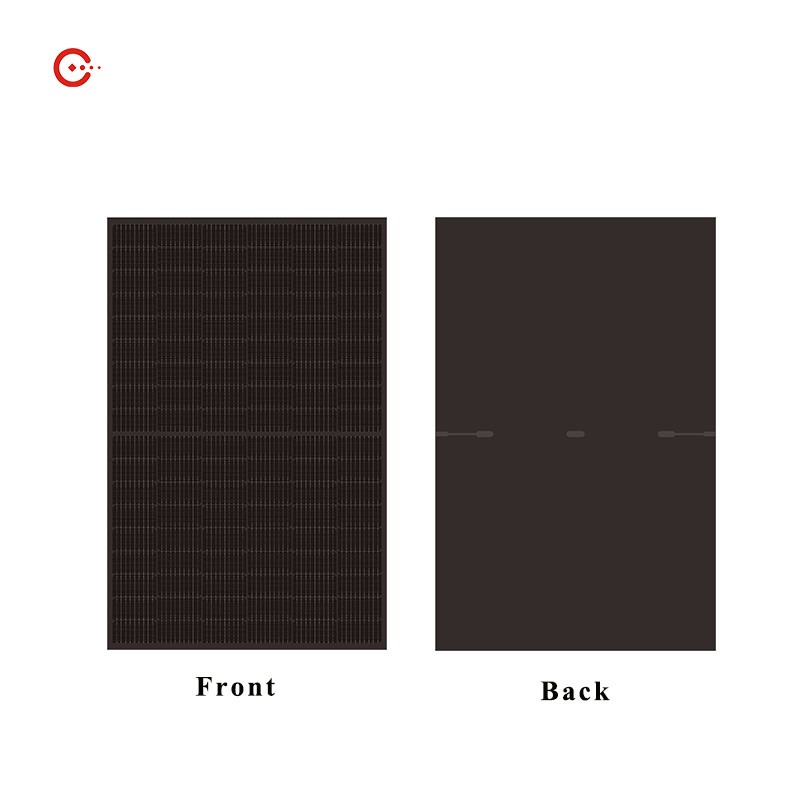

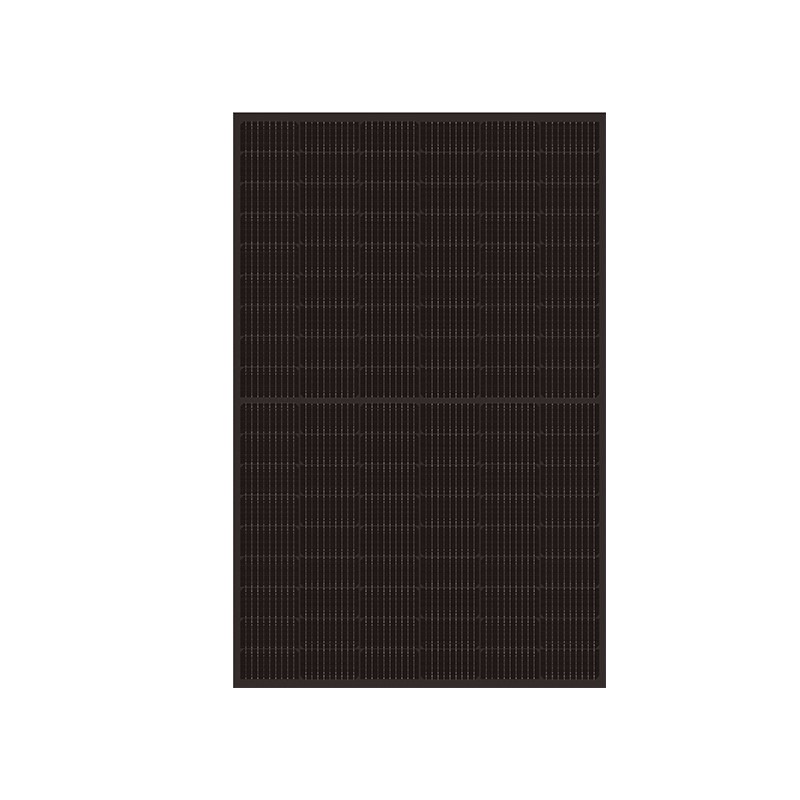

Rixin Black High Power Solar Panels Monocrystalline Power 108 Half Cells Module

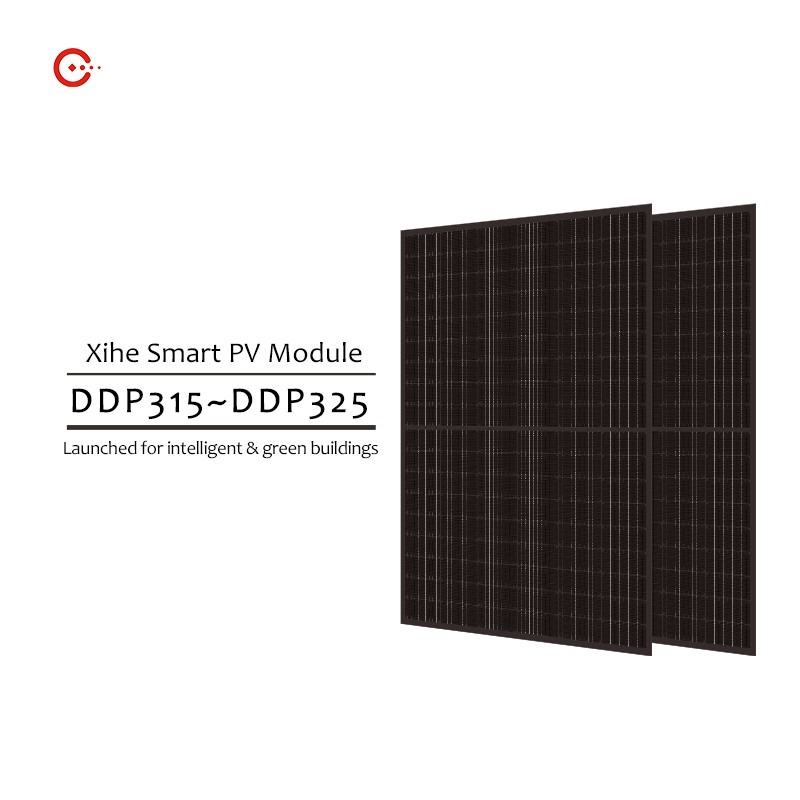

| BIPV Mono Bifacial Double Glass Module DDP315~325 | |||
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |||
| Type | DDP315 | DDP320 | DDP325 |
| Maximum power(Pm/Wp) | 315 | 320 | 325 |
| Maximum power voltage(Vmp/V) | 29.3 | 29.4 | 29.5 |
| Maximum power current(lmp/A) | 10.75 | 10.88 | 11.00 |
| Open circuit voltage(Voc/V) | 35.9 | 36 | 36.1 |
| Short circuit current(Isc/A) | 11.54 | 11.60 | 11.66 |
| Module efficient(%) | 19.0 | 19.3 | 19.6 |
| Module working temperature range (℃) | 45±2℃ | ||
| Temperature coefficient of Voc | -0.30%/℃ | ||
| Temperature coefficient of Isc | 0.06%/℃ | ||
| Temperature coefficient of Pm | -0.39%/℃ | ||
| Power tolerance(W) | 0~+5 | ||
| Mechanical performance parameters | |||
| Module dimension (L*W*H)(mm) | 1600*1036*5 | ||
| Module weight (kg) | 19 | ||
| Cable | 4m㎡ negetive300mm, positive300mm | ||
| Junction box/Connector | Ip68,split / MC4 compatible | ||
| Cell Nos & array | Mono 108pcs(6*9*2) | ||
| Packing | 33pcs/pallet | ||
| Quality parameters | |||
| NOCT(℃) | -40~+85 | ||
| Maximum system voltage(V) | 1500DC | ||
| System maximum protection current(A) | 20 | ||
| Front/rear static loads(Pa) | 2400/2400 | ||
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan, China and has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.
With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe, America and other Asian countries with safety certificates.
With many years development as a trustworthy manufacturer, Rixin Technology’s products enjoy high reputation in the world market.We have attended many exibitions each year.
Our value is coordination, innovation, sincerty, service. We will make unremitting efforts to be your best partner on your path of the photovoltaic weath.
