Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity
10000watt
MOQ
negotiation
Price
Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE TUV
Model Number: DDP315
High Light:

Mono Black Solar PV Module

,

315watt Solar PV Module

,

Household Electricity Mono Solar Cell

Payment & Shipping Terms
Packaging Details: cartons in pallets
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500MW/Year
Specifications
Product Name: Panels For Solar Power System Home
Maximum Power Voltage(Vmp/V): 29.3
Max. Power: 325W
Module Efficient(%): 19.0
Module Working Temperature Range (℃): 45±2℃
Feature: All Black Solar Cell Panel
Junction Box/Connector: Ip68,split / MC4 Compatible
Solar Cell: Mono 166*166 Cell
Installation Site: Roof Or Ground Solar Panels
Cable: 4mm2
Color: Black
Frame: No
Type: Customized Solar Panel
Product Description

Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity

Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity 0Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity 1Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity 2

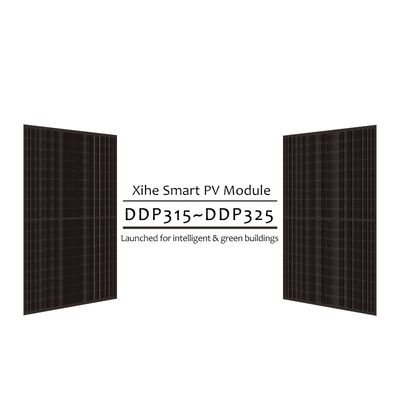

BIPV Mono Bifacial Double Glass Module DDP315~325
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type DDP315 DDP320 DDP325
Maximum power(Pm/Wp) 315 320 325
Maximum power voltage(Vmp/V) 29.3 29.4 29.5
Maximum power current(lmp/A) 10.75 10.88 11.00
Open circuit voltage(Voc/V) 35.9 36 36.1
Short circuit current(Isc/A) 11.54 11.60 11.66
Module efficient(%) 19.0 19.3 19.6
Module working temperature range (℃) 45±2℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 1600*1036*5
Module weight (kg) 19
Cable 4m㎡ negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell Nos & array Mono 108pcs(6*9*2)
Packing 33pcs/pallet
Quality parameters
NOCT(℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 20
Front/rear static loads(Pa) 2400/2400

Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity 3

Rixin Mono Black Solar PV Module Solar Cell Price 315watt For Household Electricity 4

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.

Formed in 2001, the company is headquartered in Wuhan, China and has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.

With core products covering N-type mono bifacial double glass solar panel, high efficiency Perc mono double glass solar panel, mono/poly double glass solar panel, Perc mono/poly framed solar panel, utility-scale solar power station etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Based on this strategic thinking, Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become one of the largest PV companies in terms of its scale and the leading expertise in China.

We use top-quality solar cells and EVA,TPT,strengthen glass,seal silicion etc. Our experienced staffs work together well to assurance quality under effective ISO system. We have IEC61215, IEC61730 certificates, CE, to assure our quality. Our products are exported to Europe, America and other Asian countries with safety certificates.

With many years development as a trustworthy manufacturer, Rixin Technology’s products enjoy high reputation in the world market.We have attended many exibitions each year.

Our value is coordination, innovation, sincerty, service. We will make unremitting efforts to be your best partner on your path of the photovoltaic weath.
