High Efficiency Monocrystalline PV Module Bifacial
100000WATTS
MOQ
USD0.25 /WATT
Price
High Efficiency Monocrystalline PV Module Bifacial
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Rixin
Certification: CE IEC ISO9001
Model Number: DDM215C
High Light:

High Efficiency Monocrystalline PV Module

,

Laminated Monocrystalline PV Module

,

Monocrystalline Bifacial PV Panel

Payment & Shipping Terms
Packaging Details: standard packaging
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000000000watt/month
Specifications
Maximum Power At STC (Pm/Wp): 215
Maximum Power Voltage (Vmp/V): 21.0
Maximum Power Current (lmp/V): 10.24
Transparent (%): 18.5
Working Temperature (℃): -40~ +85
Fault Structure (mm): 3.2mm Tempered Glass+0.5EVA+bifacial Mono Cells+0.5EVA+3.2mm Tempered Glass
Dimension (mm): 1730mm*715mm
Weight (kg): 21.8kg
Cells No.: 40 (10*4)
Application: Commercial, Home, Solar Home System, Solar System Solar Street Light, Solar Panel System
Wind Loads Resistance: 2.4KN/㎡
Junction Box: IP67 RATED
Warranty: 30 YEARS
Type: Monocrystalline Solar Panel
Material: Monocrystalline Silicon
Power Tolerance: 0~+5W, Positive Tolerance, ±3%
Product Description

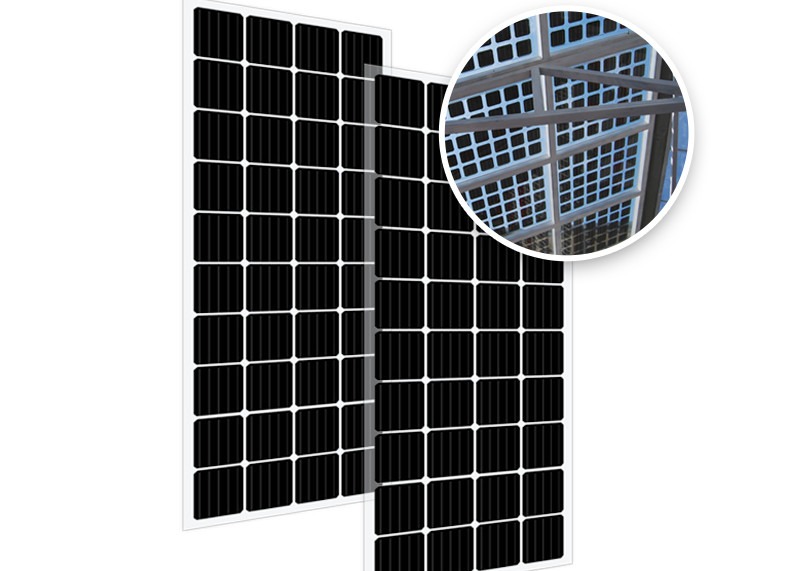

Rixin High Effiency Monocrystalline PV Module DDM-215C Bifacial PV Panel

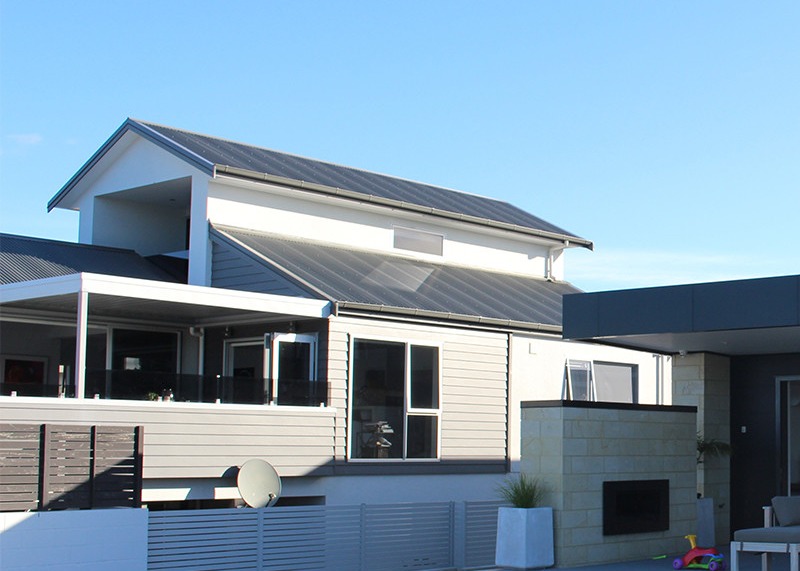

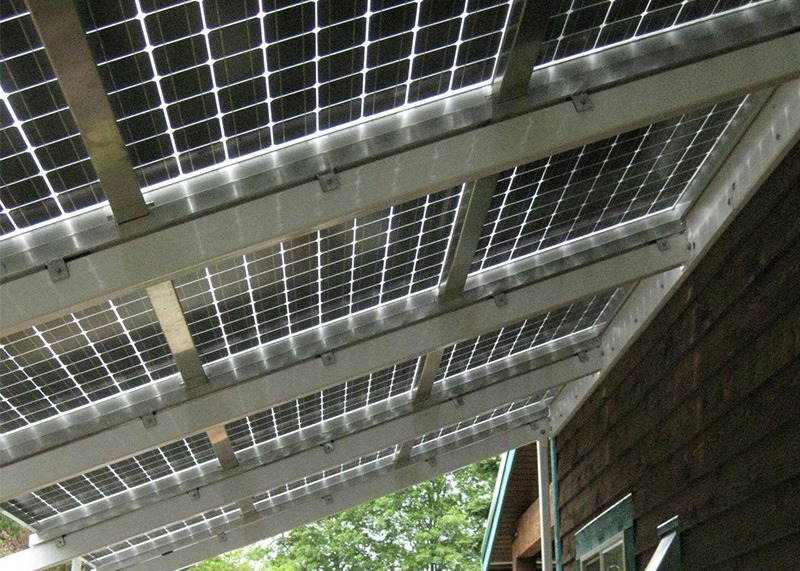

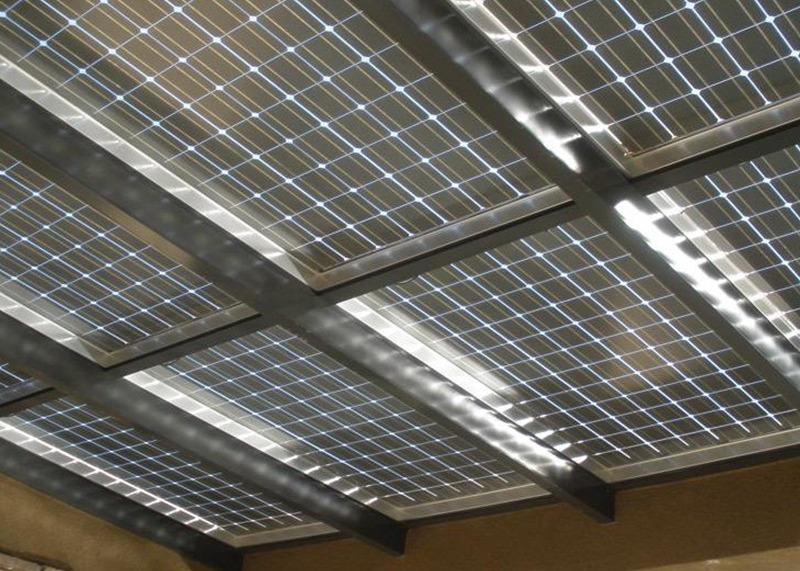

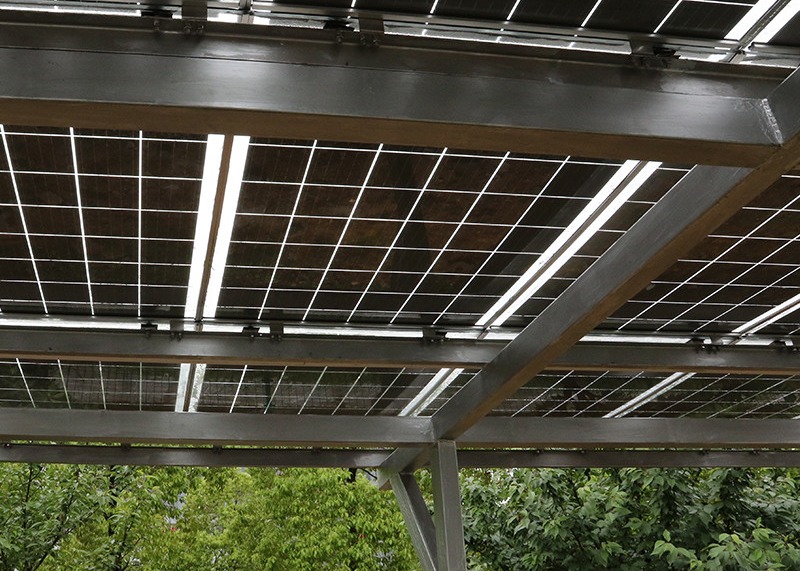

BIPV Bifacial PV Components

Monocrystalline Laminated Glass Module DDM-215C



High Efficiency Monocrystalline PV Module Bifacial 0

High Efficiency Monocrystalline PV Module Bifacial 1

Performance Parameters

Model DDM-215C
Maximum power at STC (Pm/Wp) 215
Maximum power voltage (Vmp/V) 21.0
Maximum power current (lmp/V) 10.24
Open circuit voltage (Voc/V) 26.0
Short circuit current (Isc/A) 11.27
Transparent (%) 18.5
Working temperature (℃) -40~ +85
Fault structure (mm) 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
Cable 4m㎡/300mm
Dimension (mm) 1730mm*715mm
Weight (kg) 21.8kg
Wind loads resistance 2.4KN/㎡
Cells No. 40 (10*4)

*STC (AM1.5,1000w/㎡,cell temperature 25℃)

                                                 10-year material & workmanship warranty

30-year linear power warranty



High Efficiency Monocrystalline PV Module Bifacial 2High Efficiency Monocrystalline PV Module Bifacial 3High Efficiency Monocrystalline PV Module Bifacial 4

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.

Formed in 2001, the company is headquartered in Wuhan.It has two manufacturing bases, with area 180000 square meters and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.

With core products covering high efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become great PV companies in terms of its scale and the leading expertise in China.

We use top-quality solar cells and EVA, TPT, strengthen glass, seal silicone etc. Our experienced staffs work together well to assurance quality under effective ISO system, CE, to assure our quality Our products are exported to Europe, America and Asian countries with safety certificates.

Our value is coordination, innovation, sincerity, service. We will make unremitting efforts to be your great partner on your path of the photovoltaic wealth.

High Efficiency Monocrystalline PV Module Bifacial 5

RFQ

Q1 : What about delivery time?

A : Samples:within 7 working days.

Goods : 7-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

  1. year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.



Self-branded

Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team



Certificate standard

Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
