BIPV DDM-105C Bifacial PV Components

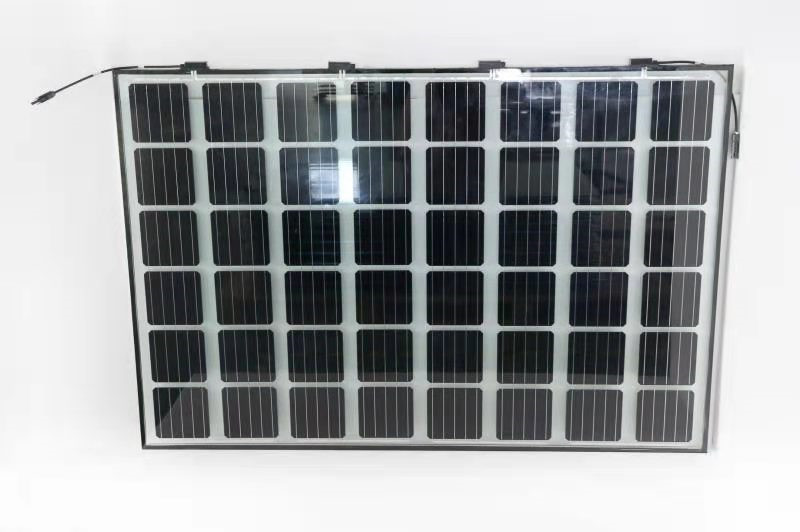

Monocrystalline Laminated Glass Module DDM-105C
|Maximum power at STC (Pm/Wp)||105|
|Maximum power voltage (Vmp/V)||11.0|
|Maximum power current (lmp/V)||9.55|
|Open circuit voltage (Voc/V)||13.0|
|Short circuit current (Isc/A)||10.51|
|Working temperature (℃)||-40~ +85|
|Fault structure (mm)||3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass|
|Wind loads resistance||2.4KN/㎡|
|Cells No.||20 (5*4)|
*STC (AM1.5,1000w/㎡,cell temperature 25℃)
10-year material & workmanship warranty
30-year linear power warranty
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies, committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan.It has two manufacturing bases, with area 180000 square meters and fully automatic production lines. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, manufacturing, integration and service etc.
With core products covering high efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become great PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA, TPT, strengthen glass, seal silicone etc. Our experienced staffs work together well to assurance quality under effective ISO system, CE, to assure our quality Our products are exported to Europe, America and Asian countries with safety certificates.
Our value is coordination, innovation, sincerity, service. We will make unremitting efforts to be your great partner on your path of the photovoltaic wealth.
Q1 : What about delivery time?
A : Samples:within 7 working days.
Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.
High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
