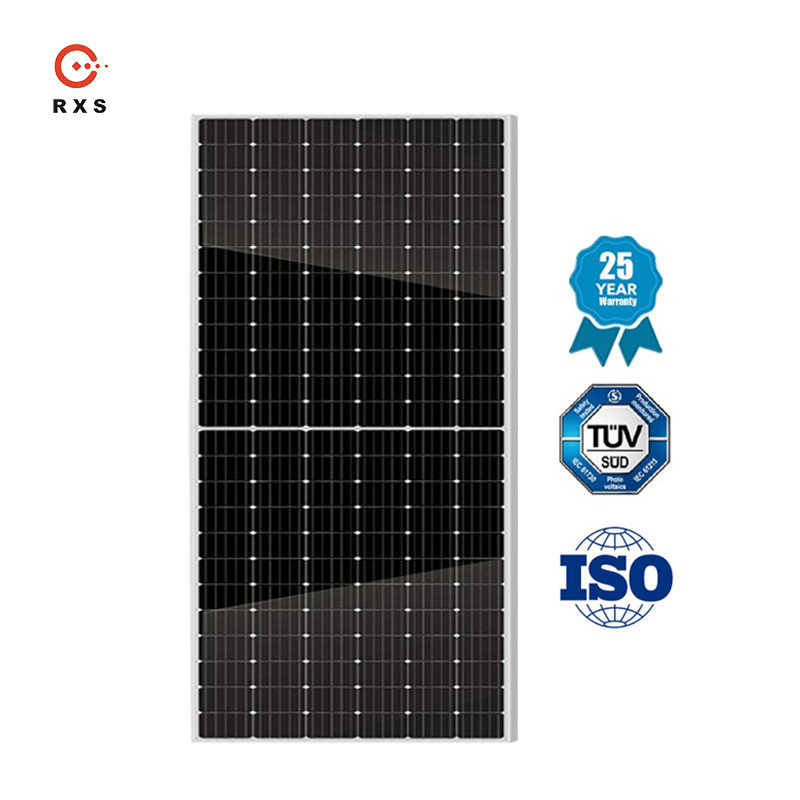

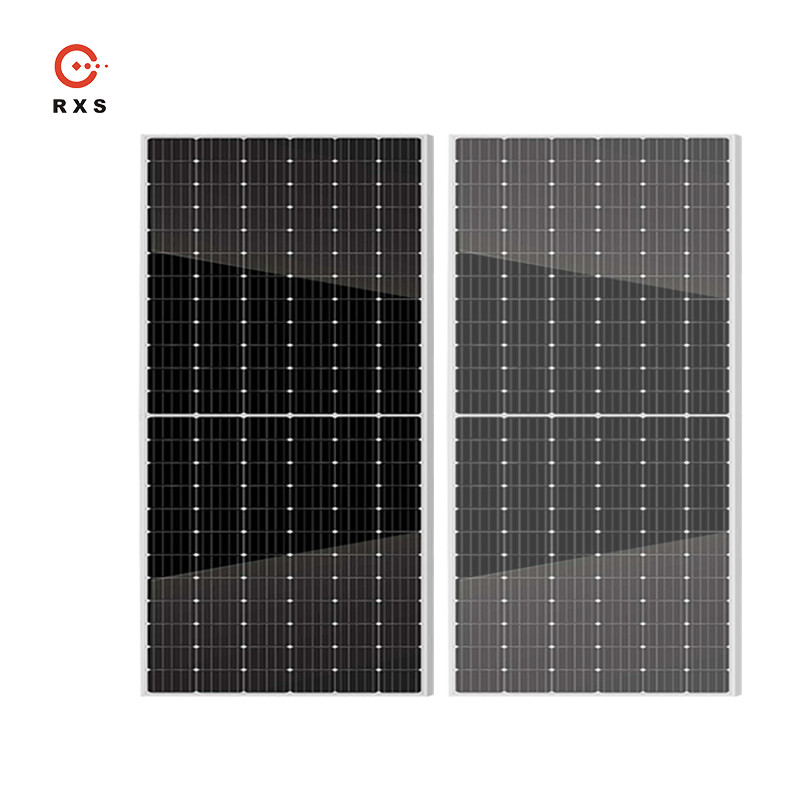

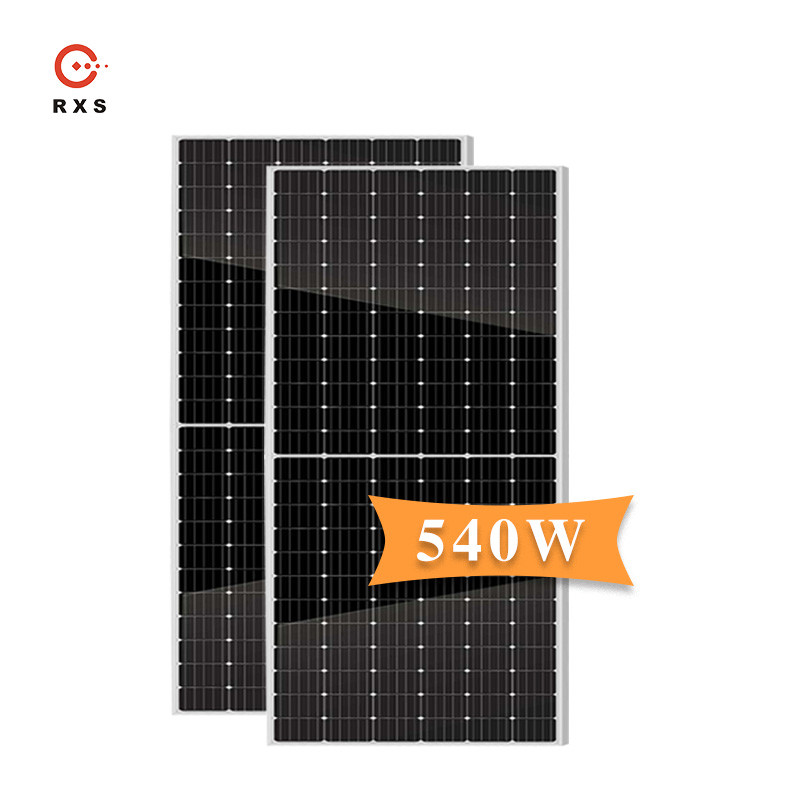

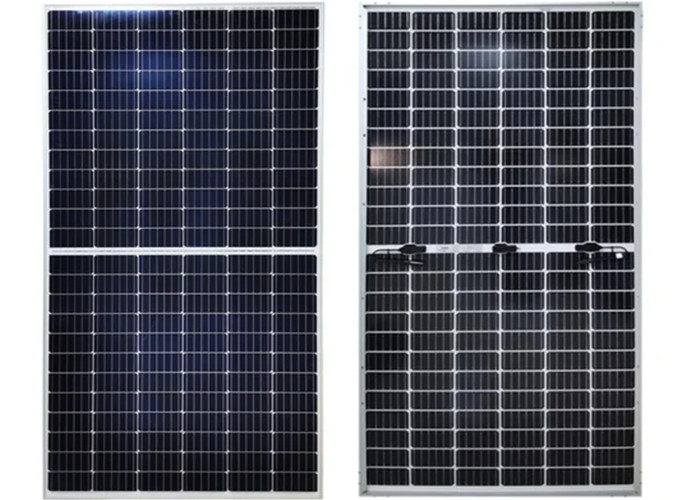

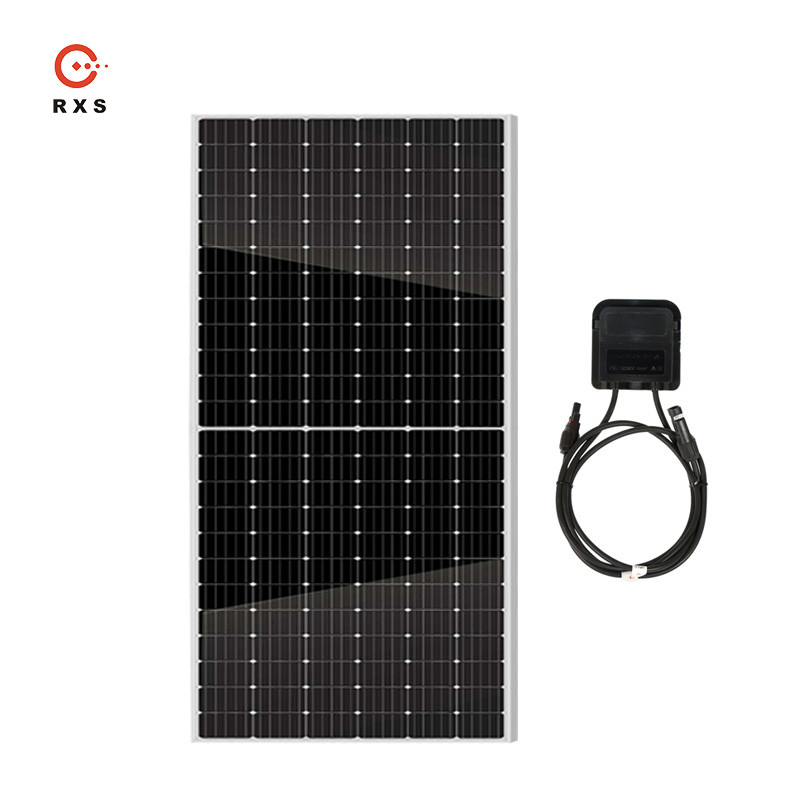

High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules
1PC
MOQ
Negotiable
Price
High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG(P)540(K)
High Light:

540W Mono Solar Power Panel

,

540W BIPV Power Panel

,

540W BIPV Bifacial PV Modules

Payment & Shipping Terms
Packaging Details: 124 PCS/20GP,620pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 540W
Dimension: 2285*1134*35mm
Power Tolerance: -0~+5%
Efficiency: 20.83%
Warranty: 25 Years Output Power Gurantee
Cell Type: 144 Cell Half Cut PERC Solar Panel
Weight: 32.1Kgs
Solar Panel Type: Double Glass
Product Description

High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules



Key Features





1. M Busbar Solar Cell

M Busbar Solar Cell design improves module efficiency and offers better aesthetic appearance for rooftop installation.



2. High Efficiency
Higher module conversion efficiency(up to 21.22%) benefit from Passivated Emmiter Rear Contact (PERC) technology.



3. PID Resistance
Excellent Anti-PID performance guarantee limited power degradation for mass production.



4. Low-light Performance

Advanced glass and cell surface textured design ensure excellent performance in low-light environment.



5. Severe Weather Resilience

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).



6. Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance certified by TUV NORD.





Advantages:





1. Low voltage-temperature coefficient allows higher power output at high-temperature condition

2. High efficient, high reliable solar cells ensure our product output stability

3. Full products certified with certificate ISO 9001 and ISO , CE , TUV, IEC/EN61215 IEC/EN61730

4. We offer 10 years product warranty ,25 years lifespan







Electrical performance parameters

 High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DDG(P)540(K)
Maximum power (Pm/Wp)

540

Maximum power voltage (Vmp/V) 42.09
Maximum power current (Imp/A) 12.83
Open circuit voltage (Voc/V) 49.91
Short circuit current (Isc/A) 13.58
Module efficiency (%) 20.83
Normal operating cell temperature (NOCT) 45±2℃
Temperature coefficient of Voc -0.3%/℃
Temperature coefficient of Isc 0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 2285*1134*35
Cell dimension(mm) 182mm Mono cells
Module weight (kg) 32.1
Cable cable section-4mm2 length-1000mm
Cell Nos & array 144(2*6*12)
Packing 124pcs/20GP; 620pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free





Drawing(mm)


High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules 0

High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules 1






Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

High Efficiency Mono Solar Power Panel 540W BIPV Bifacial PV Modules 2

Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.



After 19 years development, Rixin Technology has completed more than 1500 PV power plants, and built good business relationship with the clients all over the world. The full range of Rixin Technology’s products cover BIPV, PV modules, PV street lights, Household power generation system, commercial distributed generation system, and utility-scale power system. Rixin Technology’s products have obtained TUV, CE, ISO14001, ISO9001, OHSAS18001 etc. international certificates.
