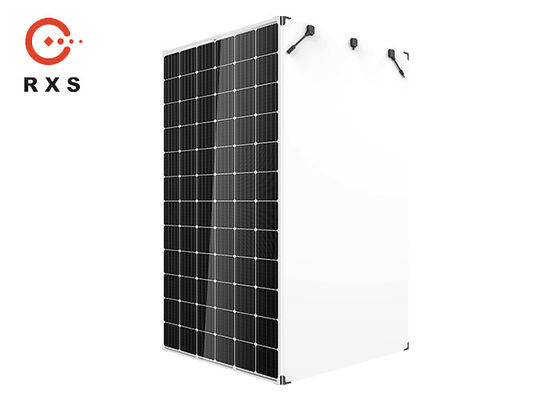

High Efficiency Transparent BIPV solar panels Monocrystalline 390W Solar Panel
840PCS/HQ
MOQ
Negotiable
Price
High Efficiency Transparent BIPV solar panels Monocrystalline 390W Solar Panel
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG(N)390
High Light:

Transparent 390W BIPV Solar Panels

,

Monocrystalline 390W BIPV Solar Panels

,

390W bipv solar modules

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 390W
Dimension: 1974*992*6mm
Efficiency: 19.90%
Life Span: 30 Years
Number Of Cells: 72pcs
Type: Double Glass Solar Panel
Product Description

Trustworthy High Efficiency Transparent BIPV Panel Monocrystalline 390W Solar Panel



This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power . At the same time charging battery. This is very suit for home use.



Electrical performance parameters

Trustworthy High Efficiency Transparent BIPV Panel Monocrystalline 390W Solar Panel
Electrical performance parameters
Test condition: irradiance=(1+0.1BiFi)1000W/m2, ambient temperature=25℃, AM=1.5
Model DDG(N)390
Maximum power (Pm/Wp) 390
Maximum power voltage (Vmp/V) 37.5
Maximum power current (Imp/A) 10.40
Open circuit voltage (Voc/V) 46.60
Short circuit current (Isc/A) 10.92
Module efficiency (%) 19.9
Electrical performance parameters (NOCT)
NOCT: irradiance=(1+0.1BiFi)800W/m2, ambient temperature=20℃, AM=1.5, wind speed=1m/s
Maximum power (Pm/Wp) 290
Maximum power voltage (Vmp/V) 34.60
Maximum power current (Imp/A) 8.39
Open circuit voltage (Voc/V) 43.40
Short circuit current (Isc/A) 8.81



General performance parameters

Mechanical performance parameters
Cell Nos & array 72 (6*12)
Diode Nos 3
Junction box IP68, split
Cable 4mm2, 300mm, length custom
Weight(kg) 28
Dimension (L*W*H) (mm) 1974*992*6 (junction box thickness 23mm)
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Temperature coefficient (STC)
Temperature coefficient of Voc -0.300%/℃
Temperature coefficient of Isc +0.048%/℃
Temperature coefficient of Pm -0.380%/℃
Quality parameters
Working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V) DC1500
System maximum protection current (A) 15
NOCT(℃) 45±2℃
Front/rear static loads(Pa) 5400/2400
Bifacial factor ≥85%
Hot spot 100% hot spot free




Main Features

1. High power output

30 year linear performance warranty, more than 30% additional power gain.



2. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.



3. Fire safety performance

Higher fire safety class to minimize fire risks.



4. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.



5. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.





Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty



Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.





High Efficiency Transparent BIPV solar panels Monocrystalline 390W Solar Panel 0High Efficiency Transparent BIPV solar panels Monocrystalline 390W Solar Panel 1
