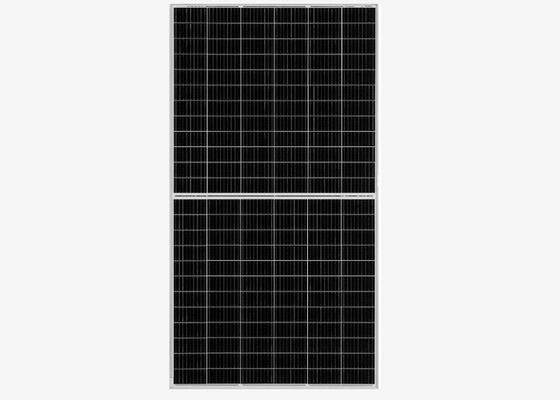

390W Mono PECR Half Cut Solar Panels With Double Glass Construction
1PC
MOQ
Negotiable
Price
390W Mono PECR Half Cut Solar Panels With Double Glass Construction
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DBG410(P)
High Light:

390W Mono PECR Half Cut Solar Panels

,

41w Mono PECR Half Cut Solar Panels

,

390 Watt half cell mono panels

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ,660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 390W
Dimension: 2008*1002*40mm
Power Tolerance: -0~+3%
Efficiency: 19.38%
Life Span: 25 Years
Type: 144 Cell Half Cut PERC Solar Panel
Weight: 22.5Kgs
Back Sheet: Co-excrusion Backsheet
Product Description

         390W Half Cut Mono Cell Solar Panel With Double Glass Construction

Main Features
1. Positive power tolerance (0~+3W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

7.Half cut cell technology: increase power optput,reduce the module size



Electrical performance parameters

390W Half Cut Mono Cell Solar Panel With Double Glass Construction
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBG390(P)
Maximum power (Pm/Wp) 390
Maximum power voltage (Vmp/V) 49.3
Maximum power current (Imp/A) 10.12
Open circuit voltage (Voc/V) 41.1
Short circuit current (Isc/A) 9.39
Module efficiency (%) 19.38
Normal operating cell temperature (NOCT) 45±2℃
Temperature coefficient of Voc -0.0.289%/℃
Temperature coefficient of Isc 0.048%/℃
Temperature coefficient of Pm -0.36%/℃
Power tolerance (W) 0~+3



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 2008*1002*40
Cell dimension(mm) 158.75*79.375 poly
Module weight (kg) 22.5
Cable cable section-4mm2 length-1000mm
Cell Nos & array 144(2*6*12)
Packing 30pcs/pallet, 22pallets/40HQ, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free









Applications:



On-grid residential roof-tops

On-grid commercial/industrial roof-tops

Building fences

Building Curtains

Parking Shade



Advantages:



1). Enjoy our Excellent quality, competitive price, prompt delivery and on-time service

2). High efficiency, high safety, High stability ,high reliability

3). Customized design is available, OEM is welcomed

4). Optimized Packaging to protect product during loading and delivery .

5). Strong productive ability and quick delivery .

Drawing(mm)
390W Mono PECR Half Cut Solar Panels With Double Glass Construction 0



390W Mono PECR Half Cut Solar Panels With Double Glass Construction 1



390W Mono PECR Half Cut Solar Panels With Double Glass Construction 2







Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

390W Mono PECR Half Cut Solar Panels With Double Glass Construction 3
