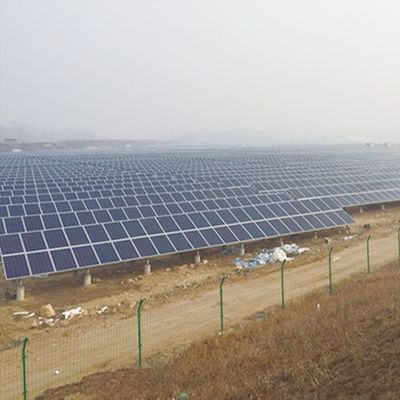

Rixin Adjustable High Efficiency Bifacial Solar Panels Solar PV Ground Solar Systems
| PERC 182mm BIPV Mono Bifacial Double Glass Module DDP(P)400~410(K) | |||
| Electrical performance parameters | |||
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |||
| Type | DDP(P)400(K) | DDP(P)405(K) | DDP(P)410(K) |
| Maximum power(Pm/Wp) | 400 | 405 | 410 |
| Maximum power voltage(Vmp/V) | 31.30 | 31.54 | 31.78 |
| Maximum power current(lmp/A) | 12.78 | 12.84 | 12.90 |
| Open circuit voltage(Voc/V) | 37.54 | 37.79 | 38.03 |
| Short circuit current(Isc/A) | 13.52 | 13.58 | 13.64 |
| Module efficient(%) | 20.45 | 20.64 | 20.83 |
| Module working temperature range (℃) | 45±2℃ | ||
| Temperature coefficient of Voc | -0.275%/℃ | ||
| Temperature coefficient of Isc | 0.05%/℃ | ||
| Temperature coefficient of Pm | -0.35%/℃ | ||
| Power tolerance(W) | 0~+5 | ||
| Mechanical performance parameters | |||
| Module dimension (L*W*H)(mm) | 1722*1134*35 | ||
| Module weight (kg) | 24 | ||
| Cable | 4m㎡ negetive300mm, positive300mm | ||
| Junction box/Connector | Ip68,split / MC4 compatible | ||
| Cell Nos & array | 108(6*9*2) | ||
| Packing | 31pcs/pallet | ||
| Quality parameters | |||
| NOCT(℃) | -40~+85 | ||
| Maximum system voltage(V) | 1500DC | ||
| System maximum protection current(A) | 25 | ||
| Front/rear static loads(Pa) | 2400/5400 | ||
Datasheet of Adjustable Pole Racking Solar Pv Ground Mounting System
| Technical Information | |
| Tilt Angle | 5~60 degree |
| Max Wind Speed | 23.8 m/s |
| Max Snow Load | 0.55 KN/m2 |
| Material | Galvanized Steel S550GD+Z350 |
| Warranty | 10 Years |
RFQ
Q1 : What about delivery time?
A : Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
