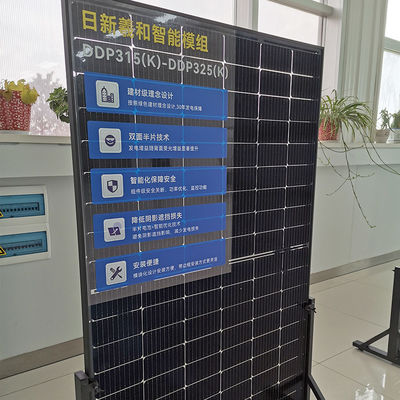

High Hot-spot Resistance Bifacial Solar Panels High Corrosion Resistance Solar Panel
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 144 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 2.0 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 32.1 |
| Module dimension (L*W*H)(mm) | 2285*1134*35mm |
| Packing | 31pcs/pallet |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 25 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 / 5400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Datasheet of Great Strength and Strong Weatherability Solar Panel Mounting Brackets
| SPECIFICATION | |||||
| Description | Ground mounting | Roof bracket | Carport | Agricultural bracket | Single column stand |
| Field status | open area | ||||
| Max wind load | ≤60m/s | / | <46m/s | <46m/s | ≤46m/s |
| Height | Depending | ||||
| Snow load | Depending | ||||
| Tilt Angle | 0~45° | As per requirement | 0~45° | 0~30° | 0~45° |
| Mount Directions | Vertical,horizontal | ||||
| Standard | GB/T2518-2008 & GB/T10125-2012 | ||||
| Body material | S550GD+Z350 | ||||
| Bolt material | SUS304 | ||||
| Base material | Q235/Cement | ||||
| Surface treatment | Galvanized mg-al | ||||
| Warranty | 10 Years | ||||
Rixin Solar Galvanized Steel Ground Mount System is available for your agricultural, commercial, and residential applications. This systems makes solar power accessible without the need of a roof for installation. Ground-mounted solar system is affordable, durable, efficient and quick to install.
Design parameters
-Basic wind pressure: 0.35kN/m2;
-Basic snow pressure:0.55kN/m2
-Regional limit maximum wind speed: 23.8m/s
-Stent spacing for base plate :3000mm;
-Stents Angle: 22 degree
Light, thin and strong steels, enabling the design of efficient and cost-effective solar structures.
These steel grades allow to create lighter structures, and their higher resistance offers new design opportunities.
Strong Corrosion Resistance.
Ground screw foundation and concrete foundation can be acceptable
Parts have been high pre-assembly on factory to save your installation time
Simple and fast installation
High quality galvanized steel material
Quick delivery
Advantages
Up to 25 years' product warranty on anti-corrosion coating
High durability
Extremely high corrosion resistance
Magnelis ability for self-repair
No electrocorrosion effect
Safety and standards confirmed by certificates
Test method
-Test method: GB/T10125-2012-Sample placement: 15°~25° with vertical direction
-Settlement salt solution concentration: (50+/-5) g/l NaCl
-Temperature inside the test chamber: (35+/-2) ºC
-Settlement rate of salt spray: 1~2ml (80cm2.h)
-Settlement salt solution pH value (25ºC+/-2ºC): 6.5~7.2-Exposure time: 720 hours (check once every 96 hours)
-Cleaning method: natural dry for 0.5~1.0 hours, then rinse with water of temperature not higher than 40ºC, then dry immediately.
Why choose us for your solar system PV mounting brackets?
-Super anti-rusting performance
-High precision of structure material
-Save raw material, and cost 20%
-200MW monthly production capacipty, ensures short lead production time
-Perfect finish of structure material, hence the nice solar mounting effect
