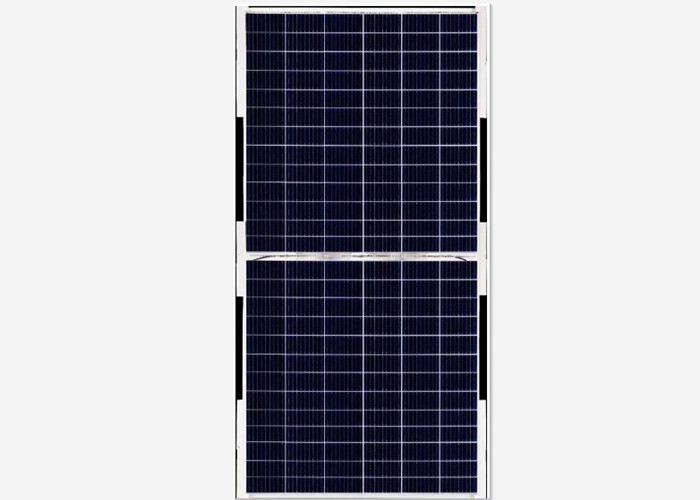

445 Watts Monocrystalline PV Module
620pcs/HQ
MOQ
Negotiable
Price
445 Watts Monocrystalline PV Module
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: LR4-72HBD
High Light:

445 Watts Monocrystalline PV Module

,

Bifacial Monocrystalline PV Module

,

445 Watts crystalline solar panel

Payment & Shipping Terms
Packaging Details: 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 3GW/YEAR
Specifications
Power: 445W
Dimension: 2094*1038*35mm
Efficiency: 20.5%
Life Span: 30 Years
Name: 445 Watts Half - Cut Bifacial Monocrystalline Modules
Weight: 27.5 Kgs
Product Description



445 Watts Half - Cut Bifacial Monocrystalline Modules



Module characteristic Of 445 Watts Half - Cut Bifacial Monocrystalline Modules :

1. High conversion rate and efficient output Poly crystalline Silicon.

2. Mini Solar Panels with excellent weak light effect to charge solar kits system.

3. High quality and high transmittance of toughened glass special for mini solar panels.

4. The unique process makes the components look strong and anti-snow, and easy to install.

5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.

6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.





Electrical performance parameters Of 445 Watts Half - Cut Bifacial Monocrystalline Modules :

445 Watts Half-cut Bifacial Monocrystalline Modules
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model LR4-72HBD
Maximum power (Pm/Wp) 445
Maximum power voltage (Vmp/V) 41.2
Maximum power current (Imp/A) 11.34
Open circuit voltage (Voc/V) 49.4
Short circuit current (Isc/A) 11.52
Module efficiency (%)



General performance parameters Of 445 Watts Half - Cut Bifacial Monocrystalline Modules :

Mechanical performance parameters
Cell Nos & array 144(6*24)
Diode Nos 3
Cells dimension(mm) 156.75*156.75 mono
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 23
Module dimension (L*W*H) (mm) 2094*1038*35mm
Packing 30pcs/carton, 150pcs/20GP, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.284%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.35%/℃



Drawing(mm) Of 445 Watts Half - Cut Bifacial Monocrystalline Modules :





445 Watts Monocrystalline PV Module 0



Quality Warranty Of 445 Watts Half - Cut Bifacial Monocrystalline Modules :

10-year materials&workmanship warranty

30-year linear power warranty



445 Watts Monocrystalline PV Module 1
