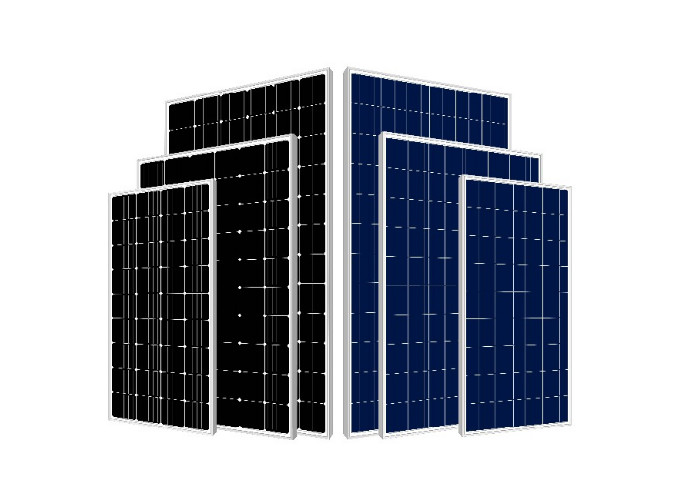

325W Solar Photovoltaic Module
325W Solar Photovoltaic Module
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: Solar Photovoltaic Module
High Light:

325W Solar Photovoltaic Module


16.7% Solar Photovoltaic Module


325W polycrystalline solar panel

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3GW/year
Name: 325 Watt Solar Photovoltaic Module
Power: 325 Watt
Dimension: Customized
Efficiency: 16.7%
Life Span: 25 Years
Frame: Aluminium
Product Description

Low LID CE Certificate 325 Watt Solar Photovoltaic Module




  • Outstanding electrical performance under high temperature and low irradiance;
  • It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;
  • The size and shape can be customized;
  • Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.
  • Quality solar cells with high solar energy conversion up to 19.5%.
  • Mono-crystalline or poly-crystalline silicon solar cells are for options.
  • Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
  • Lifespan up to 25 years.
  • ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
  • Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
  • Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.


Electrical performance parameters of Solar PV Module​


Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model MBM275 Solar Photovoltaic Module
Maximum power (Pm/Wp) 275
Maximum power voltage (Vmp/V) 31.50
Maximum power current (Imp/A) 8.73
Open circuit voltage (Voc/V) 38.41
Short circuit current (Isc/A) 9.39
Module efficiency (%) 16.70
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5


General performance parameters of Solar PV Module​


Mechanical performance parameters
Module dimension (L*W*H) (mm) 1650*992*35
Cell dimension(mm) 156.75*156.75 poly
Module weight (kg) 19
Cable cable section-4mm2 length-900mm
Cell Nos & array 60(6*10)
Packing 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free

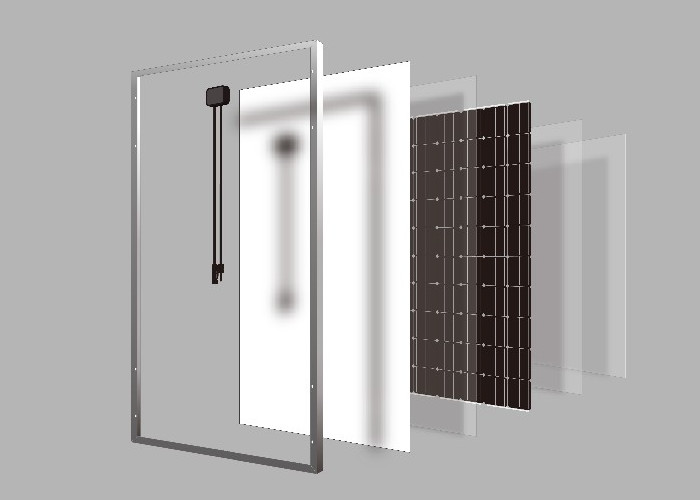

Solar Cells

• High Efficiency PV Cells • Appearance Consistency • Color sorting ensure consistent appearance on each module • Anti-PID

Aluminum Frame

• Strong mechanical load resistance up to 5400 Pa,Serrated-clip design tensile strength • Anodic oxidation layer resistant chemical corrosion • Boost bearing capability and prolong service life • Silver and black color optional


• Excellent electric insulation for high system voltage up to 1500V • Low moisture permeability against snail trail defect • Outstanding weatherproof performance

EVA Film

• UV resistance against ageing • Light transmittance more than 92% • Small trail prevention treatment

Junction Box

• Heat dissipation for long service life• High quality diodes for electric safety • 1000V system voltage available • Conventional standalone edition and engineering custom edition

FEATURES INCLUDE: 144 half-cells (158.75mm) connected in series Positive power tolerance of 0~3% improves system performance Industry-leading module efficiency: maximum efficiency of 20.1% Tested up to 5400Pa for maximum load resistance Verified resistance against PID effects Progressive Power Warranty guarantees 80.7% of rated power at 25 years Manufactured globally with world-class quality standards Strict salt spray and ammonia corrosion test by TUVsud.


Our advantages


1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.


2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.


3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.


4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.


5, 25 years warranty
