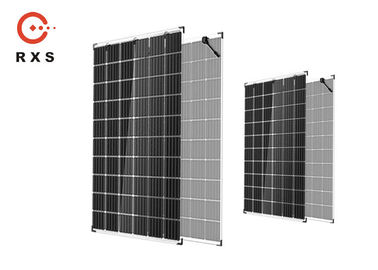

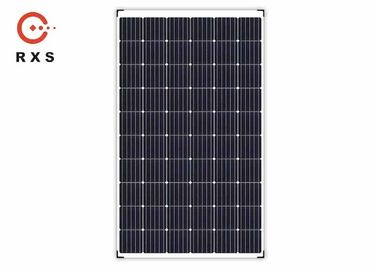

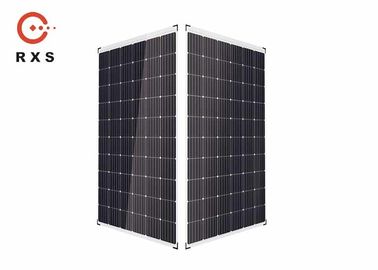

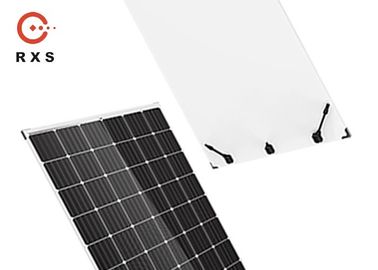

280W 285W 290W Solar Monocrystalline Panel Double Glass With 60 Cells
280W 285W 290W Solar Monocrystalline Panel Double Glass With 60 Cells
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDM285
High Light:

high efficiency monocrystalline solar cells


monocrystalline solar module

Payment & Shipping Terms
Packaging Details: 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 3GW/YEAR
Power: 285W
Dimension: 1658*992*6mm
Efficiency: 17.32%
Life Span: 30 Years
Name: Monocrystalline Solar PV Panel
Type: Dual Glass Double Glass Bificial Solar Panels
Weight: 23 Kgs
Name: Solar Monocrystalline Panel
Product Description


      Top China PV Supplier280W 285W 290W Double Glass Cheap Monocrystalline Solar Panel With 60 Cells


Solar cells applications:

1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications


Main Features

1. Outstanding module performance

Anti PID

High hot-spot resistance

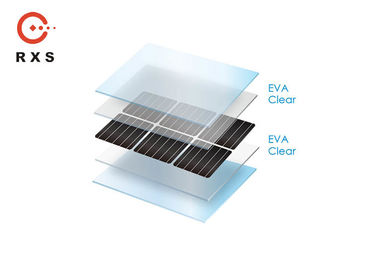

Double semi-tempered glasses strengthen cracking resistance

Improve heat dissipation


2. Ensure fire safety performance

Replace polymer back plate with tempered glass, to improve fire safety performance

Passed fire safety test grade A


3. System cost reduction makes more efficiency

Maximum system voltage enhanced to 1500V

System overall cost reduced greatly, compared with 1000V system

30-year linear power warranty, only 0.5% annual linear degradation


4. Harsh environment adaptation

High transmittance, anti reflection, self-cleaning coated glass

No aluminum alloy frame, no PID

Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance


Electrical performance parameters

monocrystalline dual glass solar panel / 285W / 60cells / 20V / transparent
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DDM285
Maximum power (Pm/Wp) 285
Maximum power voltage (Vmp/V) 31.95
Maximum power current (Imp/A) 8.92
Open circuit voltage (Voc/V) 38.8
Short circuit current (Isc/A) 9.64
Module efficiency (%) 17.32


General performance parameters

Mechanical performance parameters
Cell Nos & array 60(6*10)
Diode Nos 3
Cells dimension(mm) 156.75*156.75 mono
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 23
Module dimension (L*W*H) (mm) 1658*992*6(junction box thickness 16mm)
Packing 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.33%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.41%/℃



280W 285W 290W Solar Monocrystalline Panel Double Glass With 60 Cells 0


Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

280W 285W 290W Solar Monocrystalline Panel Double Glass With 60 Cells 1

280W 285W 290W Solar Monocrystalline Panel Double Glass With 60 Cells 2
