350W Energy Saving Monocrystalline PV Module 24V Long Life Span Easy Installation
1PC
MOQ
Negotiable
Price
350W Energy Saving Monocrystalline PV Module 24V Long Life Span Easy Installation
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG350(W)
High Light:

high efficiency monocrystalline solar cells

,

monocrystalline solar module

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 350W
Dimension: 1968*992*6mm
Efficiency: 17.9%
Life Span: 30 Years
Product Description

      monocrystalline dual glass solar panel / 350W / 72cells / 24V / white



Main Features

1. Outstanding module performance

Anti PID

High hot-spot resistance

Double semi-tempered glasses strengthen cracking resistance

Improve heat dissipation



2. Ensure fire safety performance

Replace polymer back plate with tempered glass, to improve fire safety performance

Passed fire safety test grade A



3. System cost reduction makes more efficiency

Maximum system voltage enhanced to 1500V

System overall cost reduced greatly, compared with 1000V system

30-year linear power warranty, only 0.5% annual linear degradation



4. Harsh environment adaptation

High transmittance, anti reflection, self-cleaning coated glass

No aluminum alloy frame, no PID

Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance

GLASS

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)

FRAME

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serra-clip design tensile strength
> Seal-lip designglue injection

Electrical performance parameters

monocrystalline dual glass solar panel / 350W / 72cells / 24V / white
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DDG350(W)
Maximum power (Pm/Wp) 350
Maximum power voltage (Vmp/V) 38.72
Maximum power current (Imp/A) 9.04
Open circuit voltage (Voc/V) 47.2
Short circuit current (Isc/A) 9.76
Module efficiency (%) 17.9



General performance parameters

Mechanical performance parameters
Cell Nos & array 72(6*12)
Diode Nos 3

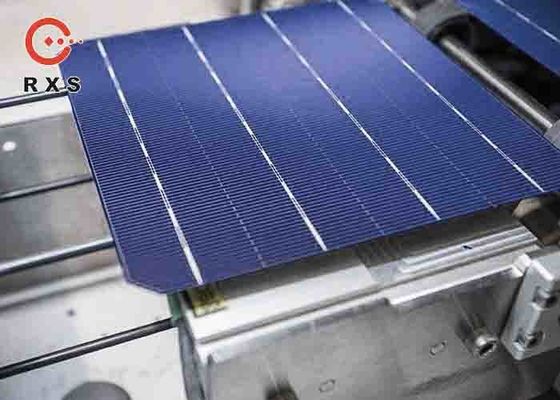

Cells dimension(mm) 156.75*156.75 mono
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 28
Module dimension (L*W*H) (mm) 1968*992*6(junction box thickness 16mm)
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.33%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.41%/℃



Drawing(mm)

350W Energy Saving Monocrystalline PV Module 24V Long Life Span Easy Installation 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

350W Energy Saving Monocrystalline PV Module 24V Long Life Span Easy Installation 1350W Energy Saving Monocrystalline PV Module 24V Long Life Span Easy Installation 2
