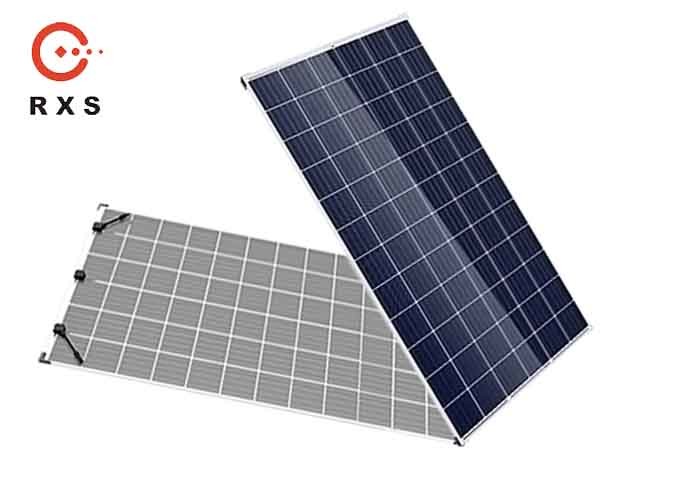

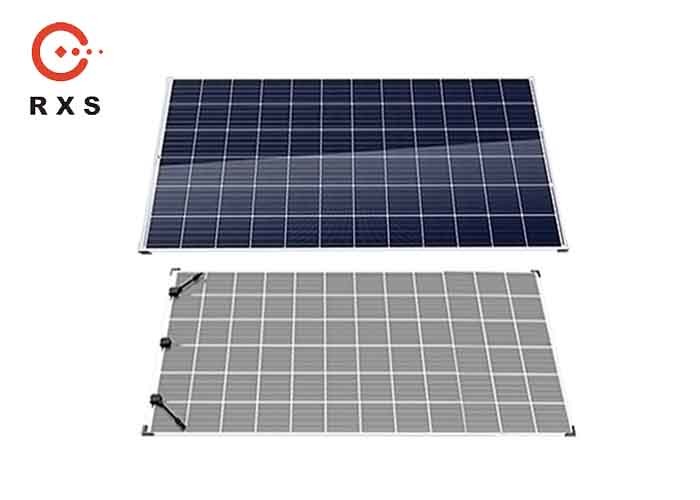

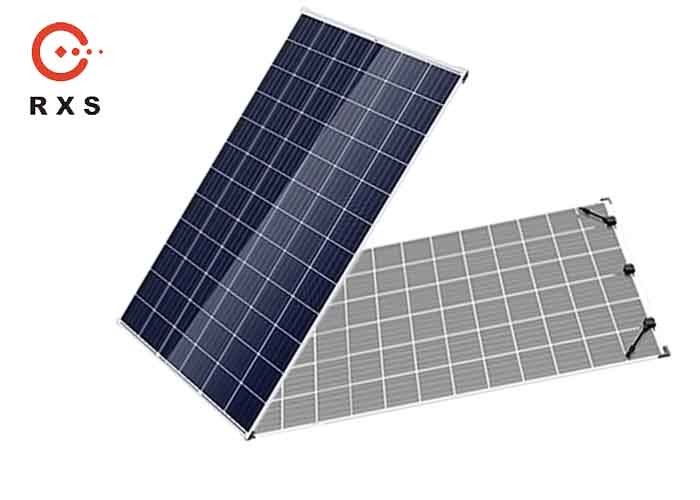

Polycrystalline Dual Glass Solar PV Module 320W 24V With Long Life Span
858PCS/HQ
MOQ
Negotiable
Price
Polycrystalline Dual Glass Solar PV Module 320W 24V With Long Life Span
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: MDG320
High Light:

monocrystalline photovoltaic module

,

solar panel module

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T, L/C,Western Union, MoneyGram
Supply Ability: 3GW/year
Specifications
Power: 320W
Dimension: 1968*992*6mm
Efficiency: 16.4%
Life Span: 30 Years
Product Description

       polycrystalline dual glass solar panel / 320W / 72cells / 24V / transparent



Main Features

1. Outstanding module performance

Anti PID

High hot-spot resistance

Double semi-tempered glasses strengthen cracking resistance

Improve heat dissipation



2. Ensure fire safety performance

Replace polymer back plate with tempered glass, to improve fire safety performance

Passed fire safety test grade A



3. System cost reduction makes more efficiency

Maximum system voltage enhanced to 1500V

System overall cost reduced greatly, compared with 1000V system

30-year linear power warranty, only 0.5% annual linear degradation



4. Harsh environment adaptation

High transmittance, anti reflection, self-cleaning coated glass

No aluminum alloy frame, no PID

Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance



Electrical performance parameters

polycrystalline dual glass solar panel / 320W / 72cells / 24V / transparent
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model MDG320
Maximum power (Pm/Wp) 320
Maximum power voltage (Vmp/V) 37.36
Maximum power current (Imp/A) 8.57
Open circuit voltage (Voc/V) 45.33
Short circuit current (Isc/A) 9.34
Module efficiency (%) 16.40



General performance parameters

Mechanical performance parameters
Cell Nos & array 72(6*12)
Diode Nos 3
Cells dimension(mm) 156.75*156.75 poly
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 28
Module dimension (L*W*H) (mm) 1968*992*6(junction box thickness 16mm)
Packing 30pcs/pallet, 22cartons/40HQ, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃



Drawing(mm)

Polycrystalline Dual Glass Solar PV Module 320W 24V With Long Life Span 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

Polycrystalline Dual Glass Solar PV Module 320W 24V With Long Life Span 1Polycrystalline Dual Glass Solar PV Module 320W 24V With Long Life Span 2
