Multi Crystalline Silicon Solar Panels 270W / 60 Cells / 20V 1650*992*35mm
1PC
MOQ
Negotiable
Price
Multi Crystalline Silicon Solar Panels 270W / 60 Cells / 20V 1650*992*35mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: MBM270
High Light:

polycrystalline solar module

,

polycrystalline silicon solar panels

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 270W
Dimension: 1650*992*35mm
Efficiency: 16.42%
Life Span: 25 Years
Product Description

            Polycrystalline Framed Solar Panel / 270W / 60cells / 20V


Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.



Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model MBM270
Maximum power (Pm/Wp) 270
Maximum power voltage (Vmp/V) 31.37
Maximum power current (Imp/A) 8.61
Open circuit voltage (Voc/V) 38.3
Short circuit current (Isc/A) 9.29
Module efficiency (%) 16.42
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1650*992*35
Cell dimension(mm) 156.75*156.75 poly
Module weight (kg) 19

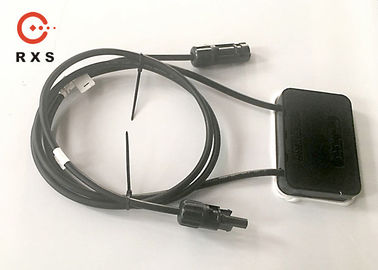

Cable cable section-4mm2 length-900mm
Cell Nos & array 60(6*10)
Packing 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free


Drawing(mm)
Multi Crystalline Silicon Solar Panels 270W / 60 Cells / 20V 1650*992*35mm 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

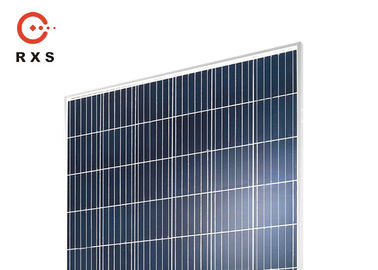

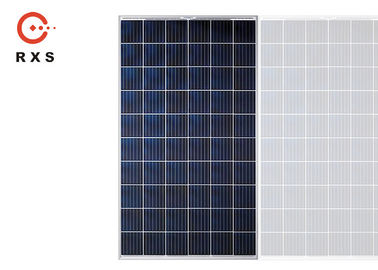

Multi Crystalline Silicon Solar Panels 270W / 60 Cells / 20V 1650*992*35mm 1Multi Crystalline Silicon Solar Panels 270W / 60 Cells / 20V 1650*992*35mm 2
