Bifacial All Black Solar Panels , Monocrystalline Pv Solar Panels With Junction Box
1PC
MOQ
Negotiable
Price
Bifacial All Black Solar Panels , Monocrystalline Pv Solar Panels With Junction Box
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG(N)380
High Light:

monocrystalline photovoltaic module

,

solar panel module

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 380W
Dimension: 1974*992*6mm
Efficiency: 19.40%
Life Span: 30 Years
Name: N Type Solar Panels
Product Description

       N type monocrystalline bifacial dual glass solar panel / 380W / 72cells / 24V



High efficiency N type monocrystalline bifacial dual glass with positive tolerance only
International quality management system with 100% panel power and EL test before shipment
Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved



Main Features

1. High power output

30 year linear performance warranty, more than 30% additional power gain.



2. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.



3. Fire safety performance

Higher fire safety class to minimize fire risks.



4. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.



5. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.



Electrical performance parameters

N type monocrystalline bifacial dual glass solar panel / 380W / 72cells / 24V
Electrical performance parameters
Test condition: irradiance=(1+0.1BiFi)1000W/m2, ambient temperature=25℃, AM=1.5
Model DDG(N)380
Maximum power (Pm/Wp) 380
Maximum power voltage (Vmp/V) 37.3
Maximum power current (Imp/A) 10.19
Open circuit voltage (Voc/V) 46.1
Short circuit current (Isc/A) 10.76
Module efficiency (%) 19.4
Electrical performance parameters (NOCT)
NOCT: irradiance=(1+0.1BiFi)800W/m2, ambient temperature=20℃, AM=1.5, wind speed=1m/s
Maximum power (Pm/Wp) 283
Maximum power voltage (Vmp/V) 34.40
Maximum power current (Imp/A) 8.21
Open circuit voltage (Voc/V) 42.9
Short circuit current (Isc/A) 8.68



General performance parameters

Mechanical performance parameters
Cell Nos & array 72 (6*12)
Diode Nos 3
Junction box IP68, split
Cable 4mm2, 300mm, length custom
Weight(kg) 28
Dimension (L*W*H) (mm) 1974*992*6 (junction box thickness 23mm)
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Temperature coefficient (STC)
Temperature coefficient of Voc -0.300%/℃
Temperature coefficient of Isc +0.048%/℃
Temperature coefficient of Pm -0.380%/℃
Quality parameters
Working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V) DC1500
System maximum protection current (A) 15
NOCT(℃) 45±2℃
Front/rear static loads(Pa) 5400/2400
Bifacial factor ≥85%
Hot spot 100% hot spot free



Frame

1) High quality, strictly quality inspection during production and whole inspection before package
2) Hundreds of standard designs can be available and supplied
3) Simple and easy installation
4) High brightness and hardness
5) Strong coated adhesion
6) Anti-scratch, smoothness




Drawing(mm)

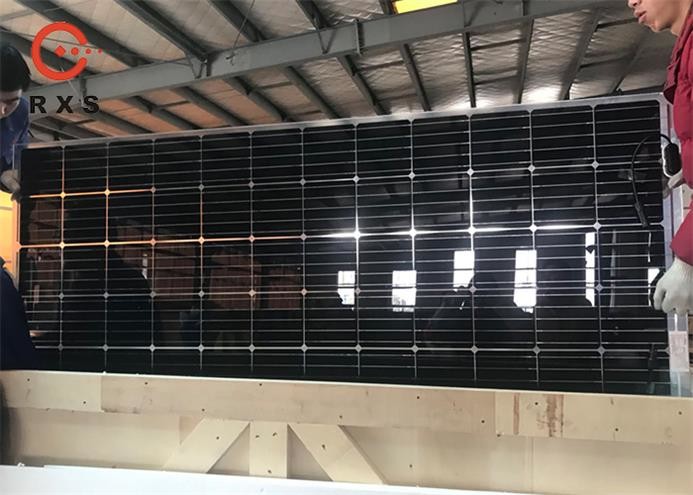

Bifacial All Black Solar Panels , Monocrystalline Pv Solar Panels With Junction Box 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

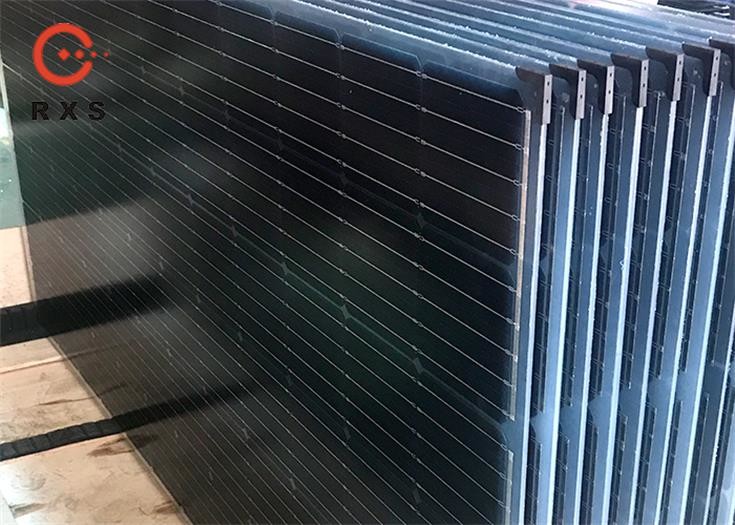

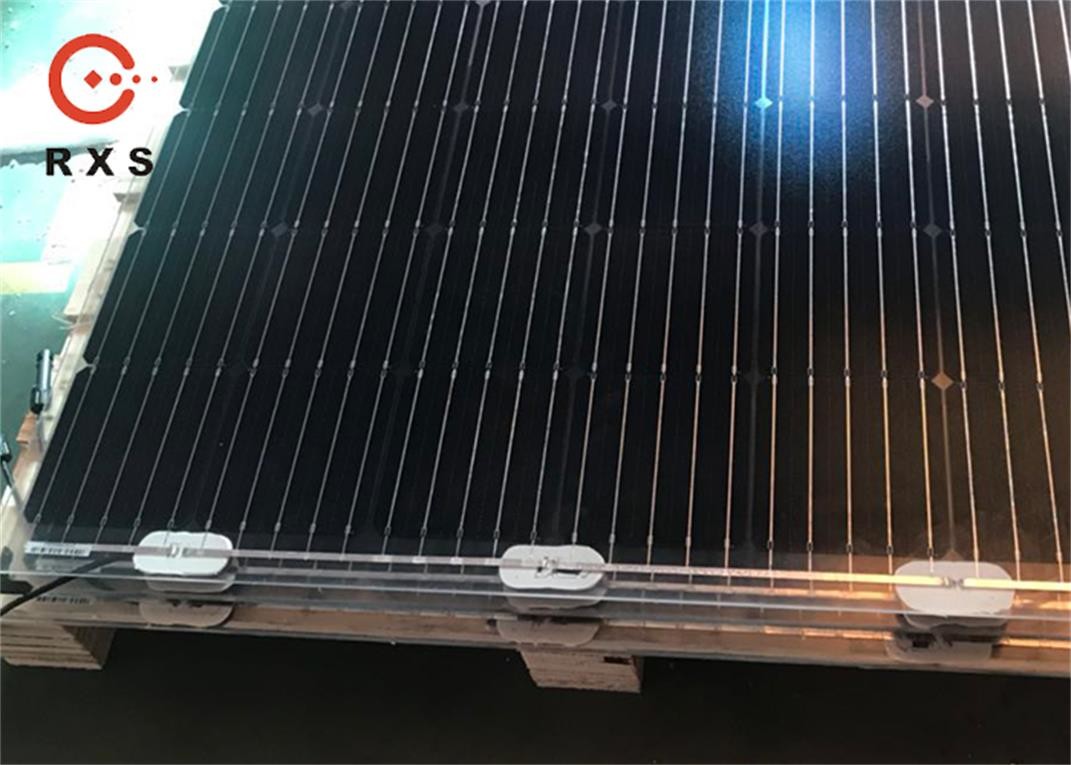

Bifacial All Black Solar Panels , Monocrystalline Pv Solar Panels With Junction Box 1Bifacial All Black Solar Panels , Monocrystalline Pv Solar Panels With Junction Box 2
