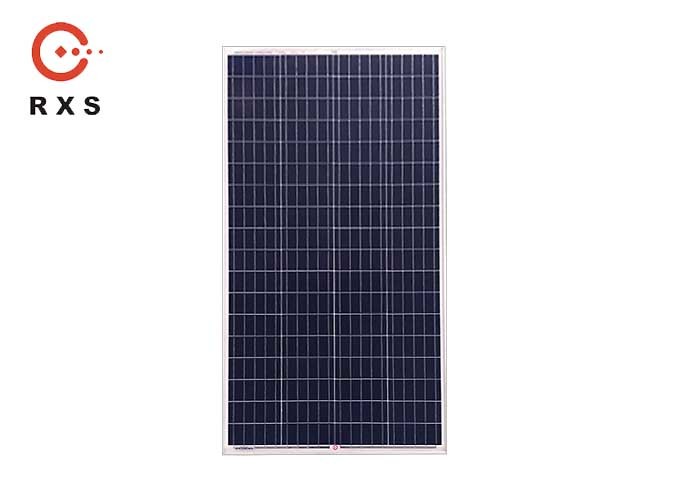

125W Polycrystalline Custom Solar Panels Long Lifespan For Solar Garden Light
858PCS/HQ
MOQ
Negotiable
Price
125W Polycrystalline Custom Solar Panels Long Lifespan For Solar Garden Light
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: MBF125
High Light:

custom size solar cells

,

custom solar cells

Payment & Shipping Terms
Packaging Details: cartons/wooden cases
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3GW/year
Specifications
Power: 125W
Dimension: 1210*670*35mm
Cells: 36cells
Life Span: 25 Years
Product Description

      polycrystalline framed solar panel / 125W / 36cells / 12V

Main Features



1. High conversion efficiency solar cells based on innovative photovoltaic technologies.

2. High stability 100% A grade photovoltaic cells with guaranteed +-3% solar power output tolerance,ensuring investment return.

3. Tempered front glass withstands high wind-pressure and snow load.

4. Easy to install.

5. Over 25-year lifespan.

6. Available for charging 12V/24V battery.

7. Module dimension could be customized.

8. Suitable for solar street light, solar garden light, solar pump etc., on-grid or off-grid system.


Performance parameters



Model MBF125
Dimension (L*W*H) mm 1210*670*35
Weight (kg) 8.92
Cell dimension (mm) 156*124.8
Cell Nos 36 (4*9)
Glass 3.2mm low-iron tempered glass
Frame Anodized aluminum alloy
Mounting holes customized
Junction box protection level IP65
Cable length customized
Connector customized, MC4 compatible
Power tolerance ±5%
Maximum power (Pm/Wp) 125
Maximum power voltage (Vmp/V) 18.5
Maximum power current (Imp/A) 6.76
Open circuit voltage (Voc/V) 22.0
Short circuit current (Isc/A) 7.20



Drawing-sample(mm)
125W Polycrystalline Custom Solar Panels Long Lifespan For Solar Garden Light 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

125W Polycrystalline Custom Solar Panels Long Lifespan For Solar Garden Light 1125W Polycrystalline Custom Solar Panels Long Lifespan For Solar Garden Light 2
