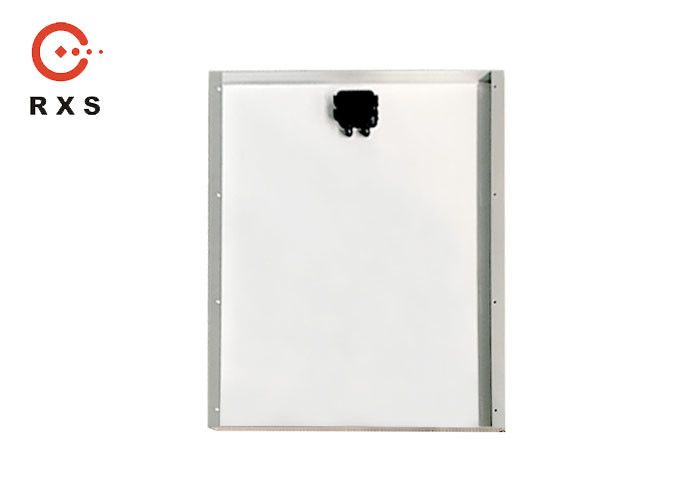

polycrystalline framed solar panel / 80W / 36 cells / 12V
Main Features of polycrystalline framed solar panel

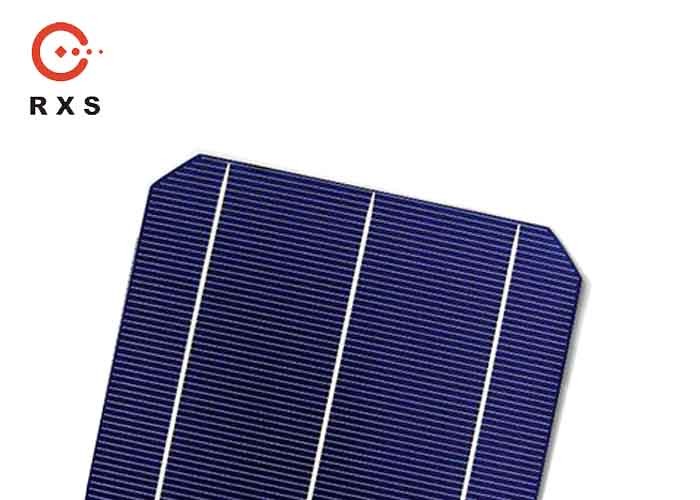

Solar Cell
* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Color sorting ensure consistent appearance on each module
Humanized design
* More protection with practical and effective design
* Prevent the aluminum frame from scratching the hand
* Using the rain to clean dirt remaining on the solar module
Performance parameters
| Model | MBF80 |
| Dimension (L*W*H) mm | 780*670*35 |
| Weight (kg) | 5.87 |
| Cell dimension (mm) | 156*78 |
| Cell Nos | 36 (4*9) |
| Glass | 3.2mm low-iron tempered glass |
| Frame | Anodized aluminum alloy |
| Mounting holes | customized |

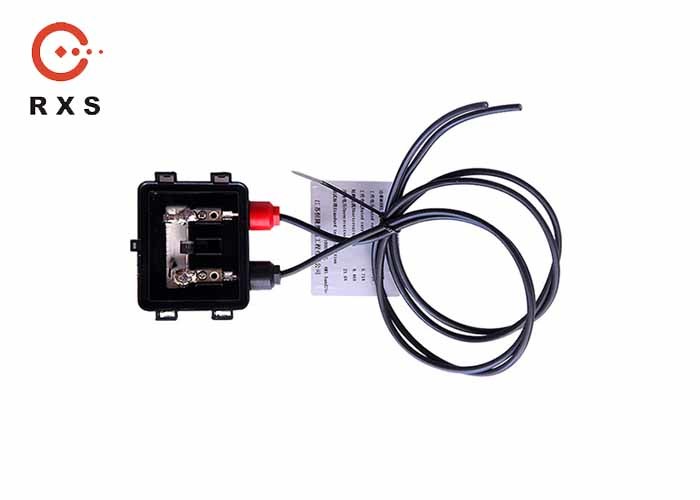

| Junction box protection level | IP65 |
| Cable length | customized |
| Connector | customized, MC4 compatible |
| Power tolerance | ±5% |
| Maximum power (Pm/Wp) | 80 |
| Maximum power voltage (Vmp/V) | 18.5 |
| Maximum power current (Imp/A) | 4.32 |
| Open circuit voltage (Voc/V) | 22.0 |
| Short circuit current (Isc/A) | 4.61 |
Drawing-sample(mm)
Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
