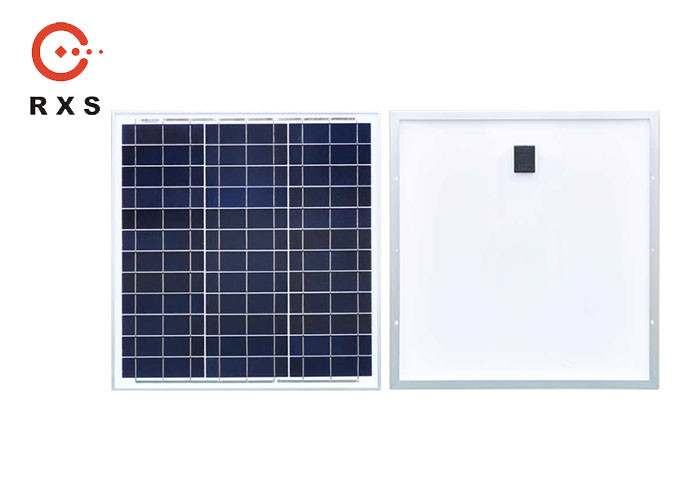

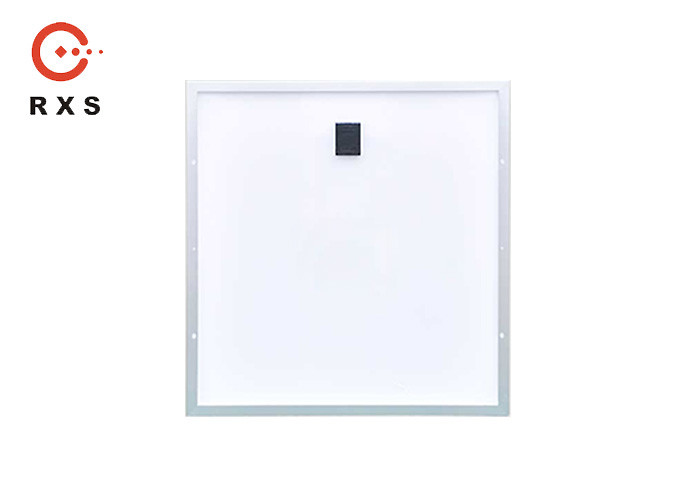

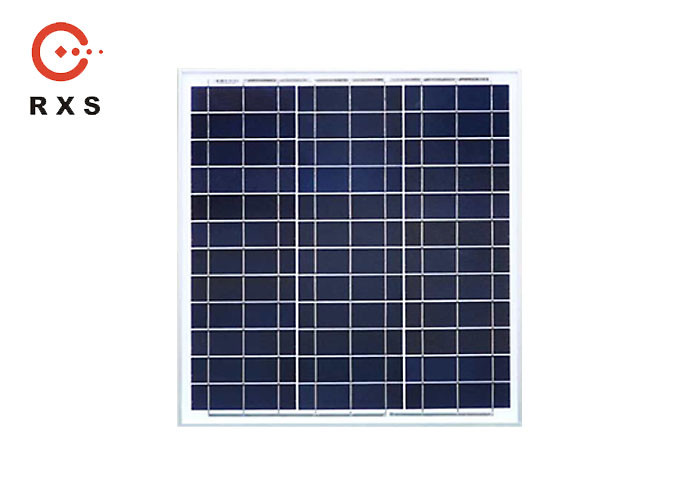

polycrystalline framed solar panel / 40W / 36cells / 12V
1. Over 25-year lifespan.
2. Available for charging 12V/24V battery.
3. Module dimension could be customized.
4. Suitable for solar street light, solar garden light, solar pump etc., on-grid or off-grid system.
* 3.2mm low-iron tempered glass
* Anti-reflective glass
* Self-cleaning function
* Module efficiency is increased by 2%
* Service life is as long as 25 years (30 years optional)
* Translucency of normal luminosity increased by 2%
|Dimension (L*W*H) mm||772*354*25|
|Cell dimension (mm)||78*78|
|Cell Nos||36 (4*9)|
|Glass||3.2mm low-iron tempered glass|
|Frame||Anodized aluminum alloy|
|Junction box protection level||IP65|
|Connector||customized, MC4 compatible|
|Maximum power (Pm/Wp)||40|
|Maximum power voltage (Vmp/V)||18.5|
|Maximum power current (Imp/A)||2.16|
|Open circuit voltage (Voc/V)||22.0|
|Short circuit current (Isc/A)||2.30|
10-year materials&workmanship warranty
25-year linear power warranty
