No PID Shadow loss Transparent Solar Panels With High Temperature Performance
100PCS
MOQ
Negotiable
Price
No PID Shadow loss Transparent Solar Panels With High Temperature Performance
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: Transparent Solar Panels
High Light:

thin film solar cells

,

thin film solar panels for home use

Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 100w 200w 300w 400w 500w
Working Temperature: -40-85℃
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Product Name: Transparent Solar Panels
Product Description

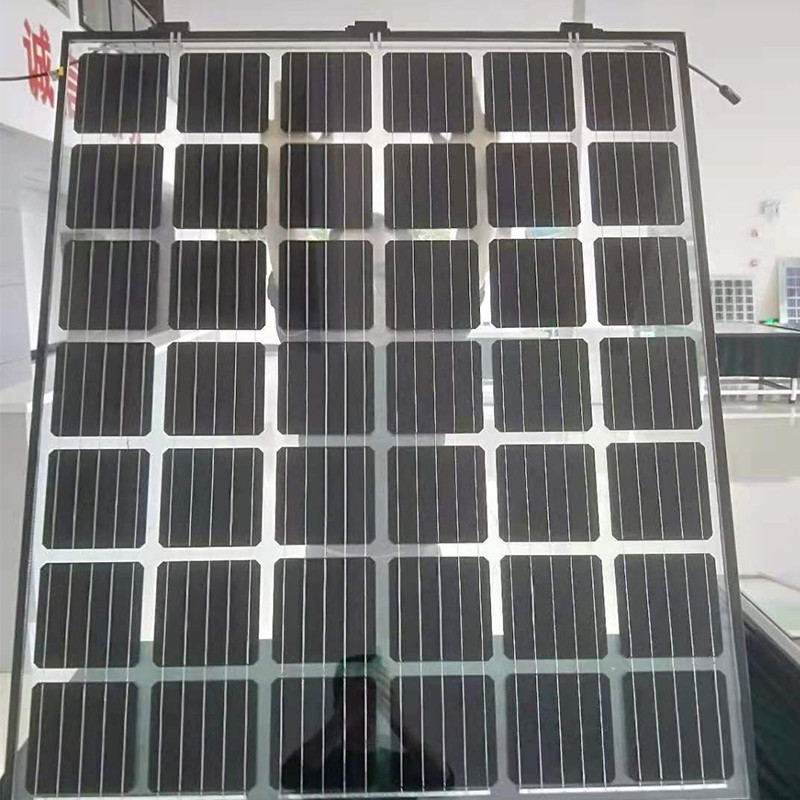

Transparent Solar Panels

No PID Shadow loss Transparent Solar Panels With High Temperature Performance 0No PID Shadow loss Transparent Solar Panels With High Temperature Performance 1No PID Shadow loss Transparent Solar Panels With High Temperature Performance 2

Main features

1. Lower cost, excellent weak light effect.

2. Induce astigmatism/reflected light.

3. Generate electricity even in rainy and cloudy days.

4. Better high temperature performance, the total generating capacity is higher.

5. No raw material limation, can be manufactured in mass, higher VOC.

6. Less degradation, over 20 years' life time.


Performance parameters

amorphous thin film solar panel / 80W
Type RXJP3–ABS80

Electricity

Performance



Wp

Peak Power Output (W)

80Wp

Vmp

Maximum Power Voltage (V)

99.2 V

Imp

Maximum Power Current

0.81 A

Isc

Short Circuit Current(A)

1.0 A

Voc

Open Circuit Voltage(V)

132.9V
Max system voltage 1000V

Mechanical

Performance



Working Temperature -40-85℃
Front cover 3.2mm thin film solar cell
Back cover 4mm float glass

Solar panel

Temperature

Coefficient



Power TK(Pm) -0.21%/℃
Open Circuit Voltage TK(VOC) -0.28%/℃
Short Circuit Current TK(ISC) +0.04%/℃
Dimension(mm) 1300*1100*7.8
Module weight(kg) 27KG
