345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells

China Wuhan Rixin Technology Co., Ltd. certification
China Wuhan Rixin Technology Co., Ltd. certification
I'm Online Chat Now

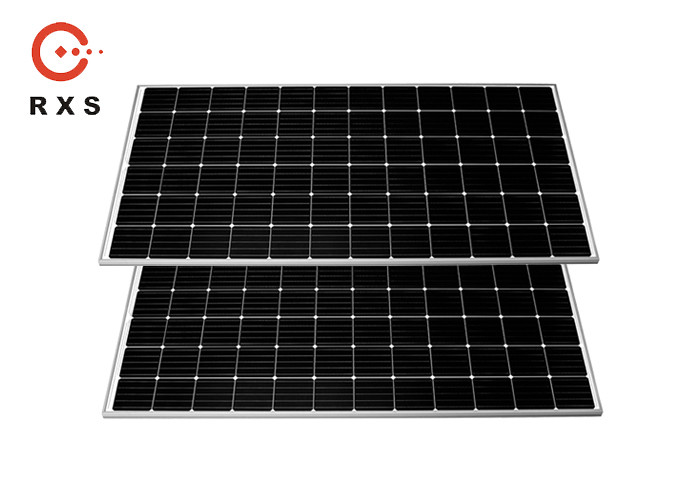

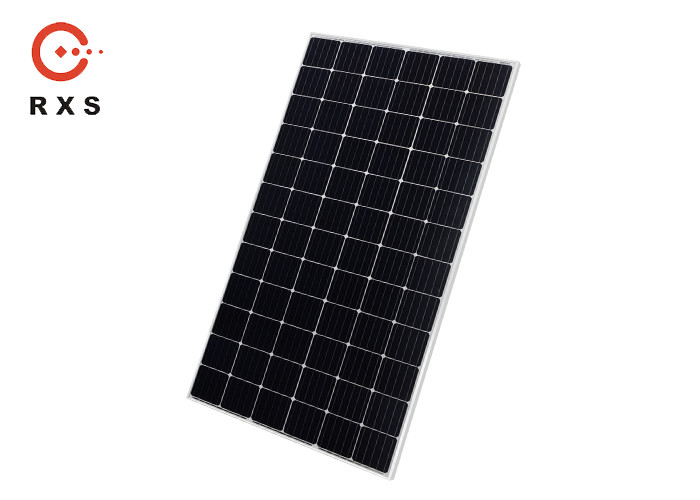

345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells

345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells
345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells 345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells 345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells

Large Image :  345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells

Product Details:
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DBG345
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: 25pcs/carton, 22cartons/40HQ,550pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Detailed Product Description
Power: 345W Dimension: 1956*992*40mm
Efficiency: 17.67% Life Span: 25 Years
High Light:

solar cell module

,

solar panel module

            monocrystalline framed solar panel / 345W / 72cells / 24V




Electrical performance parameters of monocrystalline framed solar panel

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBG345
Maximum power (Pm/Wp) 345
Maximum power voltage (Vmp/V) 38.55
Maximum power current (Imp/A) 8.95
Open circuit voltage (Voc/V) 47.0
Short circuit current (Isc/A) 9.67
Module efficiency (%) 17.67
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1956*992*40/45
Cell dimension(mm) 156.75*156.75 mono
Module weight (kg) 23
Cable cable section-4mm2 length-900mm
Cell Nos & array 72(6*12)
Packing 25/23pcs/pallet, 22pallets/40HQ, 550/506pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free

Efficiency
1. Low voltage-temperature coefficient allows higher solar power output at high-temperature condition.
2. High efficient, high reliable photovoltaic solar cells ensure our product output stability.


Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

Drawing(mm)
345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells 1345 Watt Photovoltaic Solar Panels Monocrystalline 1956*992*40mm With 72 Cells 2
