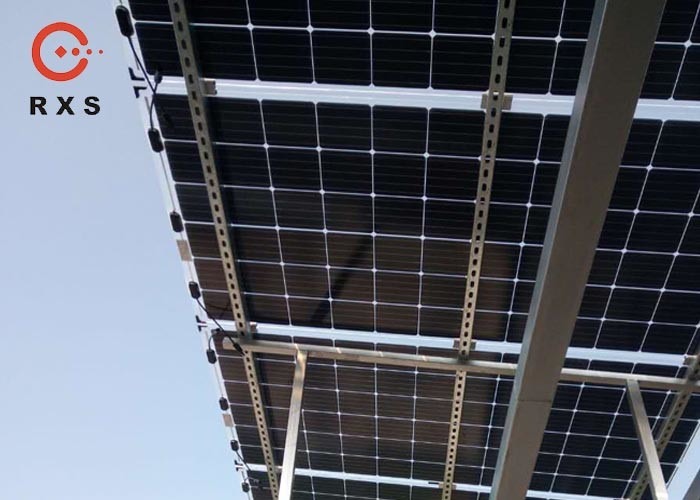

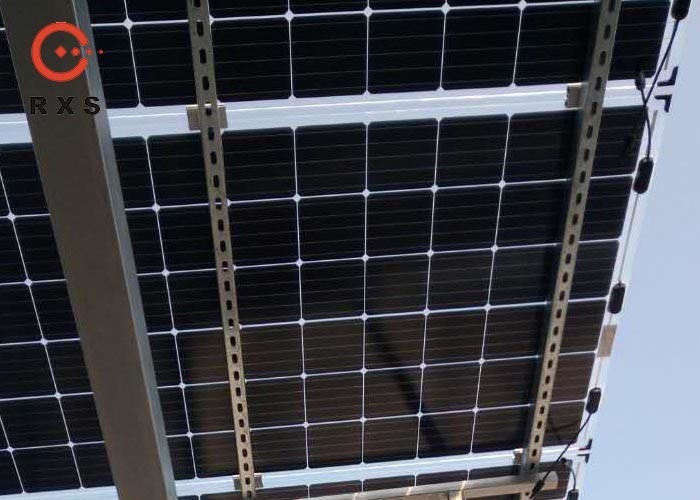

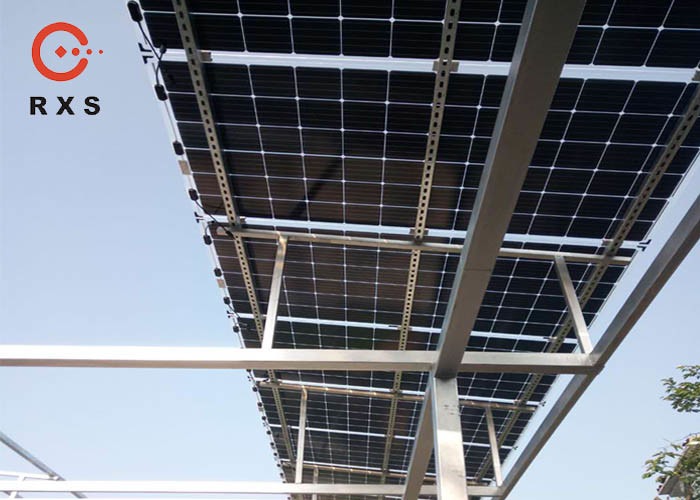

N type monocrystalline bifacial dual glass solar panel / 380W / 72cells / 24V
1. High power output
30 year linear performance warranty, more than 30% additional power gain.
2. Zero LID & PID
No LID, more power generation.
No PID, stable power generation.
3. Fire safety performance
Higher fire safety class to minimize fire risks.
4. Outstanding module performance
Higher power output, even under low light conditions.
Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.
5. Wider applications & more flexible installed angle
No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.
Electrical performance parameters
|N type monocrystalline bifacial dual glass solar panel / 380W / 72cells / 24V|
|Electrical performance parameters|
|Test condition: irradiance=(1+0.1BiFi)1000W/m2, ambient temperature=25℃, AM=1.5|
|Maximum power (Pm/Wp)||380|
|Maximum power voltage (Vmp/V)||37.3|
|Maximum power current (Imp/A)||10.19|
|Open circuit voltage (Voc/V)||46.1|
|Short circuit current (Isc/A)||10.76|
|Module efficiency (%)||19.4|
|Electrical performance parameters (NOCT)|
|NOCT: irradiance=(1+0.1BiFi)800W/m2, ambient temperature=20℃, AM=1.5, wind speed=1m/s|
|Maximum power (Pm/Wp)||283|
|Maximum power voltage (Vmp/V)||34.40|
|Maximum power current (Imp/A)||8.21|
|Open circuit voltage (Voc/V)||42.9|
|Short circuit current (Isc/A)||8.68|
General performance parameters
|Mechanical performance parameters|
|Cell Nos & array||72 (6*12)|
|Junction box||IP68, split|
|Cable||4mm2, 300mm, length custom|
|Dimension (L*W*H) (mm)||1974*992*6 (junction box thickness 23mm)|
|Packing||30pcs/carton, 22cartons/40HQ, 660pcs/40HQ|
|Temperature coefficient (STC)|
|Temperature coefficient of Voc||-0.300%/℃|
|Temperature coefficient of Isc||+0.048%/℃|
|Temperature coefficient of Pm||-0.380%/℃|
|Working temperature range (℃)||-40~+85|
|Power tolerance (W)||0~+5|
|Maximum system voltage (V)||DC1500|
|System maximum protection current (A)||15|
|Front/rear static loads(Pa)||5400/2400|
|Hot spot||100% hot spot free|
1) High quality, strictly quality inspection during production and whole inspection before package
2) Hundreds of standard designs can be available and supplied
3) Simple and easy installation
4) High brightness and hardness
5) Strong coated adhesion
6) Anti-scratch, smoothness
10-year materials&workmanship warranty
30-year linear power warranty
