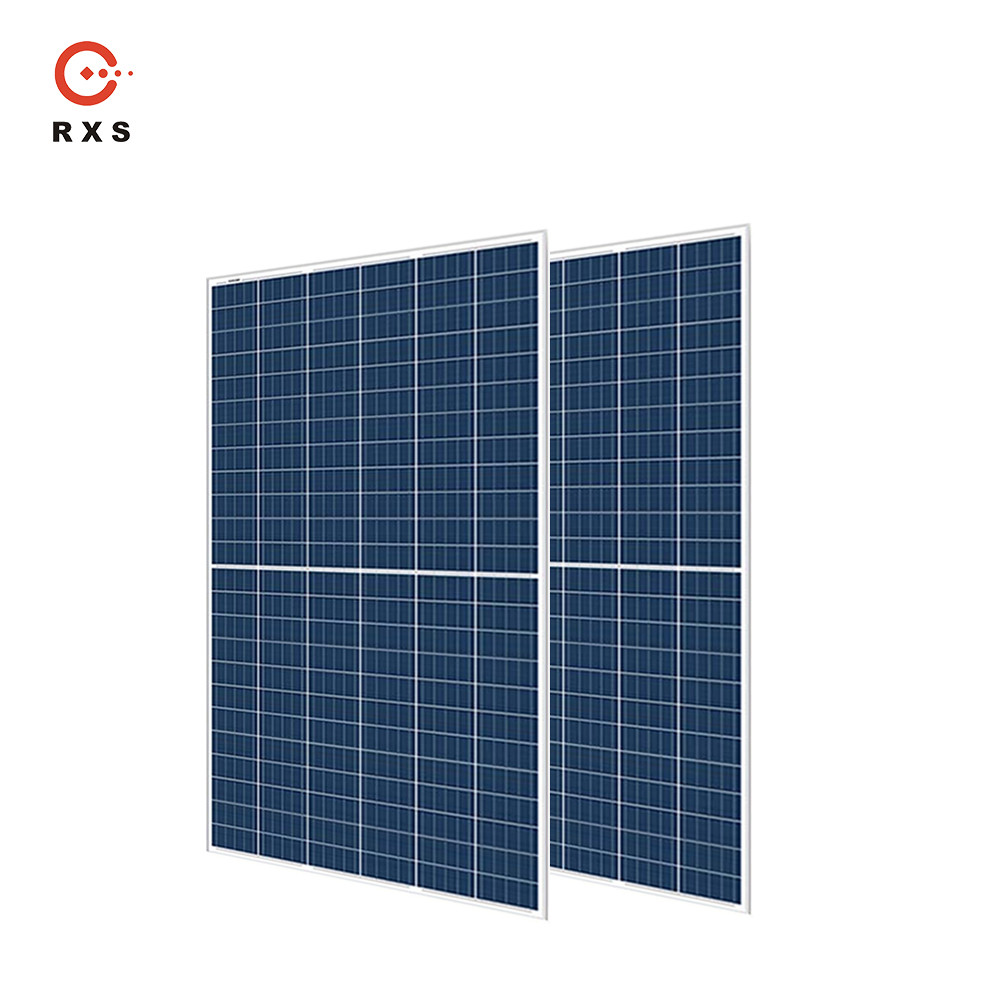

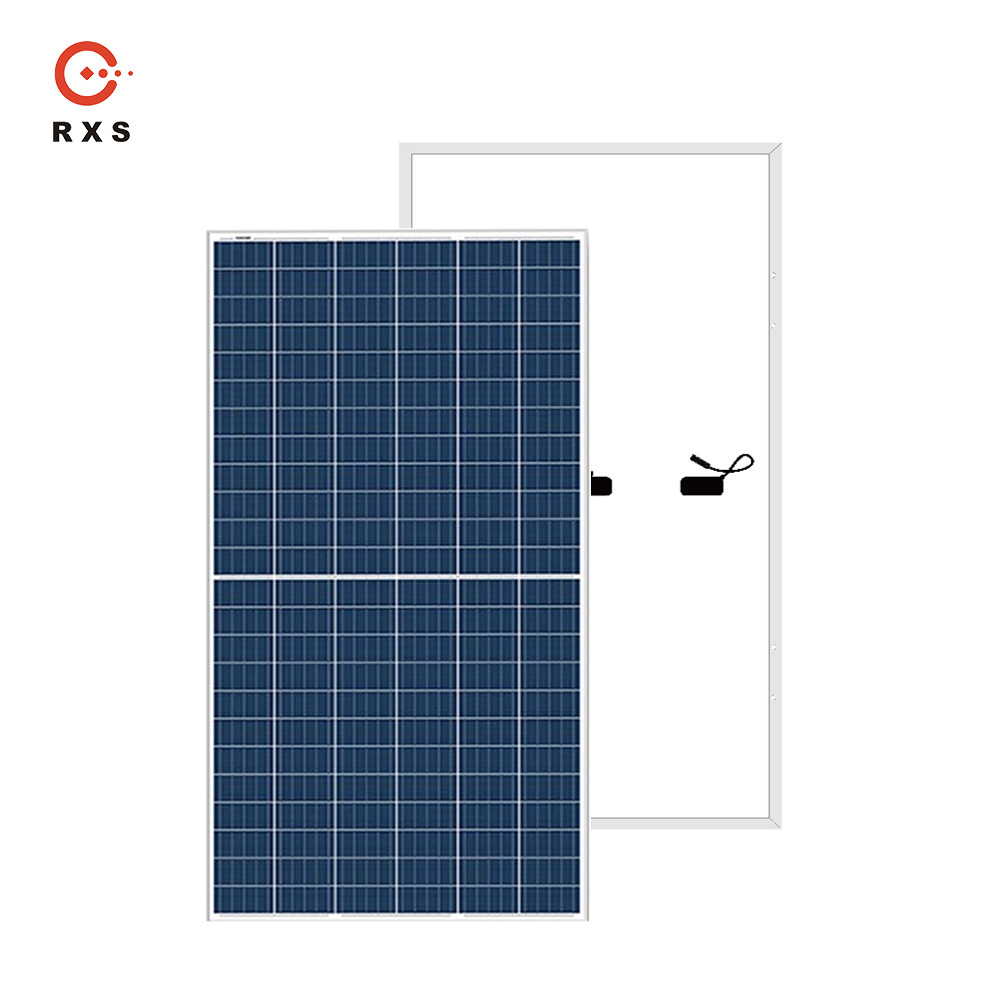

Rixin Newest Technology Polycrystalline PV Module 320w 330w 340w 72 cells Solar Panel
Characteristics solar panel
1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)
2. High efficiency crystalline silicon solar cells
3. High transmission Iow iron tempered glass, strong mechanical resistance
4. Anti-ageing EVA and excellent anti-climate back sheet
5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6. Standard waterproof junction box
7. High endurance to different weather
8. Good and friendly package with less transportation and storage space.
|Electrical performance parameters|
|Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5|
|Maximum power voltage(Vmp/V)||37.0||37.1||37.2|
|Maximum power current(lmp/V)||8.90||9.03||9.14|
|Open circuit voltage(Voc/V)||45.0||45.1||45.2|
|Short circuit current(Isc/A)||9.98||10.08||10.18|
|Temperature coefficient of Voc||-0.31%/℃|
|Temperature coefficient of Isc||0.05%/℃|
|Temperature coefficient of Pm||-0.41%/℃|
|Mechanical performance parameters|
|Module dimension (L*W*H)(mm)||2015*996*35|
|Module weight (kg)||28|
|Cable||4mm2 negetive300mm, positive300mm|
|Junction box/Connector||Ip68,split / MC4 compatible|
|Cell size (mm)||Poly half cell 144(6*12*2)|
|Module working temperature range (℃)||-40~+85|
|Maximum system voltage(V)||1500DC|
|System maximum protection current(A)||15|
|Maximum wind pressure/maximum snow pressure (Pa)||2400/5400|
1). High Conversion Efficiency Solar Panels’ Cells are laminated with TPT and EVA and encapsulated with Low-iron tempered glass ensuring longer life and maximum performance
2). Anti-aging EVA, high resistant TPT to laminate and stronger anodized aluminum alloy frame
3). Strong aluminum frame withstand heavier snow load and higher wind-pressure by passing mechanical load test 2400Pa ~5400Pa ,
4). Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load ;
5). Ip65 Junction box with Built-in diodes prevents reverse charging and keep excellent protection ;
6). Rigorous quality control meet the highest international standards and classification of modules
7). Advanced photovoltaic technologies is resistant to atmospheric exposure and effects of delaminating;
8). The exterior design and electrical performance of each every module are fully tested to guarantee superior quality of 25years lifespan .
Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become great PV companies in terms of its scale and the leading expertise in China.
We use top-quality solar cells and EVA, TPT, strengthen glass, seal silicone etc. Our experienced staffs work together well to assurance quality under effective ISO system, CE, to assure our quality Our products are exported to Europe, America and Asian countries with safety certificates.
Our value is coordination, innovation, sincerity, service. We will make unremitting efforts to be your great partner on your path of the photovoltaic wealth.
