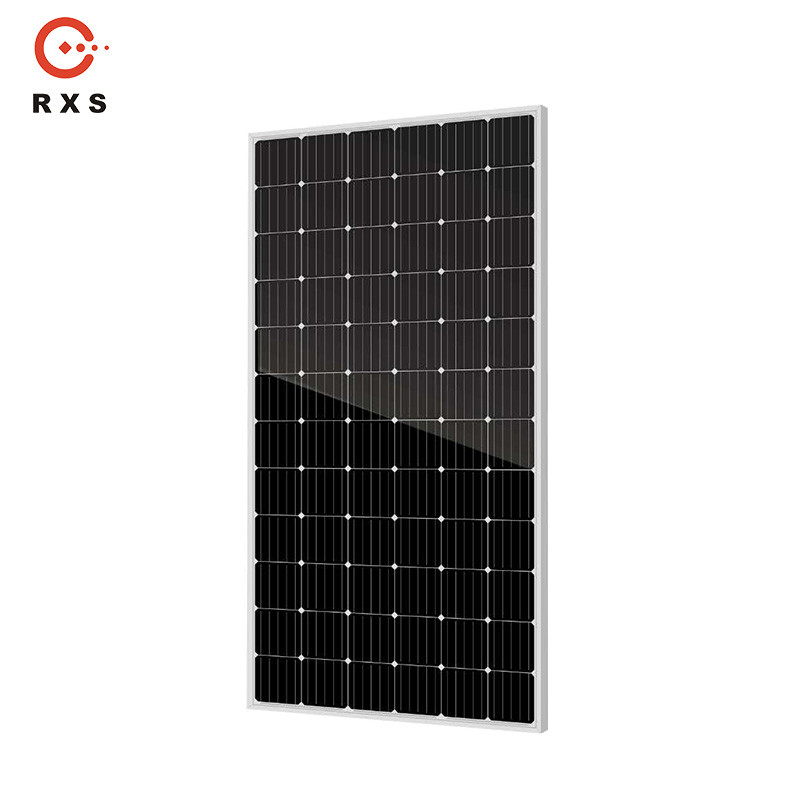

Aluminum Alloy Frame Mono Standard Solar Panel
620pcs/HQ
MOQ
negotiations
Price
Aluminum Alloy Frame Mono Standard Solar Panel
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rixin
Certification: CE TUV IEC
Model Number: DBG550
High Light:

530w Mono Standard Solar Panel

,

Aluminum Alloy Frame 530w Solar Panel

,

Bifacial Double Glass Module

Payment & Shipping Terms
Packaging Details: In Pallet or wooden case
Delivery Time: 7-10 DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500WM/YEAR
Specifications
Maximum Power(Pm/Wp): 550
Maximum Power Voltage(Vmp/V): 42.54
Maximum Power Current(lmp/V): 12.93
Open Circuit Voltage(Voc/V): 50.34
Module Efficient(%): 21.22
Cell Nos & Array: Mono Half-cut Cells 144 Pcs
Cell Size (mm): 182*91 Half Cell
Product Description

Mono Standard Solar Panel Bifacial Double Glass Module 530w 550watt With Alaminum Alloy Frame

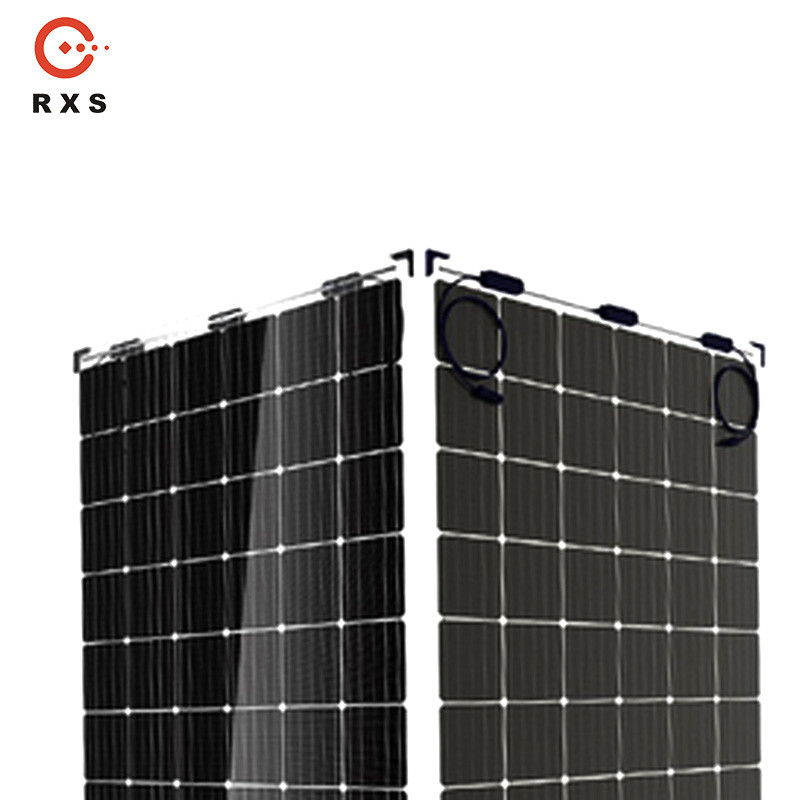

Mono Bifacial Double Glass Module DDG(P)550(k)



Model DDG(P)550(k)
Maximum power(Pm/Wp) 550
Maximum power voltage(Vmp/V) 42.54
Maximum power current(lmp/V) 12.93
Open circuit voltage(Voc/V) 50.34
Short circuit current(Isc/A) 13.68
Module efficient(%) 21.22

Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5



Mechanical performance parameters

Cell Nos & array Mono half-cut cells 144 pcs
Cell size (mm) 182*91
Glass thickness (mm) 2.0
Frame Anodized alaminum alloy
Cable 4m㎡ negetive300mm, positive300mm
Module weight (kg) 32.1
Module dimension (L*W*H)(mm) 2285*1134*35mm
Packing 31pcs/pallet



Quality parameters

Module working temperature range (℃) -40~ +85
Power tolerance(W) 0~+5
Maximum system voltage(V) DC1500
System maximum protection current(A) 25
NOCT(℃) 45±2
Front/rear static loads(Pa) 2400 / 5400

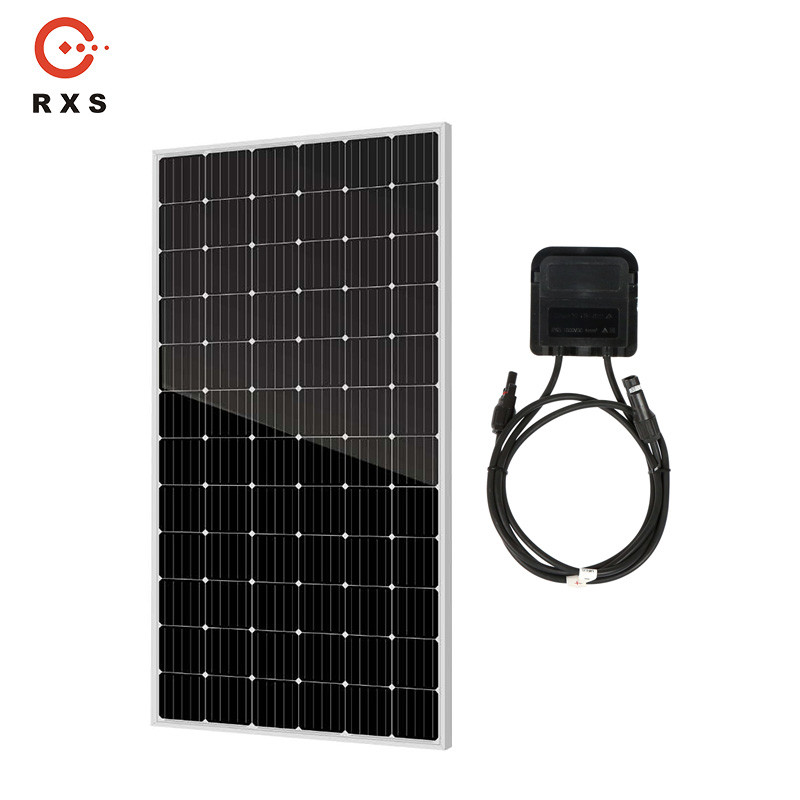

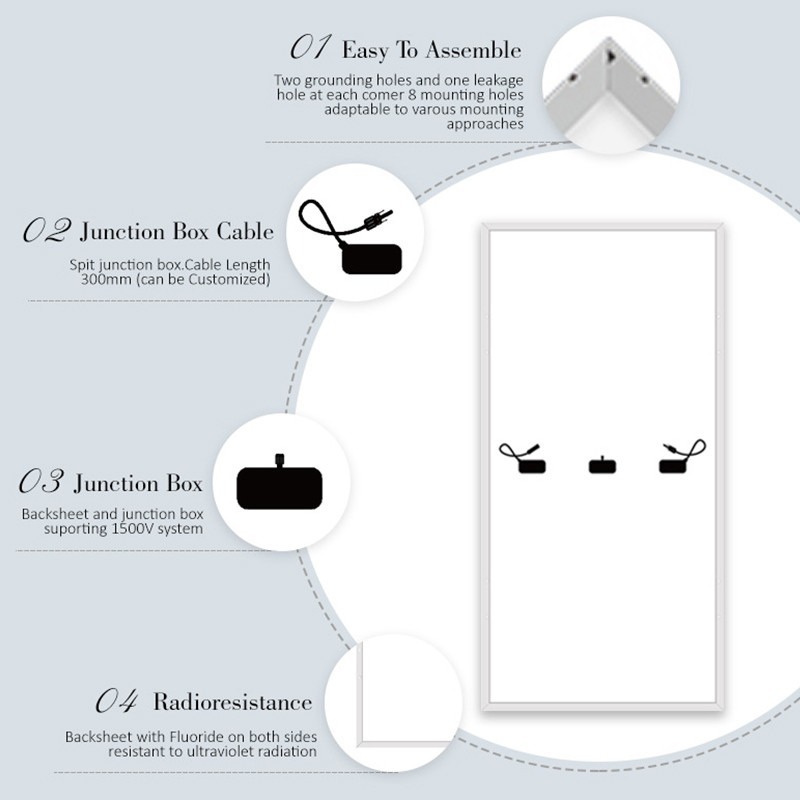

Junction box/Connector Ip68,split / MC4 compatible



Temperaturecoefficient(STC)

Temperature coefficient of Voc -0.3%/℃
Temperature coefficient of Isc +0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5



Quality warranty

12-year material & workmanship warranty

30-year linear power warranty

Aluminum Alloy Frame Mono Standard Solar Panel 0

Aluminum Alloy Frame Mono Standard Solar Panel 1

RFQ

Q1 : What about delivery time?

A : Goods : 10-15 working days usually.

Q2 : Can you provide OEM service?

A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

Q3 : Do you test the goods before shipment ?

A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

Q4 : What about the quality warranty?

A : 12-year material & workmanship warranty.

  1. year linear power warranty.

Q5: What is you payment terms?

A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

Q6 :What is your products’ advantage?

A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.

Aluminum Alloy Frame Mono Standard Solar Panel 2

Self-branded

Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.





Certificate standard

Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
