Fast Charging Solar Electric Charging Stations For Energy Efficient Vehicles
1SET
MOQ
Negotiable
Price
Fast Charging Solar Electric Charging Stations For Energy Efficient Vehicles
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: RXC
High Light:

solar power charging station

,

solar powered electric vehicle charging station

Payment & Shipping Terms
Packaging Details: cartons/wooden cases
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power(each Parking): Abt. 3.0KWp(3.5m*5.2m)
Height: 2.5m~4m
Charging Post: AC 16A/32A; DC 0~750V
Direction: Horizontal/vertical
Product Name: Solar Car Charging Station
Size: Customizable Size
Product Description

Fast Charging Solar Car Charging Station For Energy - Efficient Vehicles



Performance parameters

Installation place industry park, outdoor of supermarket, shopping mall, citizen housing area
Installation angle 5°or 10°or 15°
Height 2.5m~4m
Wind load 42m/s
Snow Load 1.4kN/m2
Span 3.5m~6m
Power of each parking abt. 3KWp (3.5m*5.2m)
Solar Panel double glass solar panel
Direction Horizontal/ vertical
Material Anodized aluminum alloy
Warranty 10 years
Charging post A/C 16A/32A
D/C 0~750V

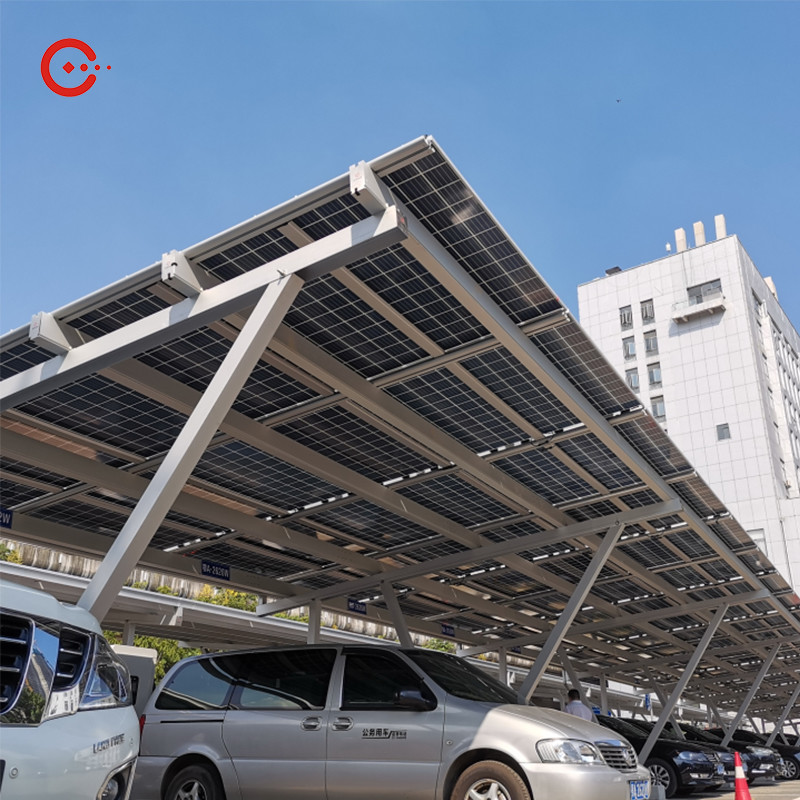

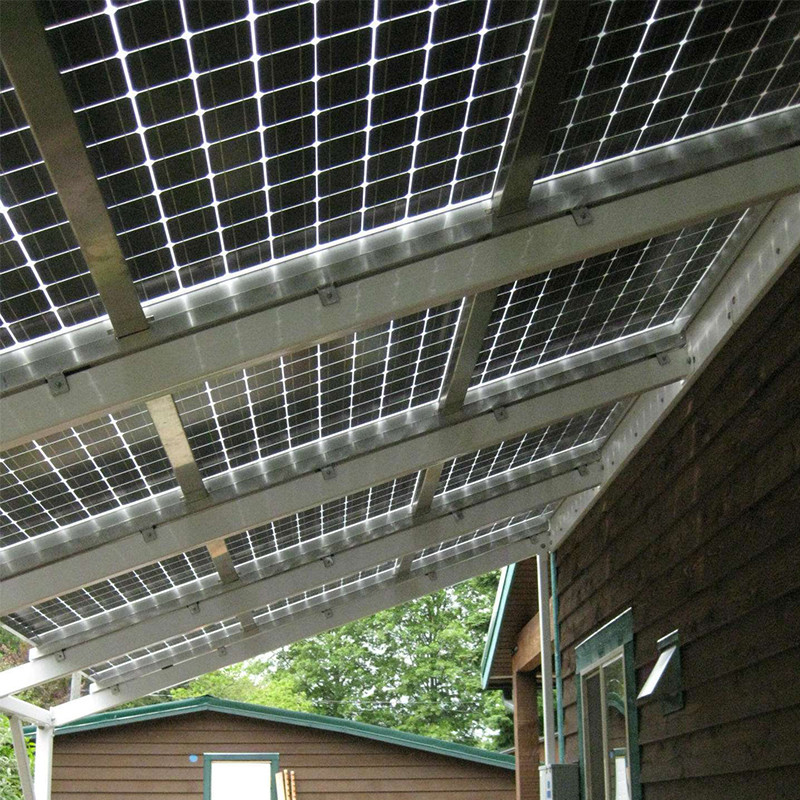

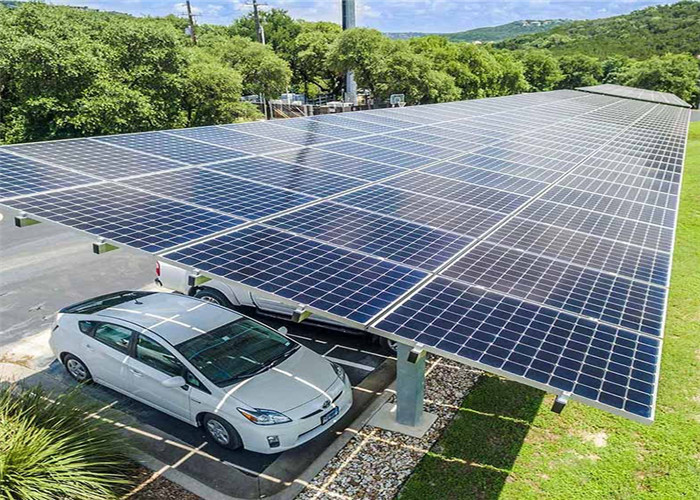

Rixin solar car parking shed/new energy car charging station, this product is designed for supplying rechargeable electronic car with safe and controllable A/C energy. Full recharging station includes Solar panels, parking shed structure, Converter, Storage and BMS system, LED lighting, Smart recharging Post, recharging administration system. Our products can be deployed citizen housing area, shopping mall, high way service station, road parking side.


Main Features



BIPV Unify Design

Solar charging station charges new energy car with solar energy, environmental friendly, parking, sunshade, shed roof could generate electricity, saves earth resource, High grade, nice outlook.



Standard Module Structure

Standard parking place design, compatible with existing parking place, fully mechanic joint, easy installation, solid and good corrosion resistance.



Smart charging control

BMS smart recharging administration system
