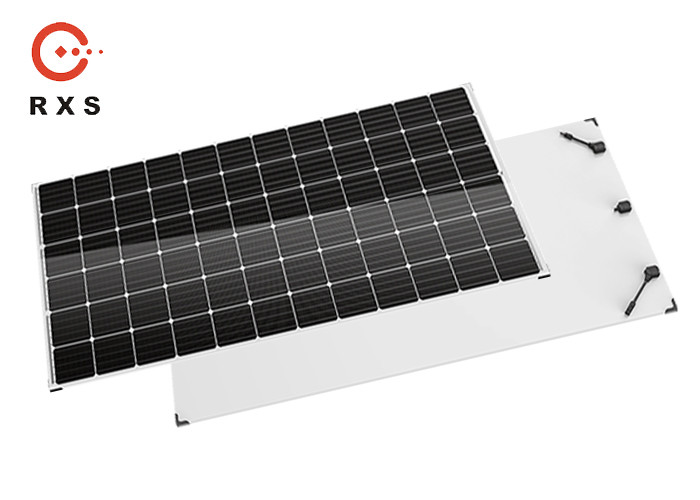

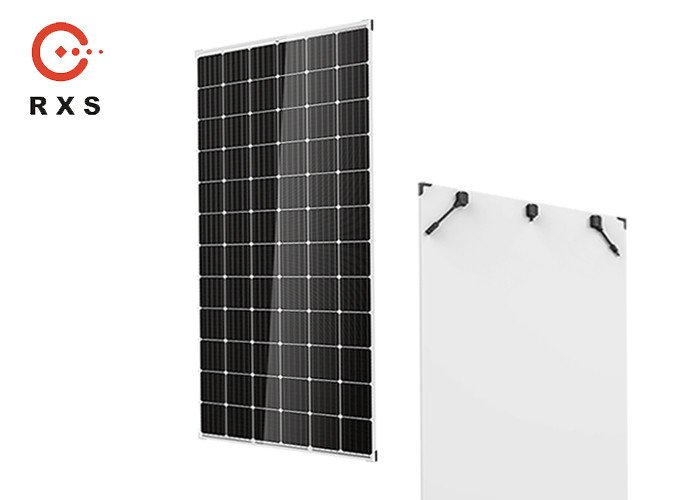

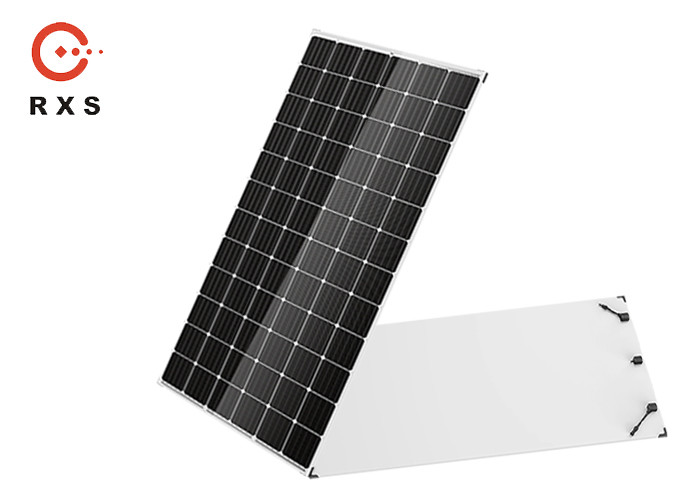

Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / white
The solar modules consist of solar cells in series and parallel, and are made of tempered glass, EVA and TPT back sheet. The aluminum alloy frame is installed around the periphery, which has the characteristics of strong wind resistance, high hail resistance and convenient installation. Widely used in solar lighting, lighting, household power supply, highway transportation, construction and photovoltaic power stations.
Main Features
1. Positive power tolerance(0~+5W) guranteed.
2. High module conversion efficiency, slower power degradation, enabled by rear passivation PERC technology.
3. Better energy yield with excellent low irradiance performance and temperature coefficient.
4. Glass/glass ensures 30 year product life span, with annual power degradation<0.5%.
5. Fire safety Class A.
6. Adaptable to harsh enviroment.
Electrical performance parameters
| Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / white | |
| Electrical performance parameters | |
| STC (AM1.5, 1000W/m², cell temperature 25℃) | |
| Model | DDG365(P)(W) |
| Maximum power (Pm/Wp) | 365 |
| Maximum power voltage (Vmp/V) | 39.3 |
| Maximum power current (Imp/A) | 9.29 |
| Open circuit voltage (Voc/V) | 48.0 |
| Short circuit current (Isc/A) | 9.74 |
| Module efficiency (%) | 18.7 |
General performance parameters
| Mechanical Performance Parameters | |
| Cell Nos & array | 72(6*12) |
| Diode Nos | 3 |
| Junction box | IP68, split/MC4 compatible |
| Cable | 4mm2/negative 150mm, positive 300mm |
| Module weight (kg) | 28 |
| Module dimension (L*W*H) (mm) | 1968*992*6 |
| Packing | 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ |
| Quality parameters | |
| Module working temperature range (℃) | -40~+85 |
| Power tolerance (W) | 0~+5 |
| Maximum system voltage (V Dc) | 1500DC |
| System maximum protection current (A) | 15 |
| Normal operating cell temperature (NOCT) | 45±2℃ |
| Maximum wind loads/maximum snow loads (Pa) | 2400/5400 |
| Hot spot | 100% hot spot free |
| Temperature coefficient (STC) | |
| Temperature coefficient of Voc | -0.30%/℃ |
| Temperature coefficient of Isc | 0.059%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
Drawing(mm)
Quality Warranty
10-year materials&workmanship warranty
30-year linear power warranty
