Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID
1PC
MOQ
Negotiable
Price
Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG(N)390
High Light:

n type solar cell

,

n type silicon solar cell

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 390W
Dimension: 1974*992*6mm
Efficiency: 19.90%
Life Span: 30 Years
Name: Solar Panels
Product Description

    Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID



This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power . At the same time charging battery. This is very suit for home use.



• Advanced technology, professional manufacture, and excellent quality solar panels /solar energy /solar power .

• High solar enegy solar power conversion efficiency, low solar panel price

• Anti-reflective and high viscous EVA

• High light transmission Anti-reflective glass

• 10-12 years solar power warranty, 25 years limited solar power warranty.

• Strong productive ability and quick delivery .



Electrical performance parameters

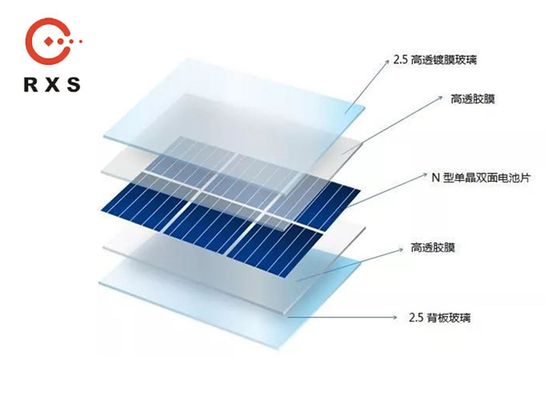

N type monocrystalline bifacial dual glass solar panel / 390W / 72cells / 24V
Electrical performance parameters
Test condition: irradiance=(1+0.1BiFi)1000W/m2, ambient temperature=25℃, AM=1.5
Model DDG(N)390
Maximum power (Pm/Wp) 390
Maximum power voltage (Vmp/V) 37.5
Maximum power current (Imp/A) 10.40
Open circuit voltage (Voc/V) 46.60
Short circuit current (Isc/A) 10.92
Module efficiency (%) 19.9
Electrical performance parameters (NOCT)
NOCT: irradiance=(1+0.1BiFi)800W/m2, ambient temperature=20℃, AM=1.5, wind speed=1m/s
Maximum power (Pm/Wp) 290
Maximum power voltage (Vmp/V) 34.60
Maximum power current (Imp/A) 8.39
Open circuit voltage (Voc/V) 43.40
Short circuit current (Isc/A) 8.81



General performance parameters

Mechanical performance parameters
Cell Nos & array 72 (6*12)
Diode Nos 3
Junction box IP68, split
Cable 4mm2, 300mm, length custom
Weight(kg) 28
Dimension (L*W*H) (mm) 1974*992*6 (junction box thickness 23mm)
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Temperature coefficient (STC)
Temperature coefficient of Voc -0.300%/℃
Temperature coefficient of Isc +0.048%/℃
Temperature coefficient of Pm -0.380%/℃
Quality parameters
Working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V) DC1500
System maximum protection current (A) 15
NOCT(℃) 45±2℃
Front/rear static loads(Pa) 5400/2400
Bifacial factor ≥85%
Hot spot 100% hot spot free




Main Features

1. High power output

30 year linear performance warranty, more than 30% additional power gain.



2. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.



3. Fire safety performance

Higher fire safety class to minimize fire risks.



4. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.



5. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.






Drawing(mm)

Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID 1Rixin High Power Output Standard Solar Panel Waterproof Frames PV Module With No LID 2
