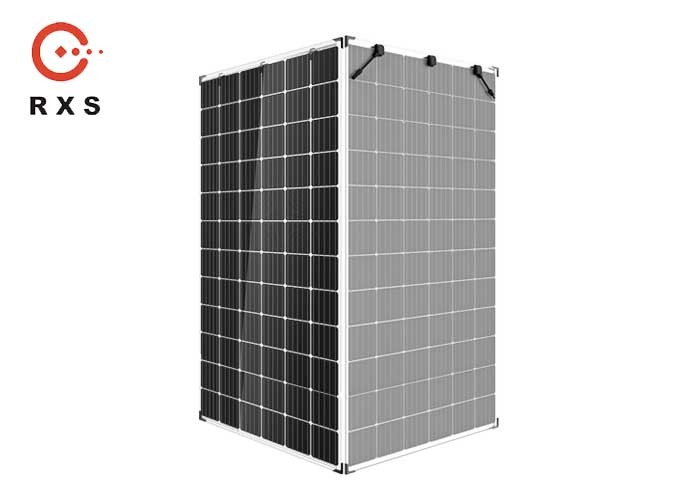

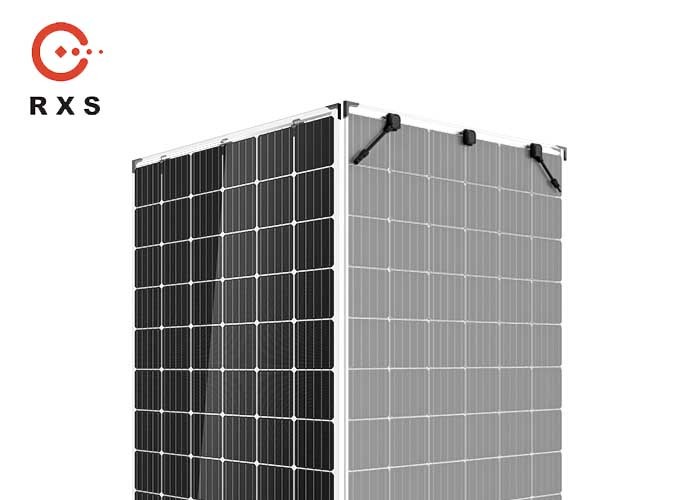

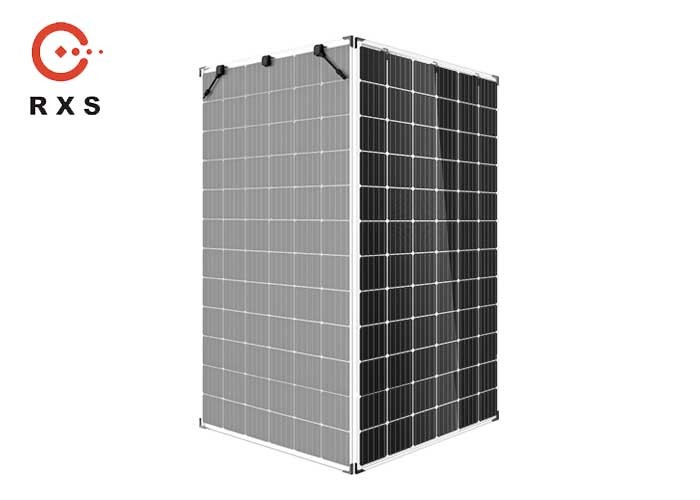

365 Watt Double Glass PV Modules High Power Generation For Battery Charging
1PC
MOQ
Negotiable
Price
365 Watt Double Glass PV Modules High Power Generation For Battery Charging
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG365(P)
High Light:

double glass solar modules

,

dual glass solar module

Payment & Shipping Terms
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 365W
Dimension: 1968*992*6mm
Efficiency: 18.70%
Life Span: 30 Years
Product Description

          Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / transparent


High efficiency solar cells with isotropic etched surface; Low reverse current, high shunting resistance and dependability; Proper handling from incoming inspection through production, outgoing inspection and package;100% checked for reverse current and visual appearance; small light-induced degradation; Calibration by Fraunhofer ISE;PID. Excellent mechanical load resistance: certified to withsand highwind loads(2400Pa) and snow loads(5400Pa); High salt and ammonia resistance certified by TUV Nord.



Electrical performance parameters

Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / transparent
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DDG365(P)
Maximum power (Pm/Wp) 365
Maximum power voltage (Vmp/V) 39.3
Maximum power current (Imp/A) 9.29
Open circuit voltage (Voc/V) 48.0
Short circuit current (Isc/A) 9.74
Module efficiency (%) 18.7



General performance parameters

Mechanical Performance Parameters
Cell Nos & array 72(6*12)
Diode Nos 3
Junction box IP68, split/MC4 compatible
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 28
Module dimension (L*W*H) (mm) 1968*992*6
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.39%/℃

Main Features

1. Positive power tolerance(0~+5W) guranteed.

2. High module conversion efficiency, slower power degradation, enabled by rear passivation PERC technology.

3. Better energy yield with excellent low irradiance performance and temperature coefficient.

4. Glass/glass ensures 30 year product life span, with annual power degradation<0.5%.

5. Fire safety Class A.

6. Adaptable to harsh enviroment.

Drawing(mm)

365 Watt Double Glass PV Modules High Power Generation For Battery Charging 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

365 Watt Double Glass PV Modules High Power Generation For Battery Charging 1365 Watt Double Glass PV Modules High Power Generation For Battery Charging 2
