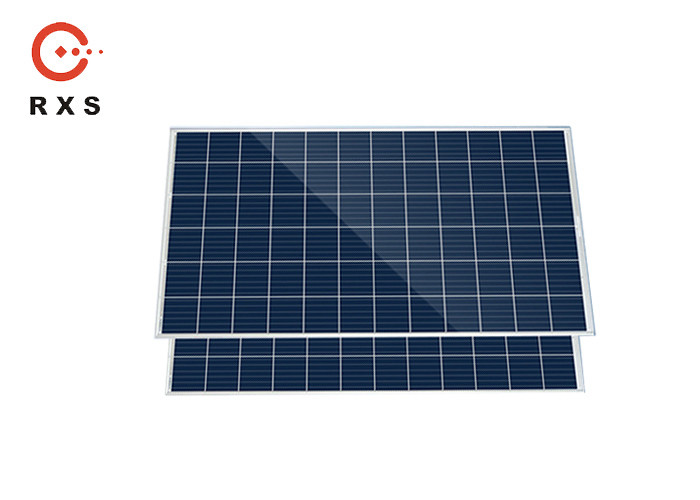

Low LID Polycrystalline PV Module 320W 72 Cells With 25 Years Lifespan
1PC
MOQ
Negotiable
Price
Low LID Polycrystalline PV Module 320W 72 Cells With 25 Years Lifespan
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: MBG320
High Light:

polycrystalline solar module

,

polycrystalline silicon solar panels

Payment & Shipping Terms
Packaging Details: 25pcs/carton, 22cartons/40HQ,550pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Specifications
Power: 320W
Dimension: 1956*992*40mm
Efficiency: 16.40%
Life Span: 25 Years
Product Description

            Polycrystalline Framed Solar Panel / 320W / 72cells / 24V


Polycrystalline or Monocrystalline silicon is a material consisting of thin wafers that are cut from a silicon crystal which has grown in several directions. This advanced texturing process provides polycrystalline or moncrystalline solar panels with a higher power output than amorphous panels of the same dimensions, and makes them more cost and space-effective. These individual wafers are assembled into panels that are covered by durable, weatherproof tempered glass. Thanks to their efficiency and durability, these solar panels require virtually no maintenance once installed.


Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model MBG320
Maximum power (Pm/Wp) 320
Maximum power voltage (Vmp/V) 37.36
Maximum power current (Imp/A) 8.57
Open circuit voltage (Voc/V) 45.33
Short circuit current (Isc/A) 9.34
Module efficiency (%) 16.4
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1956*992*40/45
Cell dimension(mm) 156.75*156.75 poly
Module weight (kg) 23
Cable cable section-4mm2 length-900mm
Cell Nos & array 72(6*12)
Packing 25/23pcs/pallet, 22pallets/40HQ, 550/506pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free




Drawing(mm)
Low LID Polycrystalline PV Module 320W 72 Cells With 25 Years Lifespan 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

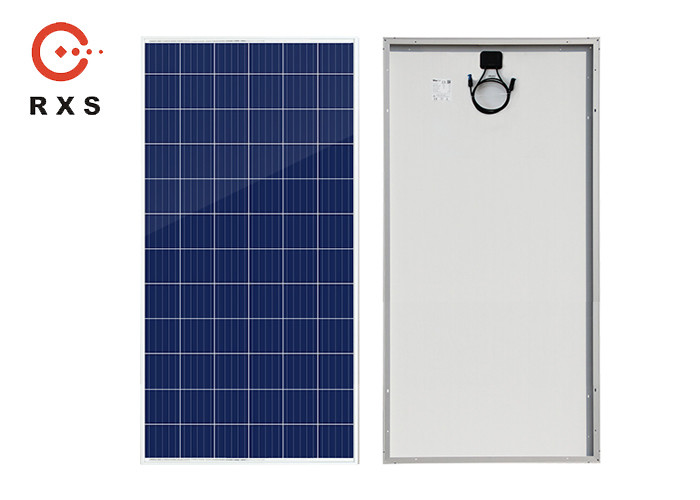

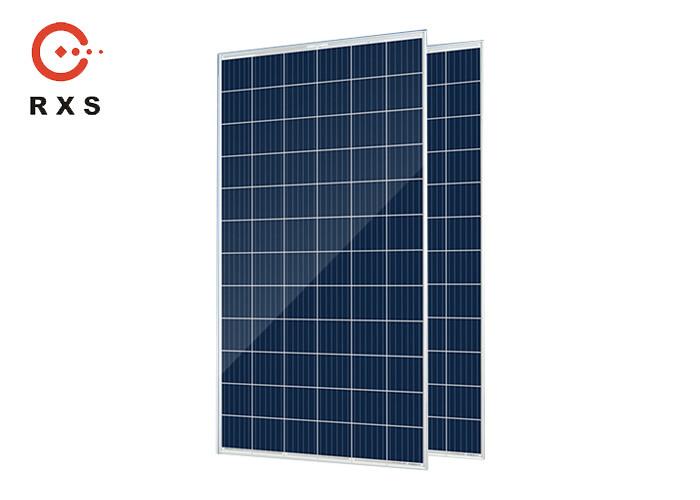

Low LID Polycrystalline PV Module 320W 72 Cells With 25 Years Lifespan 1Low LID Polycrystalline PV Module 320W 72 Cells With 25 Years Lifespan 2
