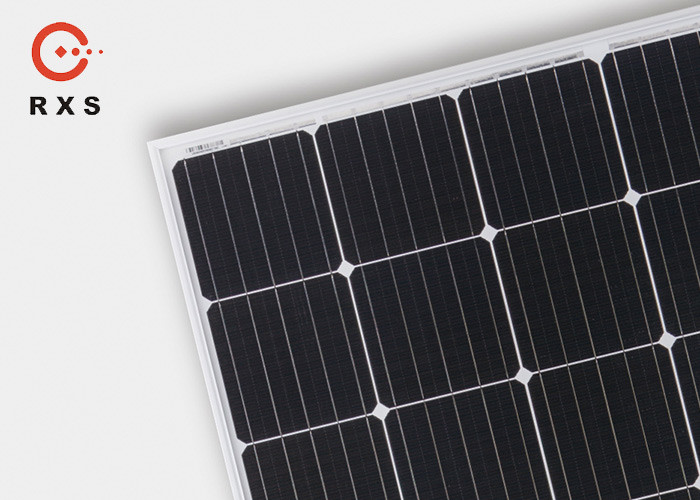

Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells

China Wuhan Rixin Technology Co., Ltd. certification
China Wuhan Rixin Technology Co., Ltd. certification
I'm Online Chat Now

Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells

Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells
Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells

Large Image :  Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells

Product Details:
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DBM285
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Detailed Product Description
Power: 285W Dimension: 1650*992*35mm
Efficiency: 17.32% Life Span: 25 Years
High Light:

perc solar panels

,

bifacial solar panels

            monocrystalline framed solar panel / 285W / 60 cells / 20V
The solar modules consist of solar cells in series and parallel, and are made of tempered glass, EVA and TPT back sheet. The aluminum alloy frame is installed around the periphery, which has the characteristics of strong wind resistance, high hail resistance and convenient installation. Widely used in solar lighting, lighting, household power supply, highway transportation, construction and photovoltaic power stations.
Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.


Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBM285
Maximum power (Pm/Wp) 285
Maximum power voltage (Vmp/V) 31.95
Maximum power current (Imp/A) 8.92
Open circuit voltage (Voc/V) 38.8
Short circuit current (Isc/A) 9.64
Module efficiency (%) 17.32
Normal operating cell temperature (NOCT) 45.3±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance (W) 0~+5



General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1650*992*35
Cell dimension(mm) 156.75*156.75 mono
Module weight (kg) 19

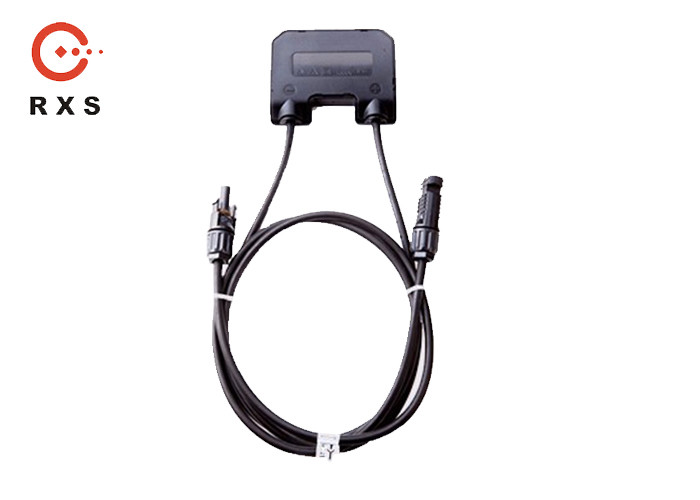

Cable cable section-4mm2 length-900mm
Cell Nos & array 60(6*10)
Packing 30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free



Drawing(mm)
Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells 0

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty

Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells 1Monocrystalline PERC PV Module 285 Watt Easy Installation With 60 Cells 2
