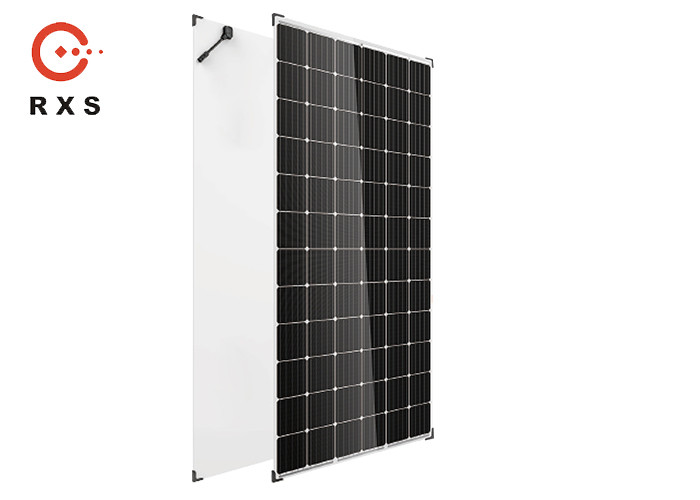

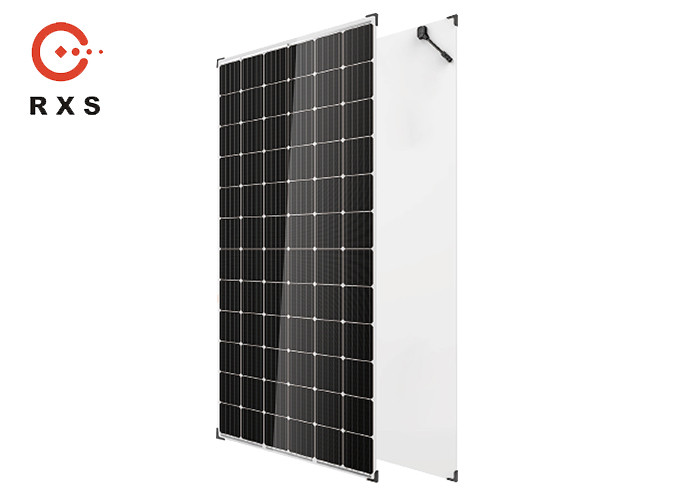

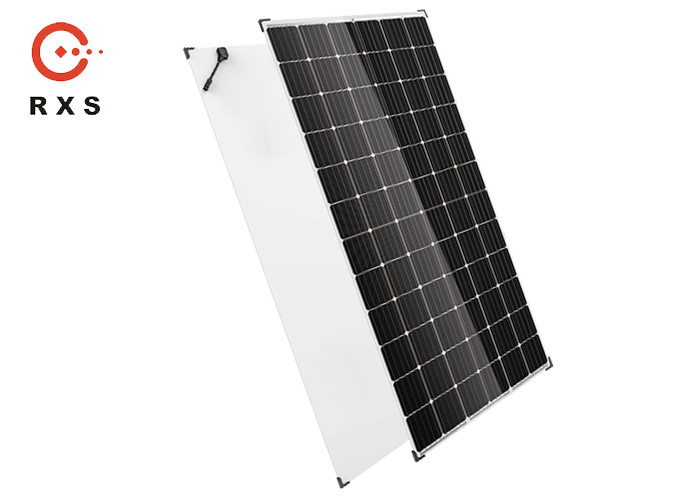

Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System

China Wuhan Rixin Technology Co., Ltd. certification
China Wuhan Rixin Technology Co., Ltd. certification
I'm Online Chat Now

Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System

Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System
Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System

Large Image :  Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System

Product Details:
Place of Origin: Wuhan, China
Brand Name: Rixin
Certification: TUV, CE, ISO9001, ISO14001, OHSAS18000
Model Number: DDG365(P)(W)
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 500MW/year
Detailed Product Description
Power: 365W Dimension: 1968*992*6mm
Efficiency: 18.70% Life Span: 30 Years
High Light:

dual glass solar panels

,

dual glass solar module

          Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / white



Main Features

Aesthetic appearance with excellent efficiency based on innovative

photovoltaic technologies

Strong frame, passing mechanical load test of 5400Pa, instead of the normal

2400Pa,to withstand heavier snow load and higher wind-pressure

Unique frame design, high mechanical strength, and easy Installation.

Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions

Electrical performance parameters

Perc monocrystalline dual glass solar panel / 365W / 72cells / 24V / white
Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DDG365(P)(W)
Maximum power (Pm/Wp) 365
Maximum power voltage (Vmp/V) 39.3
Maximum power current (Imp/A) 9.29
Open circuit voltage (Voc/V) 48.0
Short circuit current (Isc/A) 9.74
Module efficiency (%) 18.7



General performance parameters

Mechanical Performance Parameters
Cell Nos & array 72(6*12)
Diode Nos 3
Junction box IP68, split/MC4 compatible
Cable 4mm2/negative 150mm, positive 300mm
Module weight (kg) 28
Module dimension (L*W*H) (mm) 1968*992*6
Packing 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V Dc) 1500DC
System maximum protection current (A) 15
Normal operating cell temperature (NOCT) 45±2℃
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot spot 100% hot spot free
Temperature coefficient (STC)
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.39%/℃



Drawing(mm)

Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System 0



Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System 1Monocrystalline Double Glass PV Modules 365 Watt For Solar Energy Home System 2
