High transmittance 24.52% Customizable BIPV Solar Panels Polycrystalline Silicon PV Panel
Self-branded
Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.
Competitive products
High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Professional Team
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.

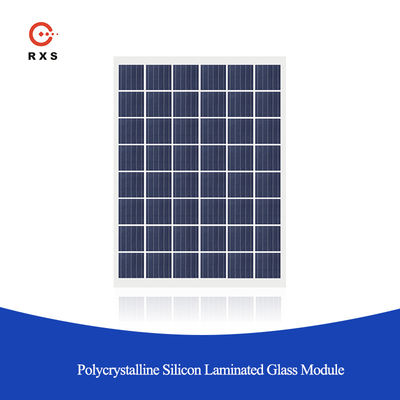

| Product name | Polycrystalline Silicon Laminated Glass Module | |
| Type | RXJJ-MDN210 | |
| Electrical parameters | Maximum power (Pm/Wp)* | 210 |
| Power tolerance (%) | ±5 | |
| Maximum power voltage (Vmp/V)* | 24.78 | |
| Maximum power voltage ( Imp/A)* | 8.48 | |
| Open circuit voltage (Voc/V)* | 30 | |
| Short circuit current (Isc/A)* | 9.35 | |
| Module efficiency ηc(%)* | 13.6 | |
| Maximum system voltage(V) | 1500 | |
| Working temperature(℃) | -40～85 | |
| Temperature coefficient of Pm | -0.41%/℃ | |
| Temperature coefficient of Voc | -0.31%/℃ | |
| Temperature coefficient of Isc | +0.05%/℃ | |
| Mechanical parameters | Fault structure(mm) | 5 Low iron tempered glass+0.76PVB+polycrystalline silicon cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced) |
| Cable | 4mm2/900mm | |
| Module dimension (L*W*H)(mm) | 1460mm*1060mm*11mm | |
| Module Weight (kg) | 40kg | |
| Wind resistance | 2.4kN/m2 | |
